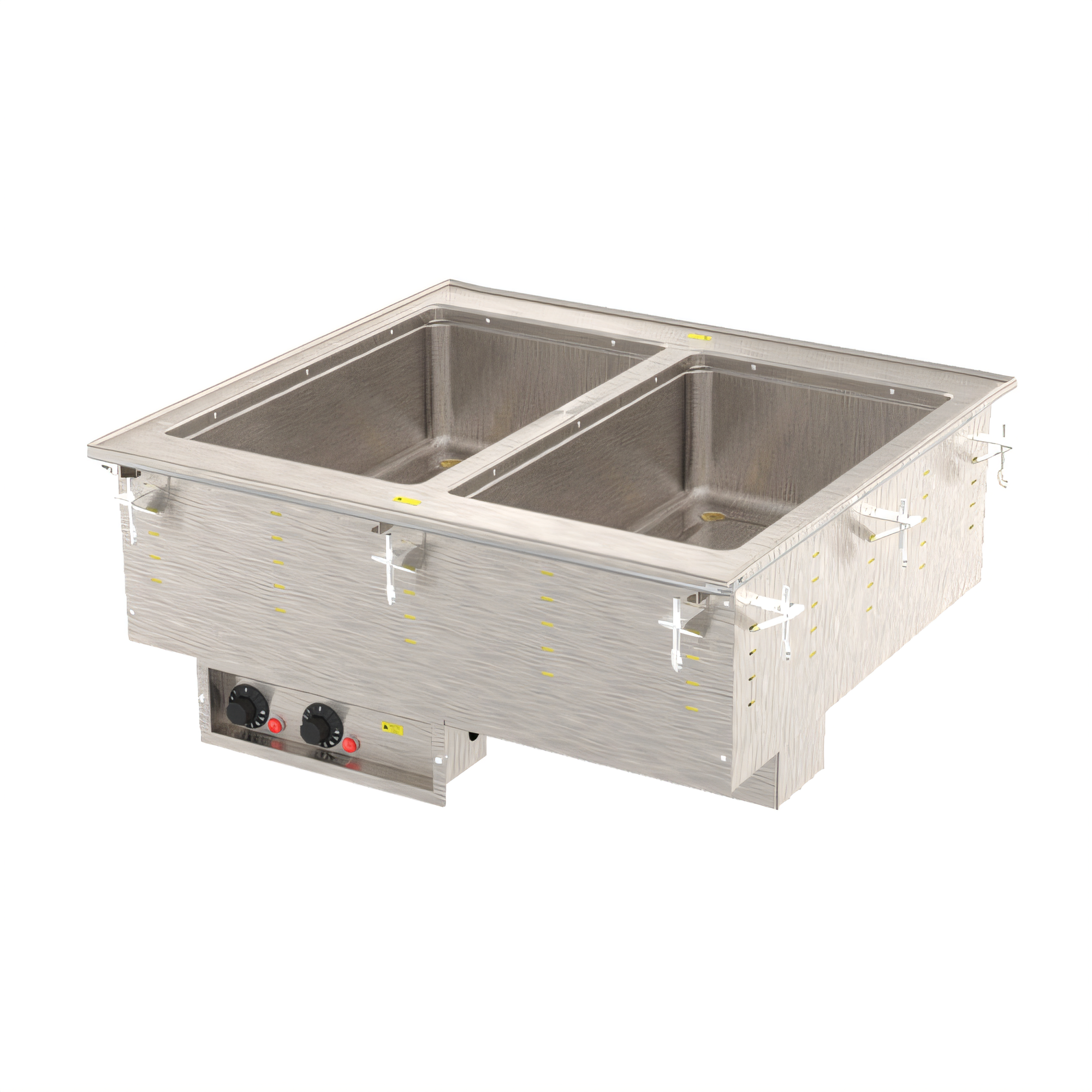

Vollrath 3640080HD Steam Tables & Food Wells
Product Description
This heavy-duty, two-well drop-in electric hot well from Vollrath is designed for the demands of commercial kitchens. Measuring 28-1/4" wide by 26" deep, each 625-watt well maintains safe serving temperatures for soups, sauces, and entrees without the hassle of hard-wiring or frequent refilling. The marine-grade stainless steel construction resists corrosion, and the integral auto-fill system ensures consistent water levels. Individual thermostats provide precise temperature control for each well.
Key Features:
- The unit has two independent 12" x 20" wells made of 20-gauge 316 marine-grade stainless steel for excellent corrosion resistance.
- It is designed for wet operation only and comes with a factory-installed auto-fill system that maintains the optimal water level automatically.
- The unit has individual thermostatic controls with power indicator lights on a remote stainless panel, which is connected by a 4-foot tether for flexible mounting.
- The full-perimeter drip-free flange contains condensation and spills.
- It has a 1-inch copper manifold drain with a master shut-off valve, plus 1/2-inch ball valves at each well for quick and mess-free draining.
- The top is made of 18-gauge stainless steel, and the exterior housing is fully insulated stainless steel.
- The unit comes ready to plug in, with a 6-foot cord and NEMA 6-15P plug, and it draws only 6 amps at 208 volts (no hard wiring required).
- It can accommodate full-size or fractional steam pans up to 6 inches deep, and adapter bars are provided for fractional pans.
- The unit includes mounting and positioning clips for counters up to 3 inches (7.6 cm) thick, allowing for a zero-clearance installation.
- The unit is NSF 4 and cULus listed, and it is made in the USA.
Product Specs
| Specification | Value |
|---|---|
| Wells / Capacity | (2) full-size 12" × 20" pans, 6" max depth |
| Construction | 316 marine-grade stainless wells (20 ga); 18 ga stainless top & housing |
| Operation | Wet only – auto-fill water system |
| Controls | (2) independent thermostatic knobs with power lights |
| Heating Power | 1 250 W total (625 W per well) |
| Electrical | 208 V / 60 Hz / 1-phase, 6.0 A, 6' cord with NEMA 6-15P |
| Drain | 1" copper manifold, individual ½" ball valves + manifold shut-off |
| Overall Dimensions | 28-1/4" W × 26" D × 21-1/2" H (71.8 × 66 × 54.6 cm) |
| Counter Cut-out | 27-1/2" W × 25-1/4" D (69.9 × 64.1 cm) – 7/8" corner radius required |
| Certifications | NSF 4, cULus |
| Origin / Warranty | Made in USA / 2-year parts & labor (HD wells) See full policy |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 21.5in |
| Width | 28.25in |
| Depth | 26.0in |
| Shipping Weight | 120.0lbs |
| Controls | thermostatic controls |
| Style | individual pans |
| Drain | with drain |
| Construction | stainless steel construction |
| Wet or Dry operation | wet |
| Pan Capacity | (2) full size (12" x 20") |
| Insulated or Non-Insulated | insulated |
| Specifications | Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1250 watts, 208v/60/1-ph, 6.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy) |
