Description

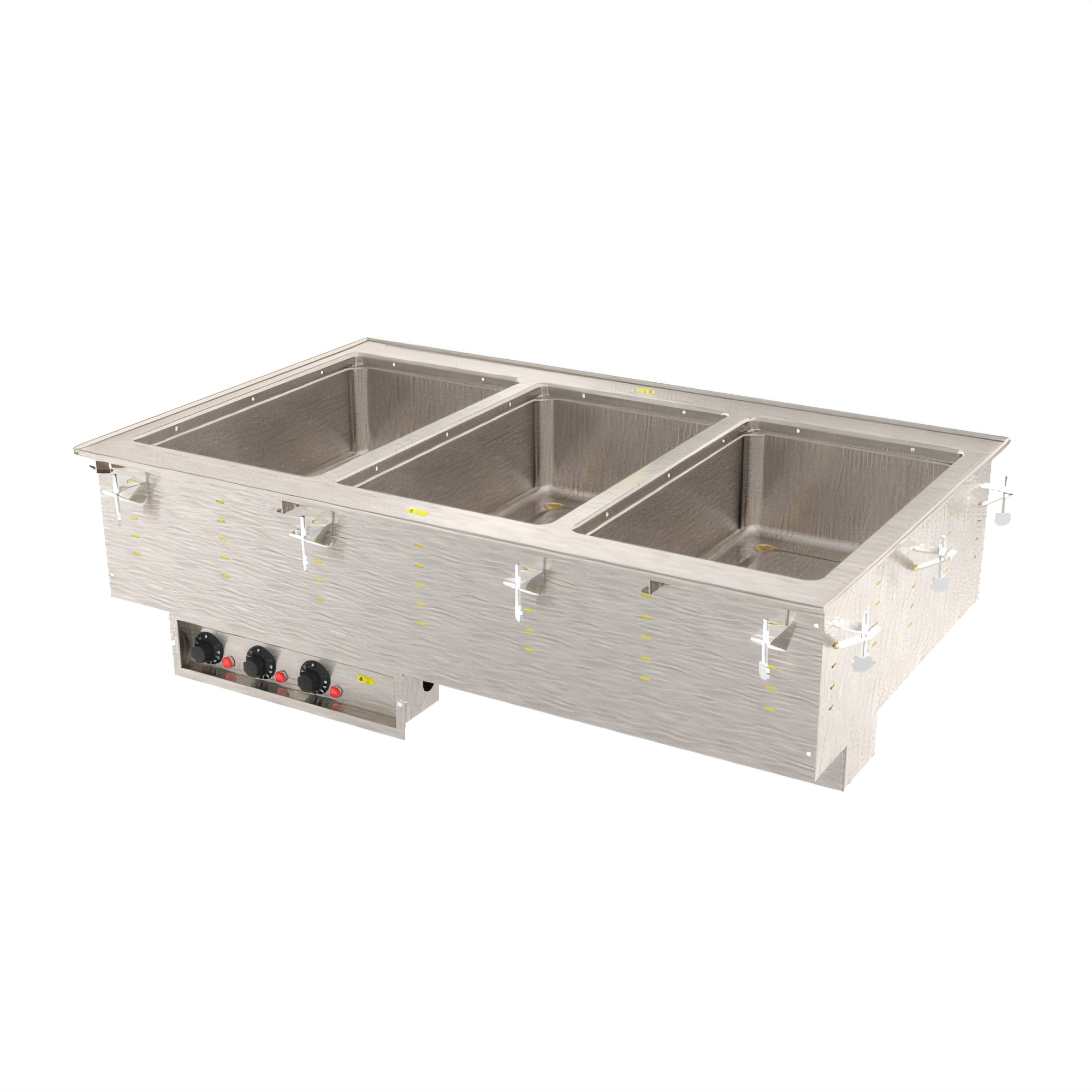

Vollrath 3640571HD Steam Tables & Food Wells
Product Description
Maintain safe serving temperatures for your dishes with Vollrath's premium three-well modular hot drop-in. Crafted from durable marine-grade stainless steel, this wet-operation unit resists corrosion and simplifies cleanup. Its compact design allows for seamless built-in installation with zero clearance. Equipped with thermostatic control, this model (3640571HD) operates on 208-240 V and features a manifold drain for easy maintenance.
Key Features:
- The unit has three individual, insulated full-size wells (12" × 20") that can each produce 1000 W of power, for a total of 3000 W.
- The 20-gauge 316 stainless steel wells have a drip-free flange design to keep the counter surface clean.
- The top and exterior housing are made of 18-gauge stainless steel for long-lasting durability.
- The wet-heat only design provides fast, even heating and meets NSF 4 performance standards.
- Easy-to-read thermostatic controls with power indicator lights are attached to a 4-foot (121.9 cm) tethered panel for flexible mounting.
- The 1-inch copper manifold drain has individual ball-valve shutoffs and a master shutoff, allowing you to empty one pan or the entire unit without making a mess.
- The unit comes with a 6-foot (1.8 m) cord and a NEMA 6-20P plug, so no hard-wiring is required.
- Mounting/positioning clips are included for counters up to 3 inches (7.6 cm) thick.
- The unit is designed for zero-clearance installation, is for indoor use, is NSF and cULus listed, and is made in the USA.
Ideal Applications:
- Buffet and self-service food lines where the surface needs to be durable and easy to clean.
- Quick-service restaurants (QSRs) and fast-casual dining establishments with food preparation stations.
- Commercial kitchens, such as commissaries and those on ships, that require materials highly resistant to corrosion.
- Cafeterias and corporate dining facilities that need a reliable, low-maintenance food service surface.
Product Specs
| Specification | Value |
|---|---|
| Wells | (3) full-size, 12" × 20" pans; 6" (15.2 cm) max depth |
| Construction | 20-ga 316 SS wells, 18-ga SS top, insulated all sides |
| Operation | Wet heat only |
| Controls | Individual thermostatic dial per well, power indicator lights |
| Drain System | 1" copper manifold, individual well shutoffs & master shutoff |
| Overall Dimensions | 41 1/2" W × 26" D × 21 1/2" H (105.4 × 66 × 54.6 cm) |
| Counter Cut-Out | 40 3/4" W × 25 1/4" D (103.5 × 64.1 cm) with 7/8" (2.2 cm) corner radius |
| Electrical | 3000 W, 208-240 V, 60 Hz, 1-ph, 10.8-12.5 A, NEMA 6-20P |
| Cord Length | 6' (1.8 m) |
| Certifications | NSF 4, cULus |
| Country of Origin | USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 21.5in |
| Width | 41.5in |
| Depth | 26.0in |
| Shipping Weight | 124.0lbs |
| Construction | stainless steel construction |
| Style | individual pans |
| Drain | with drain |
| Pan Capacity | (3) full size (12" x 20") |
| Insulated or Non-Insulated | insulated |
| Controls | thermostatic controls |
| Wet or Dry operation | wet |
| Specifications | Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3000 watts, 208-240v/60/1-ph, 10.8-12.5 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy) |
