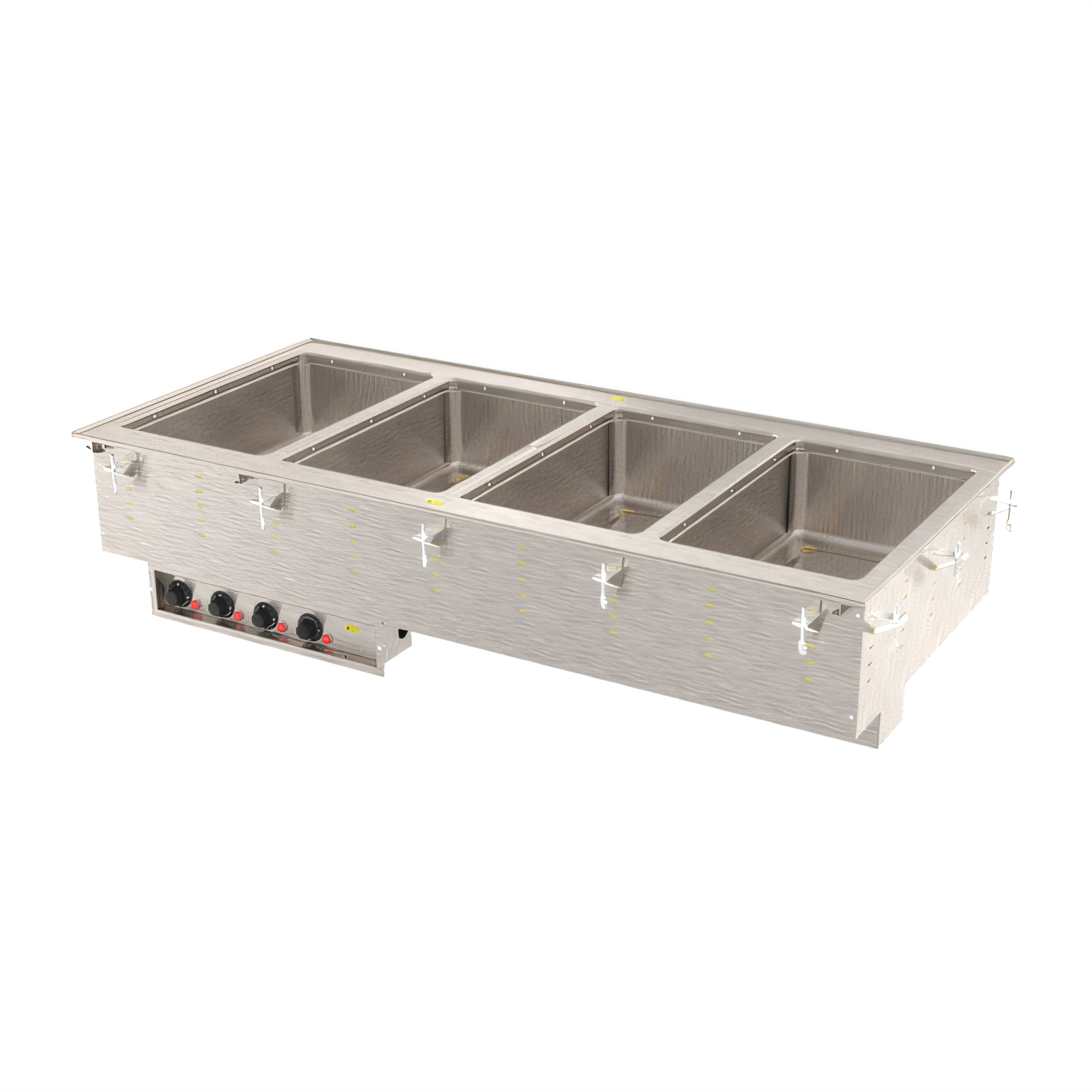

Vollrath 36406HD Steam Tables & Food Wells
Product Description
Model 36406HD | 120 V | 625 W per well (2,500 W total)
This commercial-grade drop-in warmer, made in the USA by Vollrath, is designed for busy kitchens. It keeps four full-size steam-table pans of food hot, fresh, and ready to serve. Each 12" x 20" well is constructed from corrosion-resistant 316 marine-grade stainless steel and individually insulated for maximum energy efficiency. Simply add water, set the infinite controls, and enjoy consistent, precise wet-heat performance all day long.
Why You'll Love It:
- The 12" × 20" wells are made of durable 20-gauge marine-grade 316 stainless steel, which resists salt and harsh chemicals.
- The wet-operation only design delivers gentle, even heat that protects food quality and meets NSF 4 performance standards.
- The individual infinite controls with power lights allow you to dial in the exact holding temperatures for each menu item.
- The drip-free top flange and included gasket create a clean, snag-free counter installation.
- The separate ½" ball-valve drains for each well speed up the end-of-service cleanup process.
- The 6 ft (1.8 m) cord with NEMA 5-30P plug means no hard-wiring is required.
- The zero-clearance body plus the included mounting clips fit counters up to 3" (7.6 cm) thick.
Best For:
- Buffet lines and cafeterias where food needs to be kept warm and easily accessible.
- Grab-and-go service counters where customers can quickly pick up pre-portioned dishes.
- Holding food in the back-of-house before plating and serving.
- Catering stations where a professional, flush presentation of the food is required.
Product Specs
| Specification | Value |
|---|---|
| Wells | (4) full-size, 12" × 20", 6" max pan depth |
| Well Material / Gauge | 316 marine-grade stainless, 20 ga |
| Top & Housing | 18 ga stainless steel top with stainless exterior housing |
| Operation | Wet heat only (water required) |
| Controls | 4 independent infinite switches with power indicator lights (remote panel, 4 ft tether) |
| Total Power | 2,500 W (625 W per well) |
| Electrical | 120 V / 60 Hz / 1-ph, 20.8 A, NEMA 5-30P |
| Overall Dimensions | 54-3/4" W × 26" D × 15" H (139.1 × 66 × 38.1 cm) |
| Counter Cut-Out | 54" W × 25-1/4" D (137.2 × 64.1 cm) with 7/8" corner radius |
| Drains | Individual ½" MPT drains with shut-off valves |
| Certifications | NSF 4 (wet operation), cULus, Made in USA |
| Warranty | 2 years parts & labor (see VollrathFoodservice.com for full policy) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 15.0in |
| Width | 54.75in |
| Depth | 26.0in |
| Shipping Weight | 165.0lbs |
| Style | individual pans |
| Controls | infinite controls |
| Construction | stainless steel construction |
| Pan Capacity | (4) full size (12" x 20") |
| Drain | with drain |
| Wet or Dry operation | wet |
| Insulated or Non-Insulated | insulated |
| Specifications | Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 54-3/4"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 2500 watts, 120v/60/1-ph, 20.8 amps, cord with NEMA 5-30P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy) |
