Description

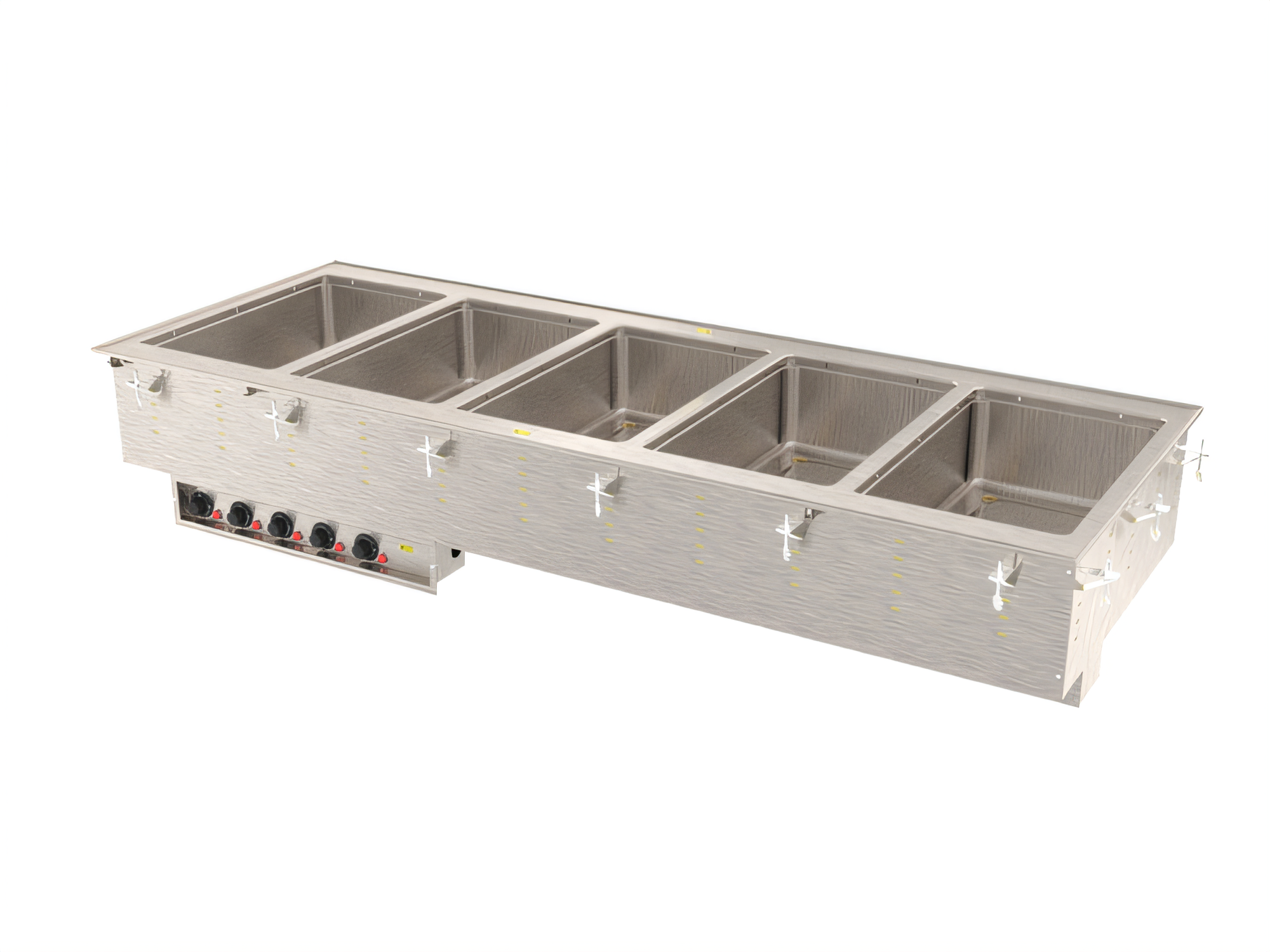

Vollrath 3640861HD Steam Tables & Food Wells
Product Description
This robust Vollrath drop-in unit is built to keep five full-size pans of food piping hot, fresh, and food-safe all day long, even on the busiest serving lines. Featuring marine-grade 316 stainless-steel wells, individual infinite controls, and an automatic water-fill system, this unit delivers dependable performance without any hard-wiring required. Meets NSF 4 performance standards when operated with water.
Why You'll Love It:
- The unit has five independently heated 12" x 20" wells, each with 1,000 W of power, allowing you to precisely hold multiple menu items at the right temperature.
- The marine-grade stainless steel (SAE 316) construction resists corrosion from salt, acidic foods, and harsh cleaning products, ensuring long-lasting durability.
- The auto-fill feature maintains a constant water level, providing even and moist heat without the need for constant monitoring.
- Individual infinite controls with power indicator lights allow you to easily dial in the ideal holding temperature for each well.
- The fully insulated design, including the sides, bottom, and between wells, speeds up heat-up and reduces energy loss.
- The 18-gauge stainless steel top with a supplied gasket creates a clean, flush counter installation, and the drip-free design keeps the area tidy.
- The 1" copper manifold drain with a master shut-off and a 1/2" ball valve on every well makes cleaning the unit a breeze.
- The unit comes with a 6-ft cord and a NEMA 6-30P plug, allowing for a quick and easy installation without the need for an electrician.
- This zero-clearance, USA-made unit is NSF 4 and cULus listed, ensuring it meets the dependable food-service standards.
Pan Capacity:
- The unit can accommodate up to 5 full-size steam table pans that are up to 6 inches (15.2 cm) deep.
- It is also compatible with fractional pans when used with optional adapter bars.
Perfect For:
- Serving food in buffet lines, cafeterias, and all-you-can-eat restaurants
- Providing banquet service in hotels and resorts
- Displaying hot food items in supermarket hot bars and delis
- Use in marine or coastal facilities that require extra protection against corrosion
Product Specs
| Specification | Value |
|---|---|
| Model | 3640801HD |
| Operation | Wet heat only with automatic water fill |
| Controls | (5) infinite-temperature knobs on remote 4 ft control panel |
| Well Construction | 20-ga 316 stainless steel, fully insulated |
| Total Wattage | 5,000 W (1,000 W per well) |
| Electrical | 208–240 V / 60 Hz / 1-ph, 18–20.8 A, NEMA 6-30P plug |
| Overall Dimensions | 68" W × 26" D × 21 ½" H |
| Counter Cutout | 67 ¼" W × 25 ¼" D, 7⁄8" corner radius |
| Drain System | 1" copper manifold w/ master shut-off & individual ½" ball valves |
| Top / Exterior | 18-ga stainless steel top, stainless housing |
| Certifications | NSF 4 (wet operation), cULus |
| Origin | Made in USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 21.5in |
| Width | 68.0in |
| Depth | 26.0in |
| Shipping Weight | 434.0lbs |
| Controls | infinite controls |
| Drain | with drain |
| Pan Capacity | (5) full size (12" x 20") |
| Construction | stainless steel construction |
| Style | individual pans |
| Wet or Dry operation | wet |
| Insulated or Non-Insulated | insulated |
| Specifications | Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 68"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 5000 watts, 208-240v/60/1-ph, 18-20.8 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy) |
