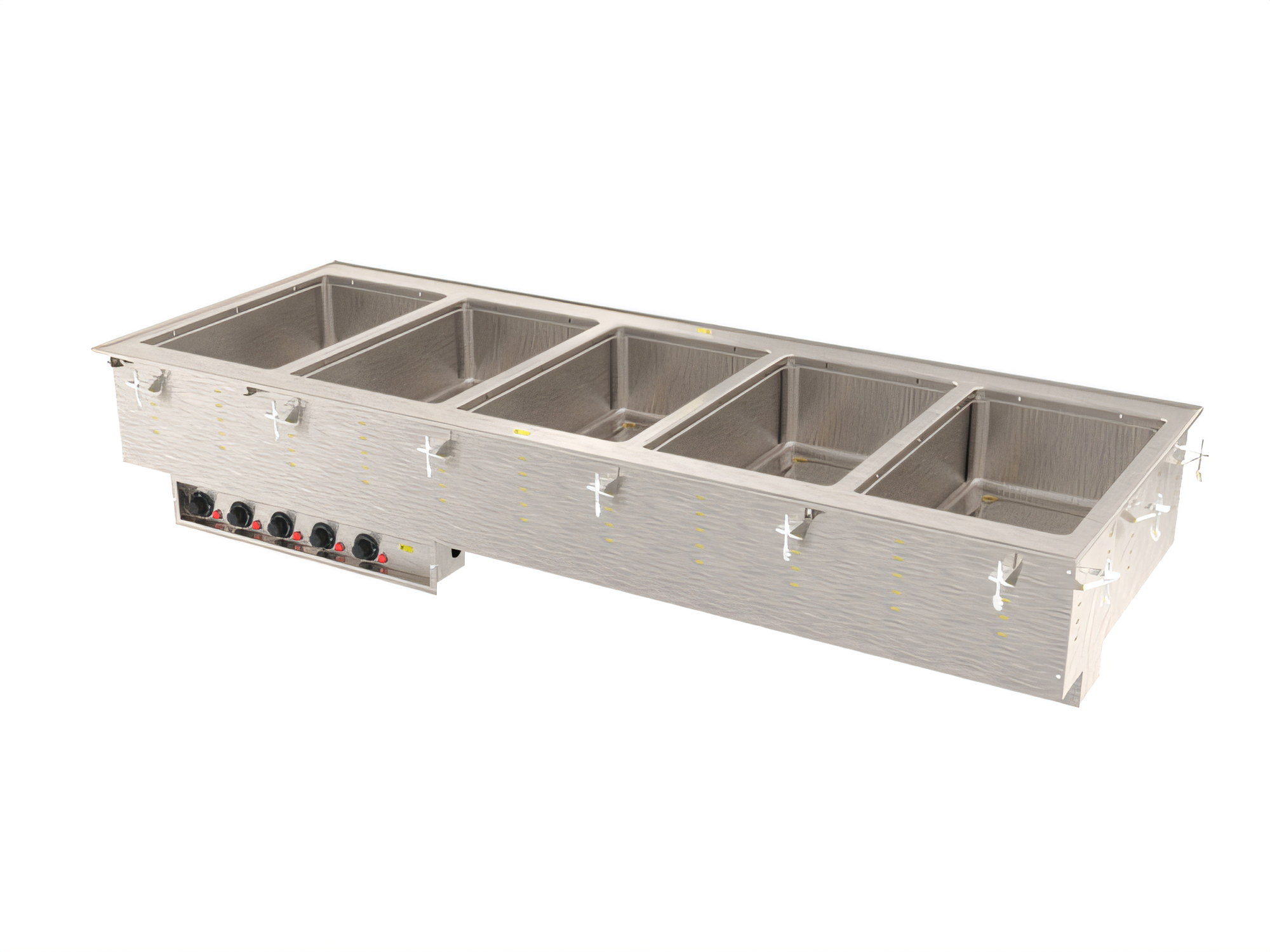

Vollrath 3640871HD Steam Tables & Food Wells
Product Description
The Vollrath Model 3640811HD is a premium five-well modular hot drop-in that keeps every entrée table-ready. Constructed from corrosion-proof 316 stainless steel, each well delivers precise wet-heat holding performance with individual controls, while the insulated housing maximizes energy efficiency. The unit arrives pre-wired with a 6' cord and NEMA 6-30P plug for quick, zero-clearance installation. It provides 1000 W of power per well, totaling 5000 W, and operates on 208-240 V, 1-phase electricity.
Why You'll Love It:
- The marine-grade (SAE 316) stainless steel wells are resistant to salt, acidic foods, and harsh chemicals, ensuring long-lasting performance.
- The five independent thermostatic controls with power-on indicator lights allow you to precisely dial in the perfect temperature for each menu item.
- The wet operation ensures even heat distribution, protecting the quality of your food and meeting NSF 4 standards.
- The drip-free perimeter flange keeps your counter surfaces clean and dry.
- The 1" copper manifold drain with individual well shut-off valves and a master manifold shut-off simplifies the daily cleanup process.
- The removable service panels under each well provide tool-free access to the components, making maintenance and repairs easier.
- The positioning/mounting clips are included, allowing for installation on counters up to 3" thick, without the need for hard-wiring.
- This product is made in the USA, NSF listed, and cULus certified for commercial kitchens, ensuring it meets the highest quality and safety standards.
Installation Notes:
- The unit can be installed directly against surrounding cabinets without any clearance space.
- This unit is designed for indoor use only. The temperature it can maintain may be affected by the surrounding HVAC conditions.
- It is recommended to use adapter bars (sold separately) when using pans that are not the standard size.
Product Specs
| Specification | Value |
|---|---|
| Pan Capacity | (5) full-size 12" × 20" pans, up to 6" (15.2 cm) deep |
| Overall Dimensions | 68" W × 26" D × 21 ½" H (172.7 × 66 × 54.6 cm) |
| Counter Cut-Out | 67 ¼" W × 25 ¼" D (170.8 × 64.1 cm) with ⅞" corner radius |
| Total Wattage | 5000 W (1000 W per well) |
| Electrical | 208-240 V / 60 Hz / 1-ph, 18-20.8 A, 6' cord with NEMA 6-30P |
| Construction | 20 ga. 316 SS drawn wells, 18 ga. stainless top, stainless exterior housing, full fiberglass insulation |
| Drainage | 1" copper manifold, individual ½" ball valves per well |
| Controls | Remote stainless panel (4' tether) with five thermostats & indicator lights |
| Listings | NSF 4 (wet operation), cULus |
| Country of Origin | United States of America |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 21.5in |
| Width | 68.0in |
| Depth | 26.0in |
| Shipping Weight | 200.0lbs |
| Style | individual pans |
| Controls | thermostatic controls |
| Pan Capacity | (5) full size (12" x 20") |
| Insulated or Non-Insulated | insulated |
| Construction | stainless steel construction |
| Wet or Dry operation | wet |
| Drain | with drain |
| Specifications | Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 68"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 5000 watts, 208-240v/60/1-ph, 18-20.8 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy) |
