Description

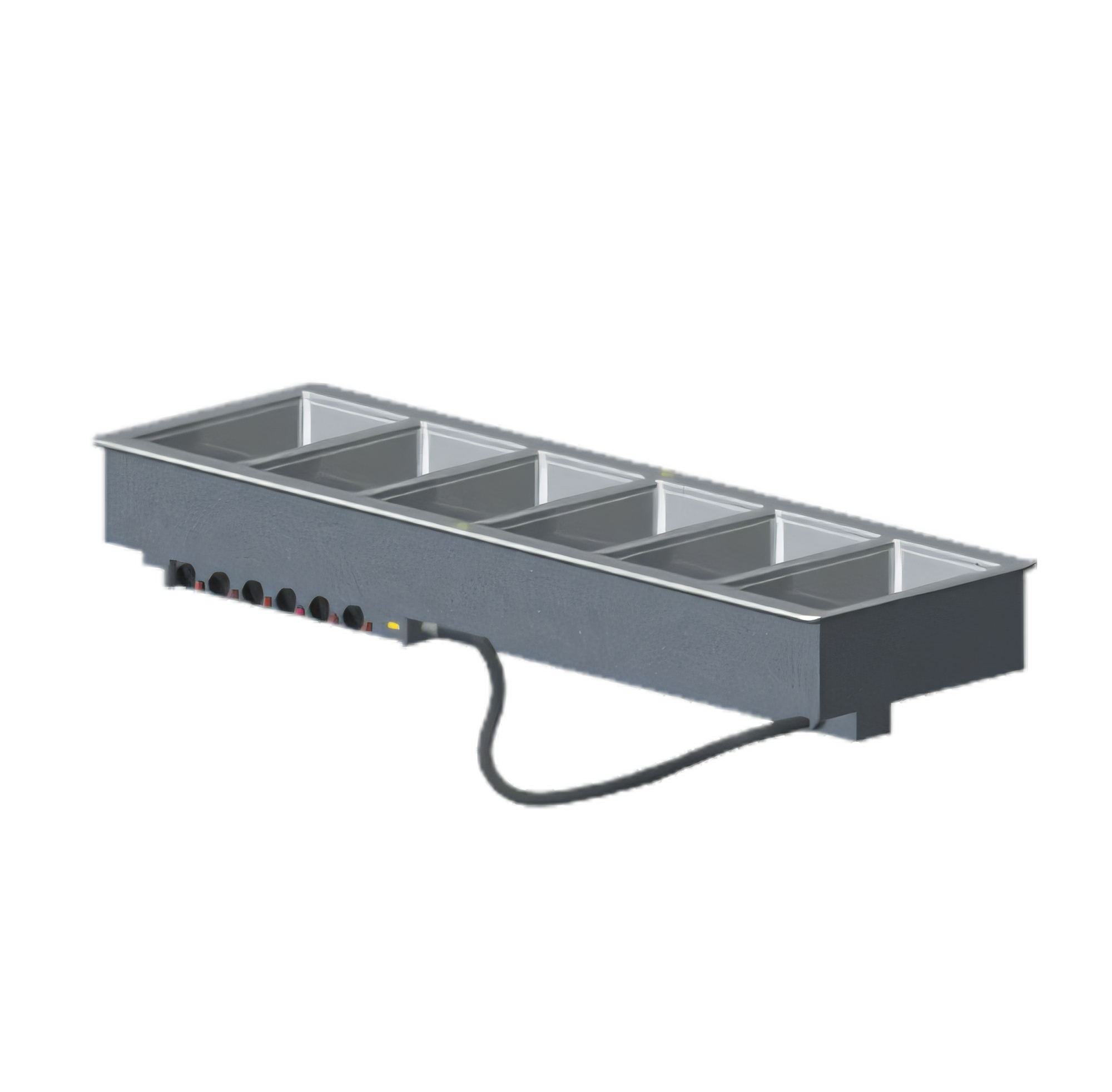

Vollrath 3640970 Steam Tables & Food Wells
Product Description
Model 3640970 | Individual Thermostatic Controls
This high-quality hot food module from Vollrath, a U.S. manufacturer, allows you to keep different menu items at their ideal serving temperatures. With six independent 12" x 20" wells, you can precisely control the temperature of each item, making it perfect for busy service lines, cafeterias, or buffets. Designed for wet operation, this module ensures your food stays at safe, appetizing temperatures.
Why You'll Love It:
- The unit has six 20-gauge stainless-steel wells that can fit full-size or fractional pans up to 6" deep.
- The independent thermostatic controls with power indicator lights provide accurate and energy-efficient temperature holding.
- The 1" copper manifold drain with individual well shut-offs and a master shut-off makes daily cleanup simple.
- The 18-gauge stainless-steel top with a full-perimeter drip-free flange contains spills and condensation.
- The high-density glass-fiber insulation on all sides allows for zero-clearance installation.
- It ships ready to install, including mounting and positioning clips, a 6 ft power cord, and a NEMA 6-30P plug.
- It is NSF 4 and cULus listed, and proudly made in the USA.
Installation & Operation Notes:
- The unit mounts flush in countertops up to 3 inches thick using the included adjustable clips.
- To meet NSF performance standards and ensure even heating, the unit must be operated with water in each well.
- Adaptor bars are recommended when using fractional pans (sold separately).
- Modular drop-ins are custom-built and cannot be cancelled or returned.
Product Specs
| Specification | Value |
|---|---|
| Overall dimensions | 81 ¼" W × 26" D × 21 ½" H (206.4 × 66 × 54.5 cm) |
| Cutout size | 80 ½" W × 25 ¼" D (204.5 × 64.1 cm) • 7⁄8" corner radius required |
| Well size (each) | 12" × 20"; 6" (15.2 cm) pan depth capacity |
| Operation | Wet heat only |
| Heat output | 625 W per well • 3 750 W total |
| Voltage / phase | 208 V / 60 Hz / 1-ph |
| Amperage | 18.0 A |
| Power connection | 6 ft cord with NEMA 6-30P plug |
| Materials | Top: 18 ga stainless steel • Wells: 20 ga stainless steel • Exterior housing: 18 ga galvanized |
| Drain | 1" copper manifold, individual well shut-offs + manifold shut-off |
| Agency listings | NSF 4, cULus |
| Country of origin | USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 21.5in |
| Width | 81.25in |
| Depth | 26.0in |
| Shipping Weight | 300.0lbs |
| Pan Capacity | (6) full size (12" x 20") |
| Controls | thermostatic controls |
| Construction | stainless steel top, corrosion resistant steel exterior |
| Insulated or Non-Insulated | insulated |
| Style | individual pans |
| Wet or Dry operation | wet |
| Drain | with drain |
| Specifications | Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge stainless steel insulated wells, 81-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3750 watts, 208v/60/1-ph, 18.0 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy) |
