Description

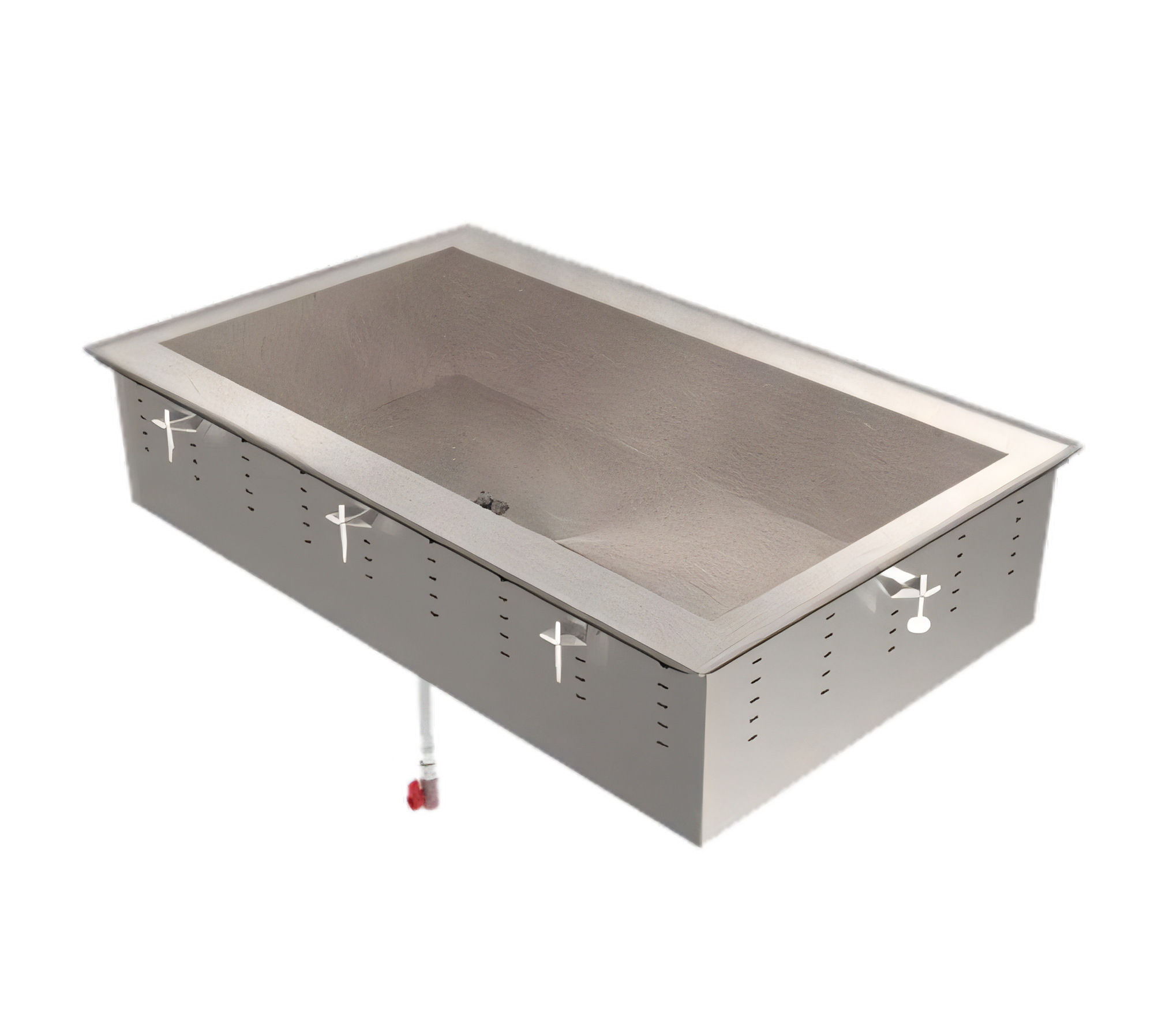

Vollrath 36456R Steam Tables & Food Wells
Product Description
This Vollrath NSF7 drop-in cold pan keeps one full-size 12" × 20" pan of salads, proteins, or desserts safely chilled and attractively displayed, making it perfect for salad bars, sandwich stations, and grab-and-go lines. The remote refrigeration design (compressor not included) allows for quieter operation and easier service access by placing the condensing unit in a back-of-house location. Manufactured in the USA, this unit is cULus and NSF7 listed. Please note that the cut-out must have a 7/8" (2.2 cm) corner radius. For more information on warranty and coverage, please contact us.
Key Features & Benefits:
- Certified by NSF (National Sanitation Foundation) for safe use with open food displays
- Designed for remote refrigeration, allowing integration with your existing cooling system (compressor not included)
- Accommodates one standard 12" x 20" pan; can also use adapter bars to hold smaller fractional pans
- Spacious 6 5/8" (16.8 cm) deep seamless well provides ample space for ice and refrigeration
- Durable 18-gauge 304 stainless-steel top and well for superior corrosion resistance
- 3/8" full-perimeter drip-free flange with molded breaker gasket to contain spills and condensation
- Foamed-in-place polyurethane insulation retains cold and improves energy efficiency
- 1" NPT drain with plug for fast and mess-free clean-up
- Factory-installed copper capillary tube, ready for field-mounted thermostat
- Sturdy 18-gauge galvanized exterior housing for long-lasting strength
- Positioning clips ensure a perfect fit inside the counter cut-out
Recommended Accessories (sold separately):
- 36480 – Solenoid Valve Kit (120 V): Controls the flow of liquid or gas in the system.
- 36481 – Expansion Valve: Regulates the pressure and temperature of the refrigerant.
- 36482 – Thermostat with Knob Control: Allows you to set the desired temperature for the system.
- 36483 – Filter & Sight-Glass Kit: Filters impurities and allows you to visually inspect the refrigerant flow.
- 23540-1 – Remote Lighted Toggle Switch (30 A, 120/240 V): Provides a convenient way to control the system.
- Perforated 1" stainless-steel false bottom: Separates the contents and allows for even airflow.
Product Specs
| Specification | Value |
|---|---|
| Model | 36456R |
| Pan Capacity | (1) full-size 12" × 20" (GN 1/1) |
| Overall Top Dimensions | 18" L × 26" W (45.7 × 66 cm) |
| Required Counter Cut-Out* | 17 1/4" L × 25 1/4" W (43.8 × 64.1 cm) |
| Well Depth | 6 5/8" (16.8 cm) |
| Overall Height (below counter) | 18 1/2" (47 cm) |
| Drain Size | 1" NPT with plug |
| Cooling Capacity | 800 BTUH @ 100 °F cond. / –10 °F evap. |
| Construction | 18-ga 304 stainless well & top; 18-ga galvanized exterior |
| Insulation | Foamed-in-place polyurethane |
| Certifications | NSF7, cULus |
| Country of Origin | USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 23.5in |
| Width | 26.0in |
| Depth | 18.0in |
| Shipping Weight | 47.0lbs |
| Layout | narrow |
| Style | remote refrigeration (no compressor) |
| Finish | stainless steel top & inner liner, galvanized outer liner |
| Insulation | insulated |
| Width (side - side) | 13 - 18 inches |
| Pan Qty | 1-pan |
| Pan Size | full-size (12" x 20") |
| Specifications | NSF7 Refrigerated Cold Pan, remote, drop-In, 1-pan, 6-5/8" deep well, accommodates standard 12" x 20" pans with adaptor bars, drip-free flange, polyurethane foam insulated, 18/8 stainless steel, 18 gauge galvanized exterior housing, remote refrigeration, cULus, NSF, Made in USA (note: remote units do not include compressor) contact Vollrath for lead time) (Refer to vollrathfoodservice.com for full warranty policy) |
