Description

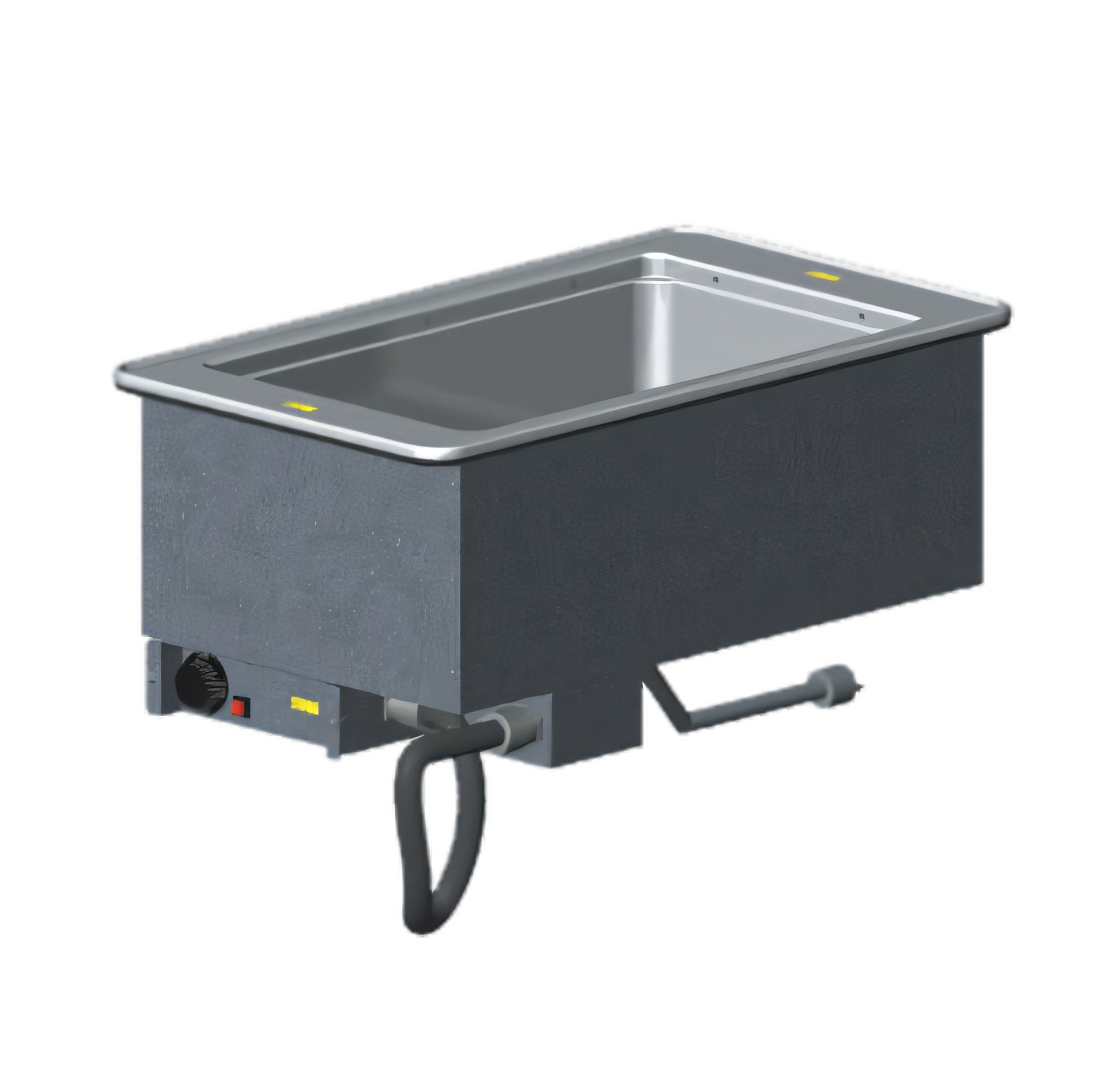

Vollrath 3646780 Steam Tables & Food Wells
Product Description
Maintain your signature dishes, sides, and sauces at the ideal serving temperature with Vollrath's 1-Well Hot Food Well. This self-contained electric unit, made in the USA, features a deep-drawn stainless steel well, automatic water fill, and precise thermostatic control to deliver consistent, moist heat, simplifying daily use and cleanup. Designed for top-mount, zero-clearance installation, the well includes positioning and adjustable mounting clips for counters up to 3" thick. Adapter bars are recommended for use with fractional pans (sold separately). Please note that modular drop-ins are custom-configured and cannot be cancelled or returned once ordered. Steam table pans shown are not included.
Why You'll Love It:
- The auto-fill system keeps the water at the perfect level without any manual monitoring.
- The thermostatic control dial (which can be mounted remotely) has a power indicator light, allowing for accurate and consistent holding temperatures.
- The 20-gauge stainless steel well fits 12" × 20" full-size or fractional pans up to 6" deep.
- The full-perimeter drip-edge flange contains any spills or condensation, protecting your counter.
- The 1" copper manifold drain has individual well shutoffs and a manifold shutoff, making it easy to empty with minimal mess.
- The high-density glass-fiber insulation on all sides allows for tight "zero-clearance" installations.
- The 6' (1.8 m) cord comes with a factory-installed NEMA 6-15P plug, so no hard-wiring is needed.
- It is NSF 4 & cULus listed, and it is built in Sheboygan, Wisconsin, USA.
Optional Accessories:
- The sheet-pan adapter (Item 19186) is an optional accessory that can be used with the product.
- The marine-grade "HD" well version is also available as an optional accessory, but you will need to contact us to check on its current availability.
Product Specs
| Specification | Value |
|---|---|
| Well count / style | 1 well, wet operation only |
| Heating control | Thermostatic (infinite adjustment) |
| Power | 625 W | 208 V | 1-ph | 3.0 A |
| Electrical connection | 6 ft cord with NEMA 6-15P plug |
| Overall size (W × D × H) | 15" × 26" × 21-1/2" (38 × 66 × 54.6 cm) |
| Cutout size (W × D) | 14-1/4" × 25-1/4" (36.2 × 64.1 cm) |
| Corner radius | 7/8" (2.2 cm) required |
| Well material | 20 ga stainless steel, insulated |
| Top flange | 18 ga stainless steel with breaker gasket |
| Exterior housing | 18 ga galvanized steel |
| Drain | 1" copper manifold, individual & master shutoffs |
| Certifications | NSF 4, cULus |
| Origin | Made in USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 21.5in |
| Width | 15.0in |
| Depth | 26.0in |
| Shipping Weight | 50.0lbs |
| Pan Capacity | (1) full size (12" x 20") |
| Style | individual pans |
| Controls | thermostatic controls |
| Construction | stainless steel top, corrosion resistant steel exterior |
| Drain | with drain |
| Insulated or Non-Insulated | insulated |
| Wet or Dry operation | wet |
| Specifications | Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge stainless steel insulated well, 15"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, thermostatic control mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 625 watts, 208v/60/1-ph, 3.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy) |
