Description

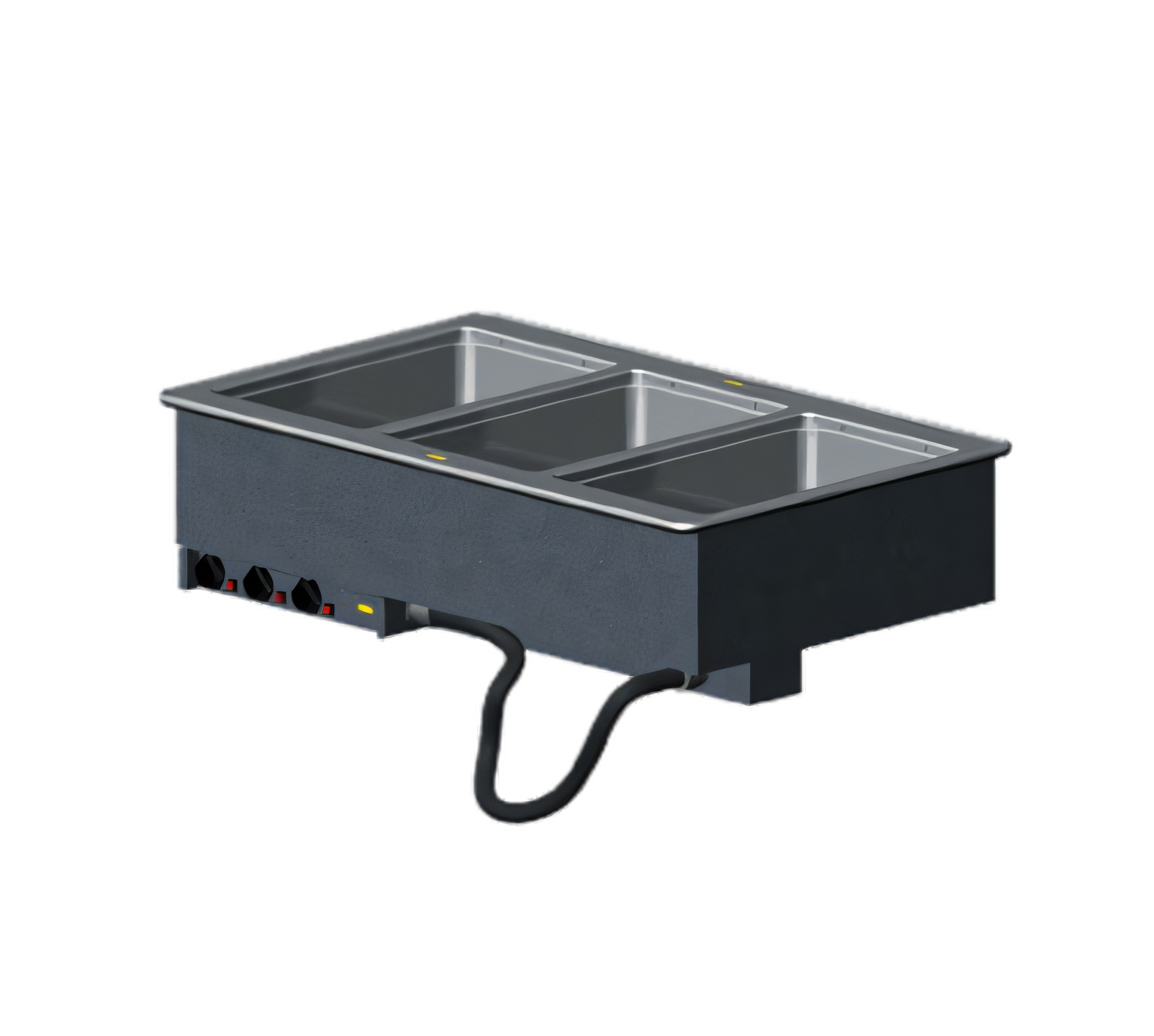

Vollrath 3647350 Steam Tables & Food Wells
Product Description
The Vollrath 36473 three-well hot drop-in unit is designed to keep your menu items at safe, appetizing temperatures. This self-contained unit installs quickly and delivers precise wet-heat performance, ensuring your food remains at the optimal serving temperature. Constructed with durable stainless-steel, this unit is built to withstand the demands of a busy serving line. With its manifold drain and infinite controls, the Vollrath 36473 provides the reliable temperature regulation your operation requires.
Key advantages:
- The unit has three individual 12" x 20" wells that can accommodate full-size or fractional pans up to 6" deep.
- The 300-series stainless steel wells and drip-free flange are resistant to corrosion, making cleanup easy.
- The 1" copper manifold drain with individual ball-valve shut-offs and a master shut-off enables splash-free, one-step draining.
- Independent infinite controls and power indicator lights allow you to fine-tune the temperature of each well separately.
- The fully insulated 20-gauge wells and 18-gauge galvanized exterior minimize heat loss and conserve energy.
- It comes with a 6-ft cord and NEMA 6-15P plug, so no hard-wiring is required.
- The included mounting clips enable zero-clearance installation on counters up to 3" thick.
- The unit is NSF 4 and cULus listed, and it is made in the USA.
What's in the box:
- A Vollrath 36473 three-well drop-in module, which is the main component.
- A remote stainless-steel control panel that allows you to manage the module.
- Mounting and positioning clips, as well as a perimeter gasket, to help install the module.
- A 6-foot power cord with a NEMA 6-15P plug, to connect the module to a power source.
- An owner's manual and installation guide to help you set up and use the product.
Product Specs
| Specification | Value |
|---|---|
| Model # | 36473 |
| Number of wells | 3 (individually heated) |
| Operation | Wet only |
| Total power | 1,875 W (625 W per well) |
| Electrical | 240 V / 60 Hz / 1-ph - 7.8 A |
| Controls | Infinite, panel-mounted (4 ft tether) |
| Plug type | NEMA 6-15P |
| Overall dimensions | 41-1/2" W × 26" D × 21-1/2" H |
| Counter cut-out | 40-3/4" W × 25-1/4" D; 7/8" corner radius |
| Well material | 20 ga 300-series stainless steel |
| Top flange | 18 ga stainless steel |
| Exterior housing | 18 ga galvanized steel |
| Drain | 1" copper manifold with individual & master shut-offs |
| Certifications | NSF, cULus |
| Country of origin | USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 21.5in |
| Width | 41.5in |
| Depth | 26.0in |
| Shipping Weight | 150.0lbs |
| Controls | infinite controls |
| Style | individual pans |
| Pan Capacity | (3) full size (12" x 20") |
| Construction | stainless steel top, corrosion resistant steel exterior |
| Drain | with drain |
| Insulated or Non-Insulated | insulated |
| Wet or Dry operation | wet |
| Specifications | Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1875 watts, 240v/60/1-ph, 7.8 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy) |
