Description

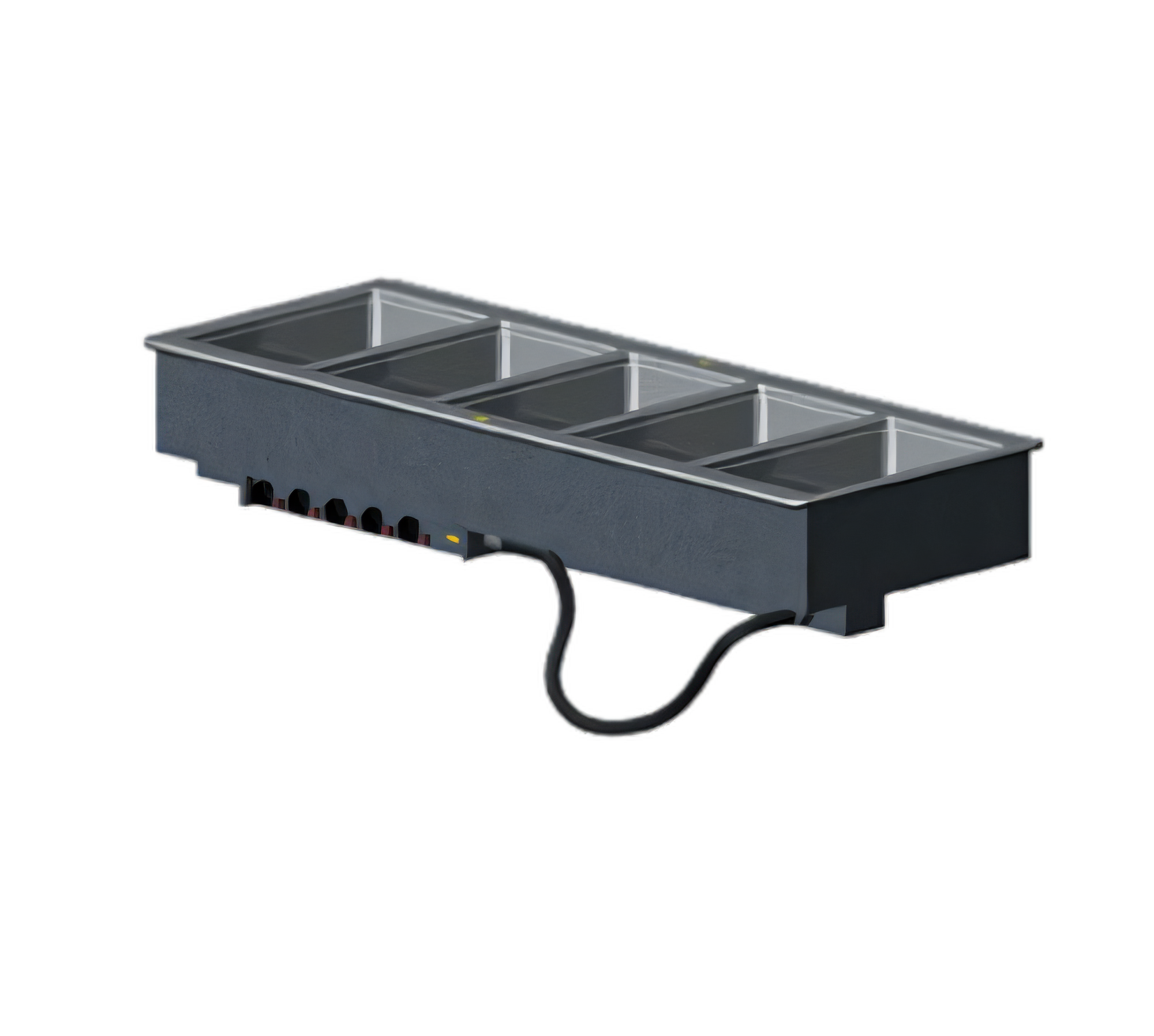

Vollrath 36475 Steam Tables & Food Wells
Product Description
The Vollrath 5-Well Drop-In is a versatile and reliable solution for high-volume kitchens. Featuring five individually controlled, fully insulated wells, this unit keeps your entrées, sides, and sauces at safe serving temperatures throughout the entire service. Its plug-and-play design eliminates the need for hard-wiring, making it easy to install and set up. With the ability to run a varied menu, the Vollrath 5-Well Drop-In is the perfect choice for demanding kitchen environments that require dependability and convenience.
Why You'll Love It:
- The unit features five 12" x 20" wells, each capable of accommodating full-size or fractional pans up to 6" deep.
- It is designed for wet operation only, ensuring even and NSF-compliant heat distribution.
- Individual infinite controls and power indicator lights are located on a stainless-steel panel, with a 4' tether for flexible mounting.
- Each well has a standard ½" drain with a dedicated ball-valve shutoff, eliminating the need for a messy manifold to clean.
- The drip-free 18 ga stainless top flange comes with a factory-installed gasket, creating a clean counter seal.
- Comprehensive all-side insulation, including between the wells, maximizes efficiency and keeps the outer surfaces cooler.
- The zero-clearance, drop-in design includes positioning clips for counters up to 3" thick.
- The unit comes with a 6' (1.8 m) power cord and a NEMA 6-20P plug, requiring no electrician installation.
- It is NSF & cULus listed and proudly made in the USA.
Installation & Operating Notes:
- This unit is designed for indoor use only. The performance may be affected by the HVAC system and the ambient room temperature.
- To comply with NSF standards, you must keep water in each well during operation.
- Do not modify the factory-installed cord or plug, as this will void the warranty.
- Custom-built drop-in orders cannot be canceled or returned once placed.
Optional Accessories:
- The sheet-pan adapter (Item 19186) allows you to use 18" x 26" trays with your appliance.
- Adapter bars are recommended when you want to use smaller, fractional-sized pans.
Product Specs
| Specification | Value |
|---|---|
| Overall Dimensions (W x D x H) | 68" x 26" x 15" (172.7 cm x 66 cm x 38.1 cm) |
| Counter Cutout | 67 ¼" x 25 ¼" (170.8 cm x 64.1 cm) with 7/8" radius corners |
| Total Wattage / Per Well | 3 125 W total | 625 W per well |
| Electrical | 240 V / 60 Hz / 1-ph • 13.0 A • NEMA 6-20P |
| Controls | Individual infinite (dial) controls with indicator lights |
| Drain Connections | (5) ½" MPT with individual ball valves |
| Construction | 300-series stainless wells & flange, 18 ga stainless top, 18 ga galvanized housing |
| Certifications | NSF 4 (moist heat), cULus |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 15.0in |
| Width | 68.0in |
| Depth | 26.0in |
| Shipping Weight | 202.0lbs |
| Controls | infinite controls |
| Pan Capacity | (5) full size (12" x 20") |
| Drain | with drain |
| Style | individual pans |
| Insulated or Non-Insulated | insulated |
| Construction | stainless steel top, corrosion resistant steel exterior |
| Wet or Dry operation | wet |
| Specifications | Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge stainless steel insulated wells, 68"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3125 watts, 240v/60/1-ph, 13.0 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy) |
