Description

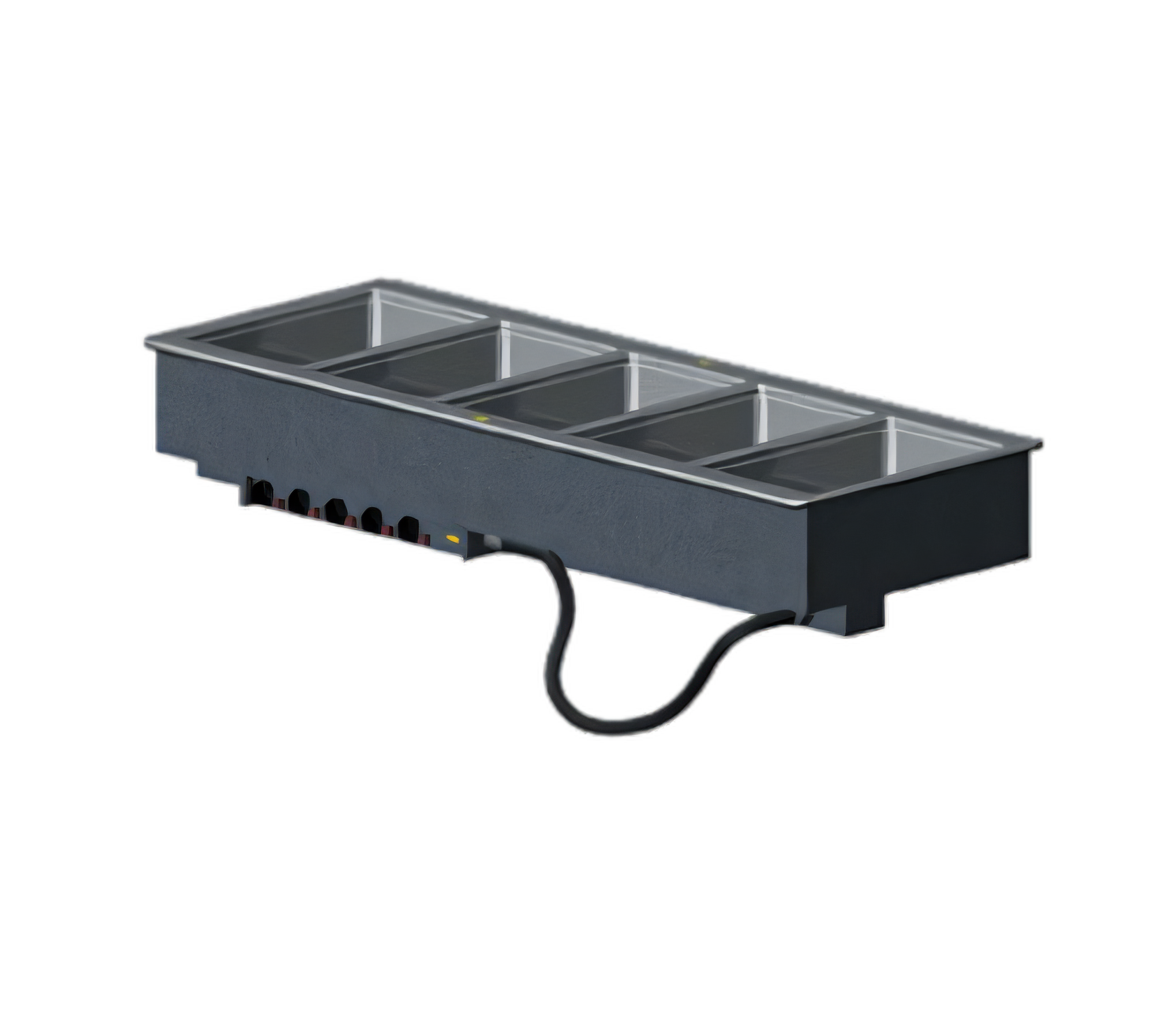

Vollrath 3647550 Steam Tables & Food Wells
Product Description
Elevate your culinary presentations with this Vollrath five-well drop-in unit. Designed with convenience in mind, this made-in-the-USA appliance maintains safe, appetizing temperatures for your piping-hot entrées without the need for hard-wiring. Its infinite controls and manifold drain ensure precise temperature regulation and easy cleanup, allowing you to serve your dishes with confidence.
Features:
- The unit has five independent 12" x 20" full-size wells, made of 20-gauge 300-series stainless steel.
- It is designed for wet operation only to maintain uniform, NSF-approved holding temperatures.
- The individual infinite controls and power indicator lights are on a remote stainless-steel panel, connected by a 4-foot tether.
- The 18-gauge stainless steel top flange has a drip-free edge and a factory-installed gasket.
- Each well has a 1" copper manifold drain with a ball valve, plus a master shut-off.
- The unit is fully insulated between the wells and on every exterior surface for energy efficiency.
- It includes mounting clips for counters up to 3" thick, allowing for zero-clearance installation.
- The unit accepts full-size or fractional pans up to 6" deep (adapter bars are recommended).
- It has a 6-foot cord with a NEMA 6-20P plug for plug-and-play convenience.
- The unit is NSF & cULus listed and proudly manufactured in Sheboygan, Wisconsin.
Product Specs
| Specification | Value |
|---|---|
| Overall dimensions (W × D × H) | 68" × 26" × 21 ½" |
| Counter cutout | 67 ¼" × 25 ¼" • ⅞" corner radius |
| Well size (each) | 12" × 20" (full-size pan) • up to 6" pan depth |
| Electrical | 240 V / 60 Hz / 1-ph • 3 125 W (625 W per well) • 13.0 A • NEMA 6-20P |
| Controls | Five infinite switches with indicator lights |
| Construction | 18-gauge stainless top • 20-gauge stainless wells • 18-gauge galvanized exterior |
| Drain | 1" copper manifold with individual well shut-offs & master valve |
| Agency approvals | NSF 4 • cULus |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 21.5in |
| Width | 68.0in |
| Depth | 26.0in |
| Shipping Weight | 202.0lbs |
| Controls | infinite controls |
| Pan Capacity | (5) full size (12" x 20") |
| Drain | with drain |
| Style | individual pans |
| Insulated or Non-Insulated | insulated |
| Construction | stainless steel top, corrosion resistant steel exterior |
| Wet or Dry operation | wet |
| Specifications | Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge stainless steel insulated wells, 68"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3125 watts, 240v/60/1-ph, 13.0 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy) |
