Description

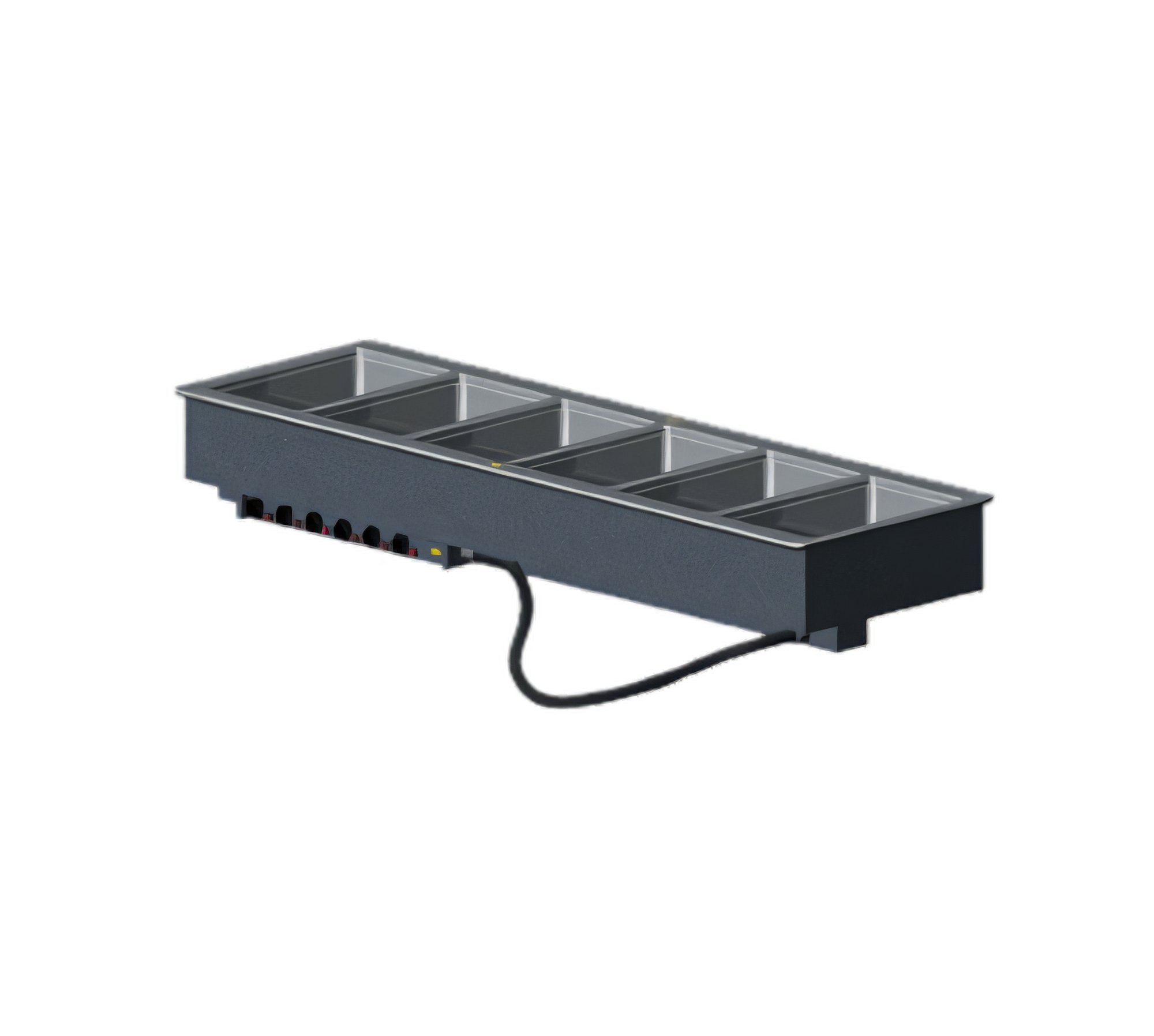

Vollrath 3647680 Steam Tables & Food Wells
Product Description
Model 3647680 is a high-performance drop-in module that keeps up to six menu items hot, fresh, and food-safe. Designed and manufactured in the USA, this unit operates at 240 V and 625 W per well, meeting NSF and cULus safety standards. The integrated auto-fill system maintains the ideal water level, eliminating the need for constant monitoring. Individual thermostatic controls allow you to dial in the perfect holding temperature for each dish, ensuring optimal food quality and safety.
Key Features:
- The unit has (6) 12 x 20 inch wells, made from durable 20-gauge stainless steel.
- It operates using wet-heat only, and the water level is automatically maintained.
- It has independent thermostatic controls with bright power indicator lights.
- The 18-gauge stainless steel top has a full-perimeter drip-free flange.
- It has a 1-inch copper manifold drain with individual well shut-offs and a master shut-off.
- The unit has high-density fiberglass insulation on the sides, between the wells, and below the elements.
- The stainless steel control panel is removable and has a 3-foot flexible tether for remote mounting.
- Positioning and mounting clips are included, and the unit fits counters up to 3 inches thick.
- The 6-foot power cord has a NEMA 6-20P plug, so no hard-wiring is required.
- The unit is NSF 4 listed, cULus certified, and proudly made in the USA.
Perfect For:
- Serving food at buffets, cafeterias, and salad bars
- Providing hot meals in university and corporate dining halls
- Keeping food warm in convenience stores and quick-service restaurants
- Maintaining the temperature of food at event venues with built-in hot holding capabilities
Product Specs
| Specification | Value |
|---|---|
| Wells | 6 independent, 12 × 20 in (full-size) / up to 6 in deep |
| Heat Source | Wet operation only, factory-installed auto-fill |
| Controls | 6 thermostatic knobs with indicator lights |
| Total Power | 3,750 W (625 W per well) |
| Electrical | 240 V / 60 Hz / 1-ph, 15.6 A, NEMA 6-20P cord & plug |
| Overall Dimensions | 81 ¼ W × 26 D × 21 ½ H in (206.4 × 66 × 54.5 cm) |
| Cutout Size | 80 ½ W × 25 ¼ D in (204.5 × 64.1 cm) – 7⁄8 in corner radius |
| Top Material | 18-gauge stainless steel |
| Exterior Housing | 18-gauge galvanized steel |
| Drain | 1 in copper manifold w/ individual & master shut-offs |
| Included Items | Auto-fill assembly, breaker gasket, positioning & mounting clips |
| Agency Listings | NSF 4, cULus |
| Warranty | 1-year parts & labor (see VollrathFoodservice.com for details) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 21.5in |
| Width | 81.25in |
| Depth | 26.0in |
| Shipping Weight | 230.0lbs |
| Pan Capacity | (6) full size (12" x 20") |
| Controls | thermostatic controls |
| Construction | stainless steel top, corrosion resistant steel exterior |
| Wet or Dry operation | wet |
| Style | individual pans |
| Insulated or Non-Insulated | insulated |
| Drain | with drain |
| Specifications | Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge stainless steel insulated wells, 81-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3750 watts, 240v/60/1-ph, 15.6 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy) |
