Description

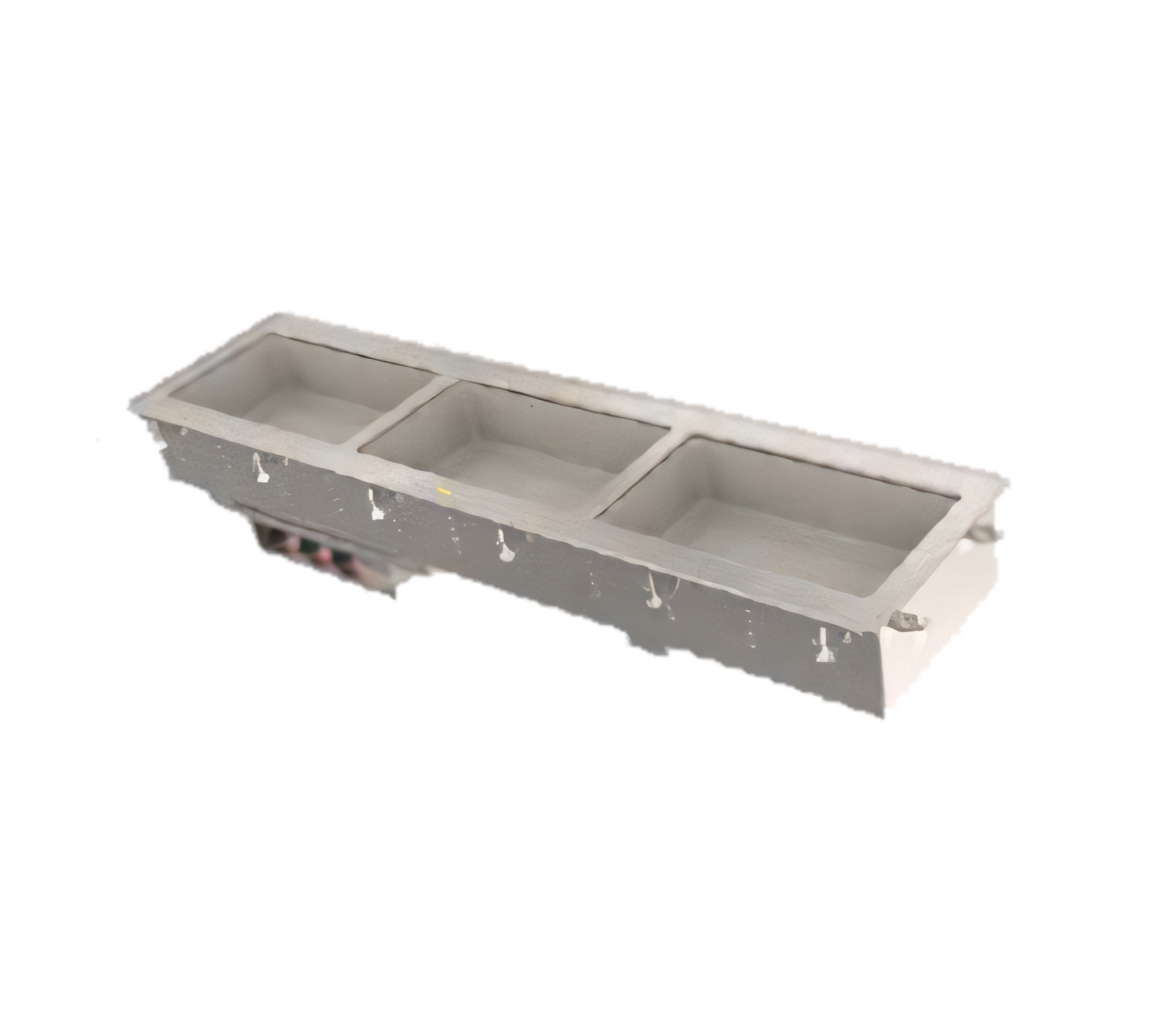

Vollrath 3664530 Steam Tables & Food Wells
Product Description
Elevate your serving experience with the Vollrath short-side hot well. Designed for compact spaces, this versatile unit allows you to position full-size pans sideways, maximizing valuable counter depth. With its 120V / 2500W power, it provides even, energy-efficient heating, ensuring your food stays warm and appetizing. Conveniently placed, this hot well keeps dishes easily accessible for both your staff and customers, streamlining your service flow.
Why you'll love it:
- This unit has a narrow 18-inch front-to-back footprint, making it perfect for tight spaces.
- The rotated pan presentation pulls the food forward, allowing for faster and easier service.
- The built-in auto-fill feature maintains the ideal water level, ensuring consistent and moist heat.
- The 1-inch copper manifold drain with a master shut-off valve and individual 1/2-inch ball valves allow for quick and mess-free emptying.
- The independent infinite-range controls and power lights for each well are located on a remote 18/8 stainless-steel panel, connected by a 4-foot tether.
- The 18/8 stainless steel top flange and 8-inch deep drawn wells offer exceptional durability and corrosion resistance.
- The thick polyurethane foam insulation on every side and between wells helps lock in heat and reduce energy costs.
- The full-perimeter drip edge with a supplied gasket keeps condensation off your countertop.
- The unit ships ready to use, with a 6-foot cord and a NEMA 5-30P plug, so no hard wiring is required.
- The unit is UL, cUL, and NSF listed, and it is engineered and manufactured in the USA.
Product Specs
| Specification | Value |
|---|---|
| Capacity | 4 full-size steam table pans (accepts pans up to 6 in. deep) |
| Controls | Infinite (variable) dial for each well |
| Total wattage | 2500 W • 625 W per well |
| Electrical | 120 V / 60 Hz / 1-ph • 20.8 A • NEMA 5-30P |
| Overall dimensions | 88 ¼ in. L × 18 in. D |
| Counter cut-out | 87 ½ in. L × 17 ¼ in. D • 7/8 in. corner radius |
| Well interior (each) | 20 in. L × 12 in. W × 8 in. D |
| Installation | Top-mount, zero-clearance; mounting clips included for counters ≤ 3 in. thick |
| Construction | 18/8 stainless steel, polyurethane foam insulated |
| Certifications | UL, CUL, NSF |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, UL, Made in USA |
| Height | 21.5in |
| Width | 88.56in |
| Depth | 18.0in |
| Shipping Weight | 177.0lbs |
| Controls | infinite controls |
| Style | individual pans |
| Construction | stainless steel construction |
| Pan Capacity | (4) full size (12" x 20") |
| Drain | with drain |
| Wet or Dry operation | wet |
| Insulated or Non-Insulated | insulated |
| Specifications | Short Sided Hot Well, Drop-In, (4) pan, infinite controls, autofill & manifold drain, 2500 watts, 120v/60/1-ph, 20.8 amps, NEMA 5-30P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 88-1/4" x 18", cutout dimensions 87-1/2" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy) |
