Vollrath 3664720 Steam Tables & Food Wells

Product Description

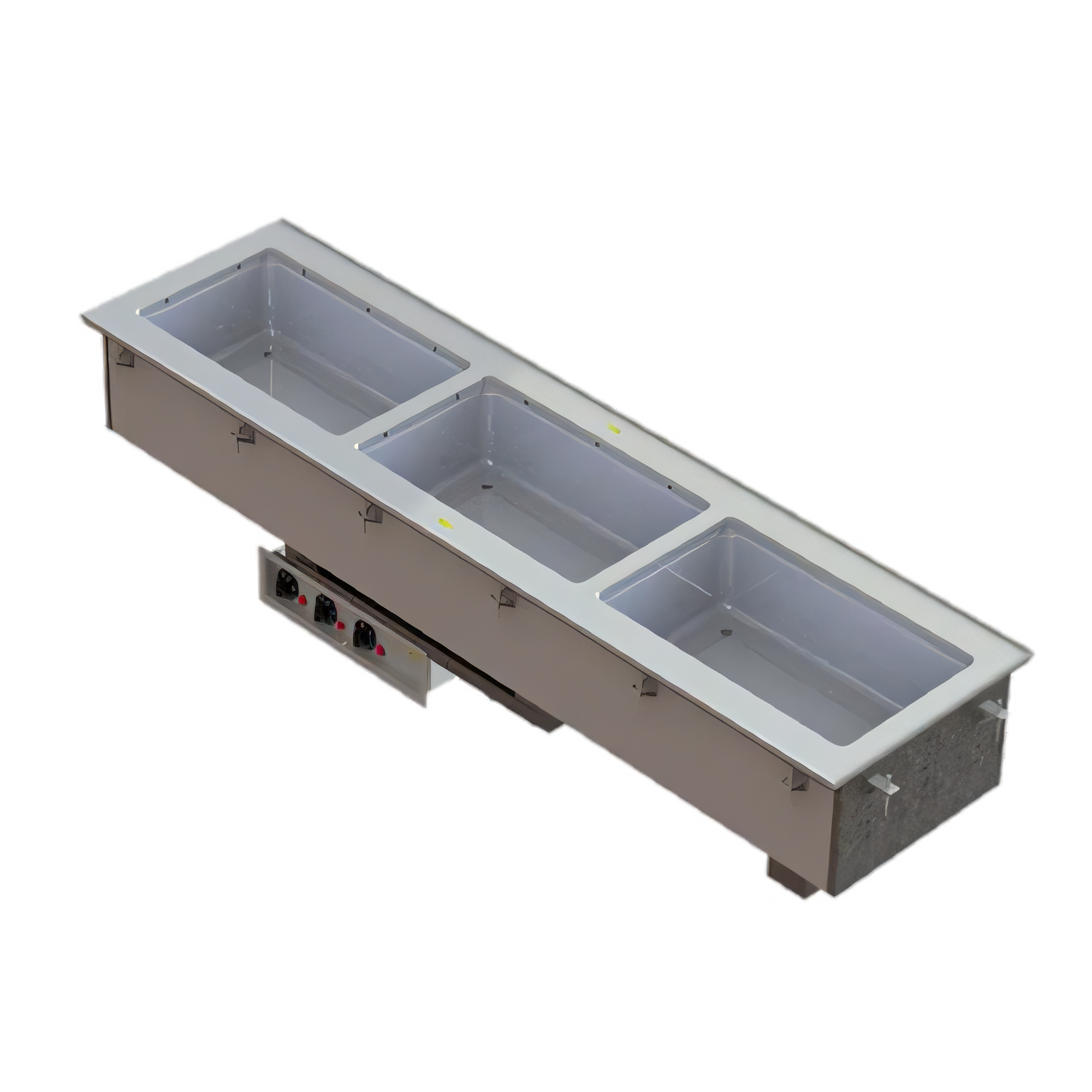

Model 3664720 Manifold Drain Infinite Controls offers a slim profile for your serving line without reducing capacity. Vollrath's patented Short-Side Hot Drop-In rotates full-size pans sideways, trimming counter depth to just 18 inches while keeping food easily accessible for guests and staff.

Why you'll love it:

  • It has a narrow 18-inch footprint, making it perfect for tight counters or pull-forward service lines.
  • The two 1000-watt wells (2000 watts total) deliver fast and even steam heating.
  • The infinite dial controls with individual power lights allow for precise holding temperatures.
  • The 1-inch copper manifold drain with a master shut-off simplifies daily cleanup, and a drain plug is included.
  • The 18/8 (300-series) stainless steel flange and well with a full-perimeter drip edge help keep counters dry.
  • The thick polyurethane foam insulation on all non-exposed sides and between the wells boosts energy efficiency.
  • It comes with a 6-foot factory-installed cord with a NEMA 6-15P plug, so no hard-wiring is required.
  • The remote stainless steel control panel on a 4-foot tether allows for flexible mounting.
  • It can accommodate full-size or fractional pans up to 6 inches deep (adapter bars are recommended for fractional pans).
  • It is made in the USA and is UL, cULus, and NSF listed.

Ideal for:

  • Carving stations and buffets in the front-of-house area
  • Convenience stores and cafés with limited counter depth
  • Stations where operators need to easily access and display the products
  • Any operation that wants a clean, pre-built look without custom fabrication

Product Specs

Specification Value
Wells / Capacity 2 full-size pans turned sideways
Total Wattage 2000 W (1000 W per well)
Voltage & Phase 208-240 V | 60 Hz | 1-ph
Amperage 7.2 – 8.3 A
Plug Type NEMA 6-15P (6 ft cord)
Controls Infinite (manual) dial, one per well
Drain System 1 in. copper manifold with master shut-off & individual ½ in. ball valves
Overall Dimensions 45½ in. L × 18 in. W
Counter Cut-Out 44 11⁄16 in. L × 17 ¼ in. W | ⅞ in. corner radius
Individual Well Size 20 in. L × 12 in. W × 8 in. D
Material 18/8 stainless steel well & flange, polyurethane insulated
Agency Approvals UL, cULus, NSF
Country of Origin USA

Features

Specification Value
Manufacturer Vollrath
Certifications NSF, UL, Made in USA
Height 21.5in
Width 45.44in
Depth 18.0in
Shipping Weight 100.0lbs
Controls infinite controls
Style individual pans
Construction stainless steel construction
Insulated or Non-Insulated insulated
Wet or Dry operation wet
Pan Capacity (2) full size (12" x 20")
Drain with drain
Specifications Short Sided Hot Well, Drop-In, (2) pan, infinite controls, manifold drain, 2000 watts, 208-240v/60/1-ph, 7.2-8.3 amps, NEMA 6-15P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 45-1/2" x 18", cutout dimensions 44-11/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
NSF
NSFNSF Certified – This product meets NSF International food safety and sanitation standards for commercial foodservice equipment.
UL
ULUL Listed – This product has been independently safety tested and certified by Underwriters Laboratories.
Made in USA
Made in USAMade in USA – This product is manufactured in the United States of America.
