Description

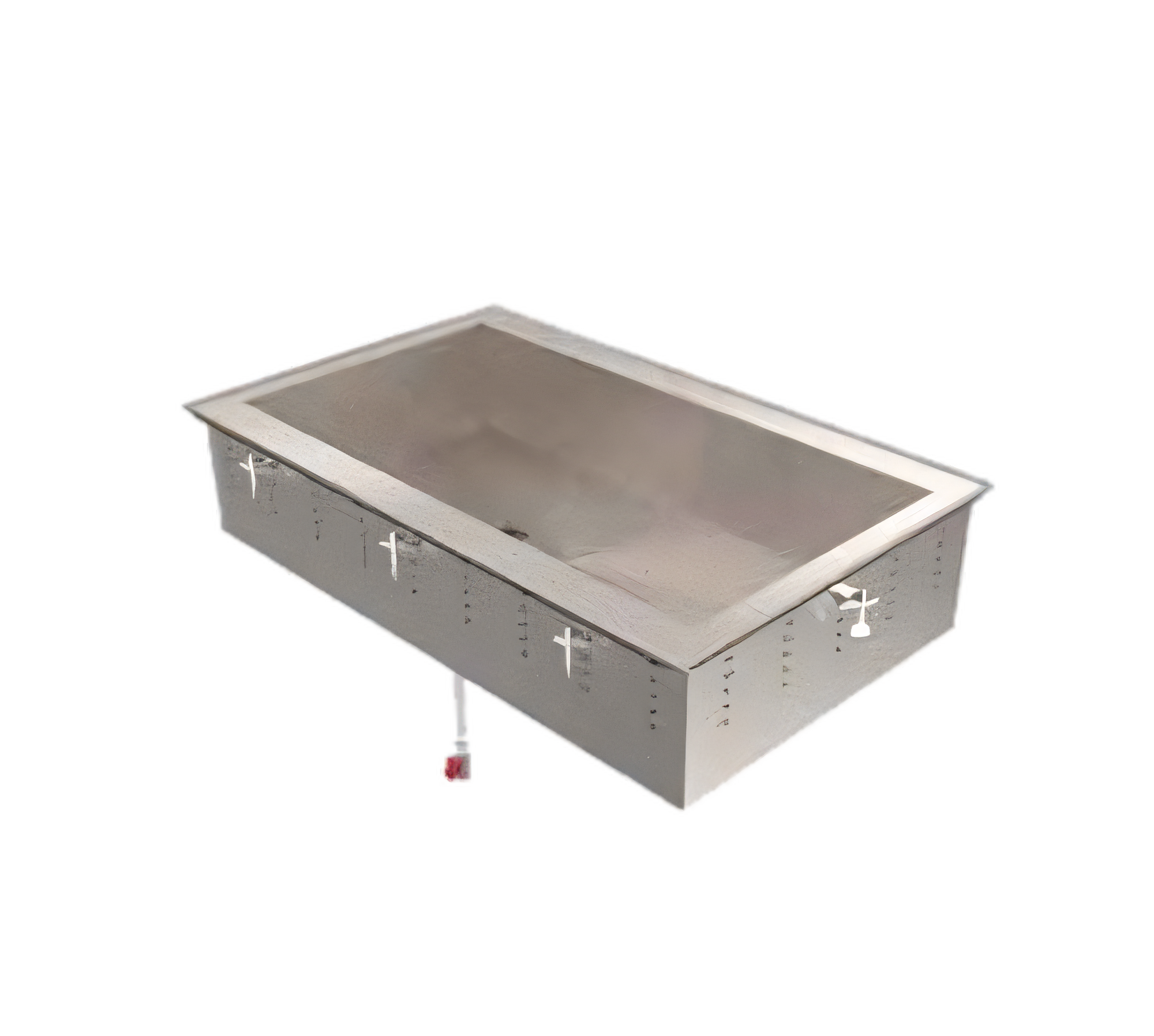

Vollrath 36654 Steam Tables & Food Wells
Product Description
Model 36654 | NSF & UL Listed | Made in USA
This Vollrath 36654 drop-in cold pan is designed for tight countertops and high-volume service. It keeps pre-chilled foods safely cold and beautifully displayed without the need for refrigeration. Its space-saving "short-side" design holds two full-size 12" × 20" pans in an 8-inch-deep, ice-packable well, making it perfect for salad, deli, pastry, or grab-and-go stations.
Key Benefits & Features:
- Holds two standard full-size steam table pans or equivalent fractional pans.
- 18-gauge 18/8 Type 304 stainless steel top and seamless well resist corrosion and are easy to clean.
- 3/8-inch (9.5 mm) drip-free perimeter flange with molded breaker gasket keeps condensation off the counter.
- Foamed-in-place high-density polyurethane insulation extends ice life and maintains safe food temperatures.
- Integrated 1-inch (2.5 cm) drain with removable plug for quick and mess-free draining.
- Flat work surface around the opening simplifies pan changes and merchandising.
- Included positioning clips center the unit in the cutout for a professional, watertight fit.
- Durable 18-gauge galvanized steel exterior housing stands up to daily commercial use.
- Top-mount, narrow footprint maximizes line capacity while freeing up under-counter space.
Product Specs
| Specification | Value |
|---|---|
| Specification | Model 36654 (2-Pan) |
| Pan Capacity | 2 full-size 12" × 20" pans |
| Overall Length (A) | 45 7/16" (115.4 cm) |
| Overall Width (B) | 18" (45.7 cm) |
| Overall Height (C) | 17 15/16" (45.6 cm) |
| Well Length (D) | 40 3/4" (103.5 cm) |
| Well Width (E) | 12" (30.5 cm) |
| Well Depth | 8" (20.3 cm) |
| Countertop Cutout (L × W) | 44 3/4" × 17 1/4" (113.7 × 44.2 cm) |
| Corner Radius | 7/8" (2.22 cm) |
| Drain Size | 1" (2.5 cm) with plug |
| Construction | 18-gauge 18/8 Type 304 stainless steel well & top; 18-gauge galvanized steel exterior |
| Insulation | Foamed-in-place polyurethane |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, UL, Made in USA |
| Height | 15.0in |
| Width | 45.44in |
| Depth | 18.0in |
| Shipping Weight | 127.0lbs |
| Interior Liner | stainless steel |
| Depth (front-to-back) OA | 13- 18 inches |
| Pan Qty | 2-pan |
| Exterior Liner | galvanized steel |
| Width (side - side) OA | 43 - 48 inches |
| Layout | straight |
| Specifications | Short Sided Cold Drop-In, (2) pan, non-refrigerated, 18/8 stainless steel, drip free flange, polyurethane foam insulated, 8" deep well (contact Vollrath for lead time), NSF & UL, Made in USA (Refer to vollrathfoodservice.com for full warranty policy) |
