Description

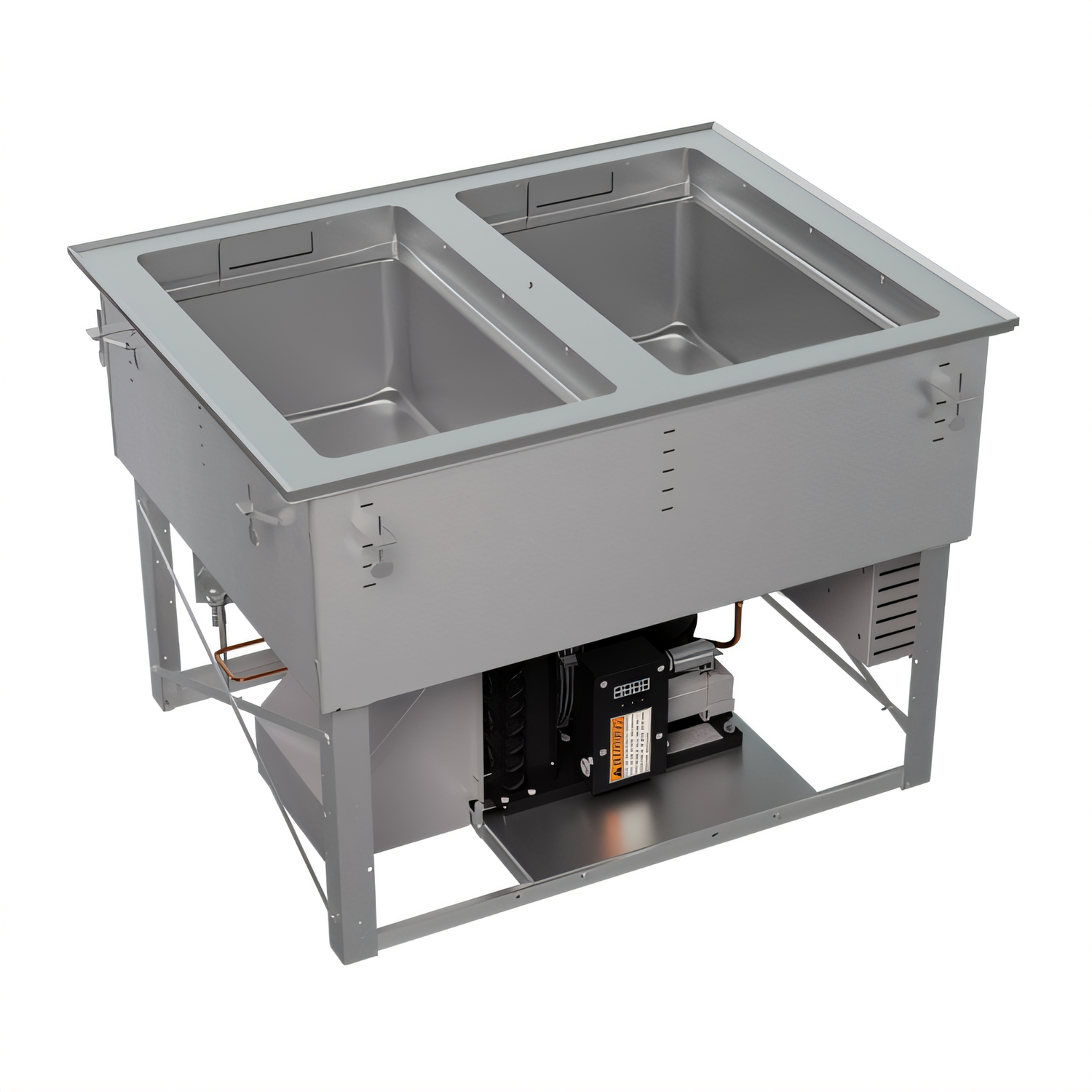

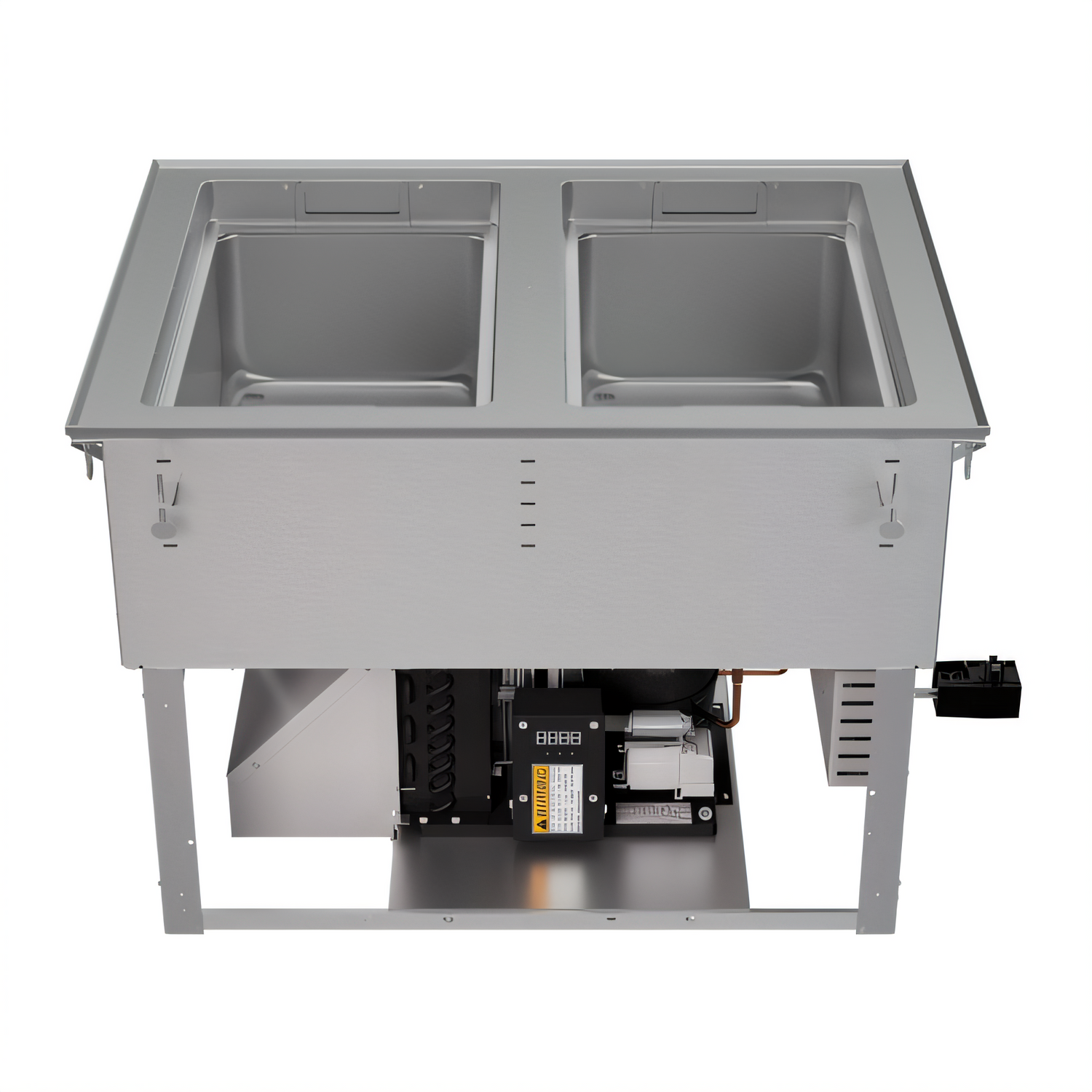

Vollrath FC-HCF-02208-FF Steam Tables & Food Wells
Product Description
Flat-flange | 120/208-240 V | Made in USA
Elevate your serving line with this versatile drop-in unit that can warm, chill, or freeze at the touch of a button. Each independent well allows you to hold soup piping hot in one section while keeping salad ingredients icy cold in the other. Crafted from durable 18-gauge 300-series stainless steel with an easy-clean flat flange, this self-contained unit installs quickly and is ready to perform reliably day in and day out. Intended for indoor use in ambient temperatures below 86 °F (30 °C). Adapter bars for fractional pans are sold separately. For more information on warranty and coverage, please contact us.
Key Features & Benefits:
- You can switch between HOT, COLD, or FROZEN modes with this 3-in-1 performance unit.
- The independent electronic controls have an intuitive touch panel, and a 4 ft (1.2 m) remote-mount cable is included.
- It can accommodate (2) full-size 12 × 20 in pans or fractional pans up to 6 in (15.2 cm) deep.
- The 2 in (5.1 cm) stepped cold-wall recess creates a "cold-air blanket" for NSF-compliant cold holding.
- The self-contained ¼ HP refrigeration system uses eco-friendly R290 refrigerant.
- The foamed-in-place insulation and refrigeration coils wrapped around each well provide rapid pull-down and efficiency.
- The ¾ in (1.9 cm) integral drain automatically drains water required for hot operation when switching to cold/frozen.
- It ships ready to install, including mounting clips for counters up to 3 in (7.6 cm) thick and a 6 ft (1.8 m) cord with plug.
Product Specs
| Specification | Value |
|---|---|
| Model | FC-HCF-02208-FF |
| Wells / Capacity | 2 wells — each fits one full-size (12 × 20 in) pan or fractional equivalents up to 6 in deep |
| Material / Finish | 18-ga 300-series stainless steel top, wells, and user interface – flat flange |
| Operating Modes | Hot (wet), Cold, Frozen – selectable per well |
| Overall Dimensions | 33.9 W × 26 D × 24.4 H in (86.1 × 66.0 × 62.0 cm) |
| Countertop Cut-out | 33 ¹⁄₁₆ W × 25 ¼ D in (84 × 64.1 cm) · ⅜ in (9.5 mm) corner radius |
| Compressor | ¼ HP, self-contained |
| Refrigerant | R290 Hydrocarbon, 625 g charge |
| Electrical | 120/208-240 V | 60 Hz | 1-phase | 1,250 W | 6.6 A max | NEMA 14-20P |
| Net Weight | 185 lb (83.9 kg) |
| Certifications | UL Listed, NSF/ANSI 8, Made in USA |
| Warranty | 2-year parts & labor (see Vollrath warranty for details) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | UL Certified, Made in USA |
| Height | 24.4in |
| Width | 33.9in |
| Depth | 26.0in |
| Cooling Style | mechanically cooled |
| Type | hot/cold/frozen |
| Finish | stainless steel top, well & exterior |
| Controls | single controls |
| Pan Qty | 2-pan |
| Specifications | Hot/Cold/Frozen Food Well Unit, drop-in, 2-well, flat flange, accommodates full-size pans & fractional food pans up to 6" deep, independent electronic controls, 18 gauge/300 series stainles steel top, well, & user interface, interface includes 4' connection for mounting option, self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/4 HP, 120/208-240/60/1-ph, 1250 watts, 6.6 amps, NEMA 14-20P, Made in USA, UL Certified |
