Product Description

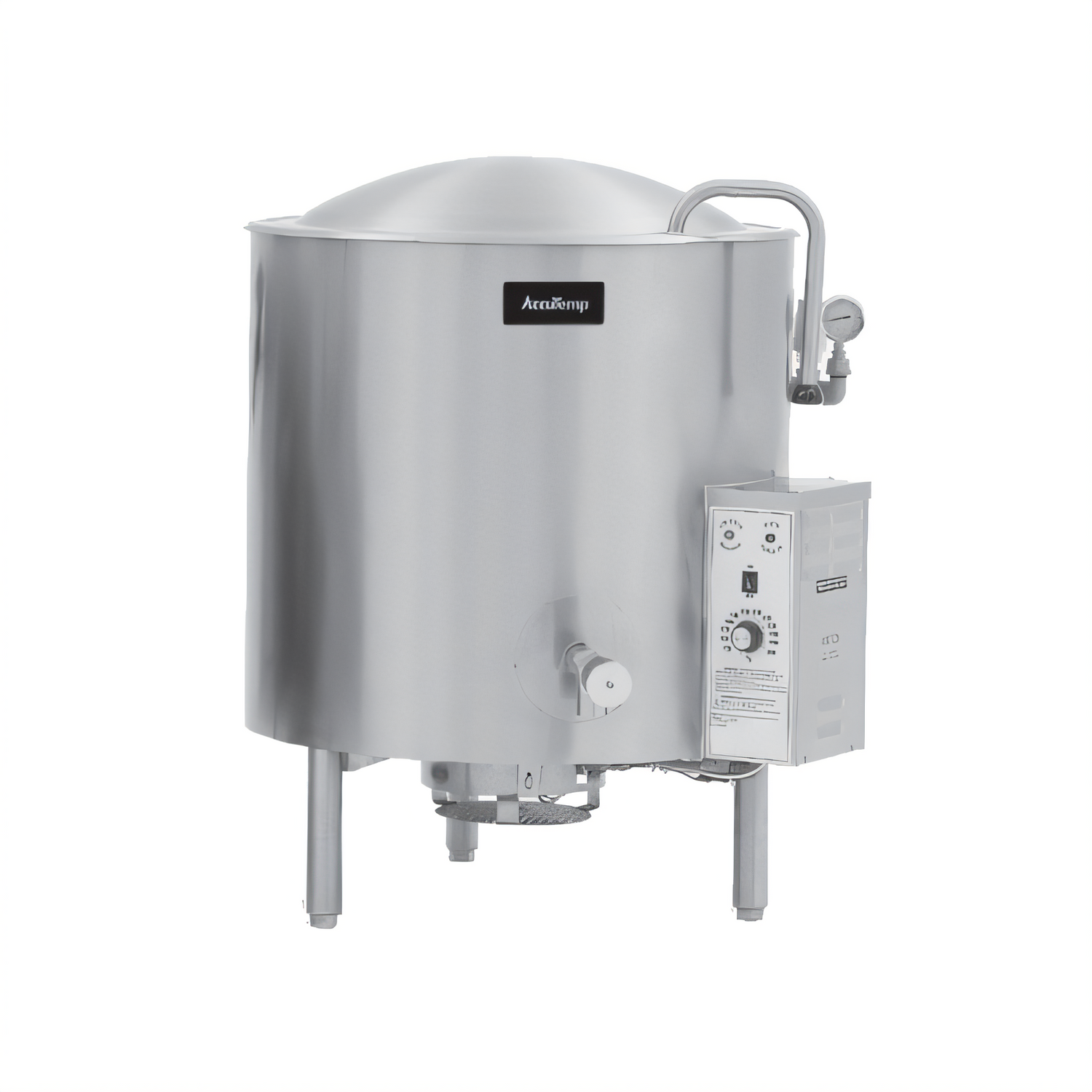

Model ALLGB-20F | UL & NSF Listed | Made in USA
The Edge Series™ 20-gallon kettle is designed for high-volume, high-precision production. It provides the even heat of steam cooking without the cost and complexity of an external boiler. With its fully jacketed, self-contained design, deep-drawn 316 stainless liner, and robust 30 PSI rating, it's the safe and energy-efficient way to batch soups, sauces, pastas, and more.
Key Features:
- Fully jacketed, self-contained design for even, energy-efficient heating
- Deep-drawn 316 stainless steel liner for superior durability and food safety
- Robust 30 PSI rating for safe, high-pressure steam cooking
- UL and NSF listed for commercial use
- Made in the USA for quality assurance
Product Specs
| Specification | Value |
|---|---|
| Capacity | 20 gal / 75.7 L (product) |
| Heat Source | Natural or Propane Gas, electronic ignition |
| Total Input | 66,700 BTU/h (Natural) | 67,800 BTU/h (LP) |
| Jacket Pressure | 30 PSI maximum, ASME rated |
| Temperature Range | 150 °F – 260 °F (65 °C – 126 °C) |
| Gas Connection | ½″ NPT, 5–7″ W.C. Natural | 12–14″ W.C. LP |
| Electrical | 120 V, 50/60 Hz, 1 Ø, 1 A (for controls & ignition) |
| Construction | 316 SS liner, 304 SS jacket & exterior, deep-drawn & seam-welded |
| Overall Dimensions* | 35.4″ W × 31.6″ D × 64.6″ H *from manufacturer dimensional drawing |
| Certifications | UL Gas-Fired, NSF, ANSI Z83.11b, Made in USA |
| Standard Warranty | 1-Year parts & labor, on-site service in U.S. & Canada |
Features
| Specification | Value |
|---|---|
| Manufacturer | AccuTemp |
| Brand Name | Edge Series™ |
| Certifications | NSF, UL |
| Height | 32.0in |
| Width | 34.4in |
| Capacity | 20 gal |
| Kettle Jacket | full jacket |
| Base | quad-leg |
| Kettle Liner | 316 stainless steel |
