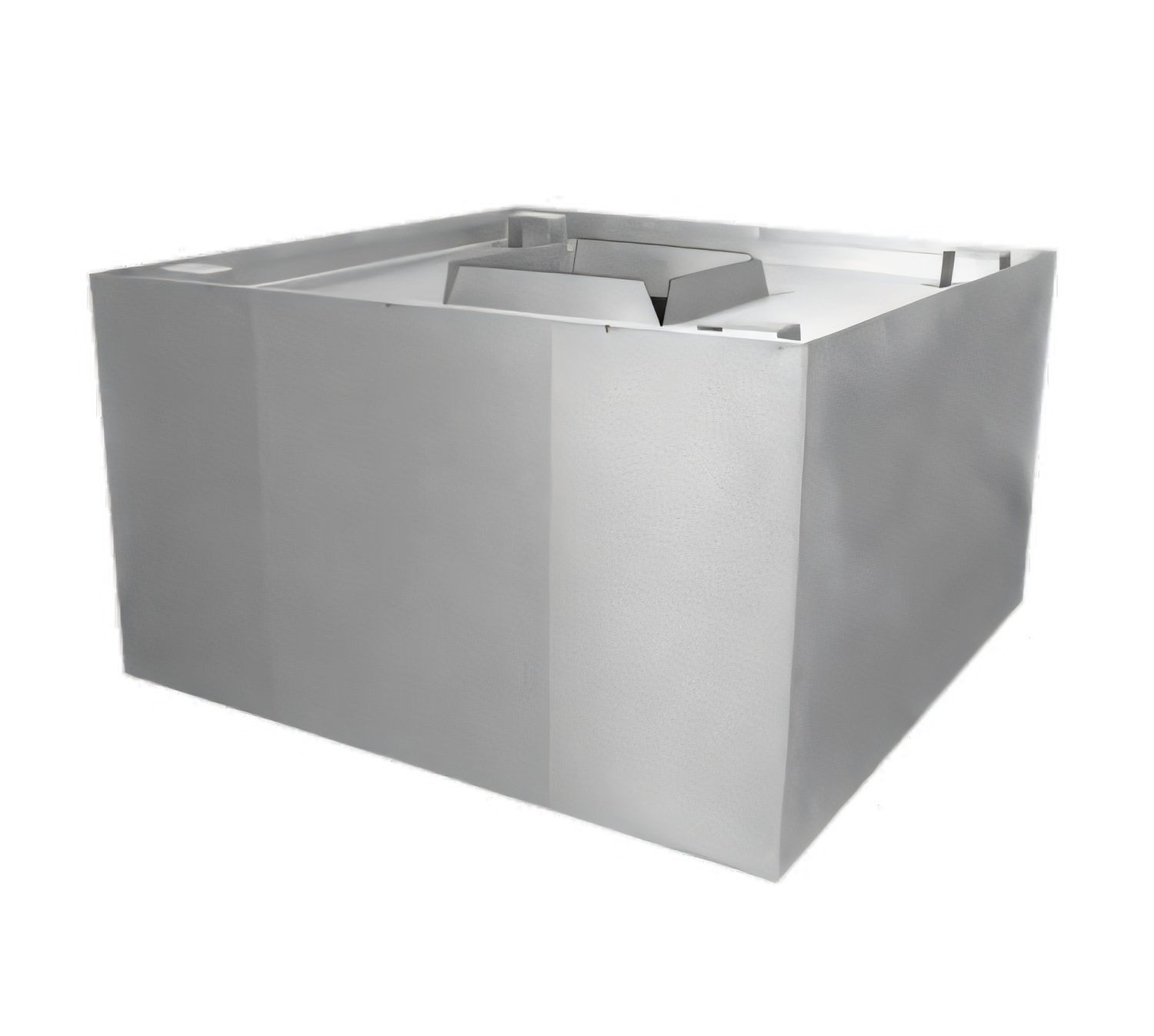

Advance Tabco CH-4242 Condensate Hoods
Product Description
The Advance Tabco CH-4242 condensate hood is a durable and efficient solution for capturing steam and excess moisture in various non-grease-producing environments, such as dishrooms and bakeries. Measuring 42 inches in length, 42 inches in depth, and 20.5 inches in height, this hood is constructed from heavy-duty 300-series stainless steel, ensuring long-lasting performance and reliable protection against wall, ceiling, and equipment damage.
Key Features:
- The enclosure is made of rugged 300-series stainless steel, which resists corrosion in high-humidity environments.
- The flanged, fully welded seams are sealed water-tight to prevent leaks.
- It has a 1 ½" internal gutter that channels condensation to a 3⁄8" rear drain.
- The top panel has an 8" × 10" exhaust opening centered on it, designed for field-supplied conduit.
- It comes with a factory-installed 2" high exhaust collar to simplify duct connection.
- The back panel is pre-notched to fit a 2" × 4" ledger for quick wall mounting.
- Wall or ceiling mounting brackets are included, allowing for flexible installation.
- The overall size is 42" L × 42" D × 20.5" H, with an approximate shipping weight of 140 lb.
- It ships without an exhaust fan or motor, making it ideal for integrating with existing ventilation systems.
Product Specs
| Specification | Value |
|---|---|
| Model | CH-4242 |
| Overall Dimensions | 42" L × 42" D × 20.5" H |
| Exhaust Opening | 8" × 10" (centered) |
| Exhaust Collar Height | 2" |
| Drain | 3⁄8" NPT (rear) |
| Internal Gutter | 1 ½" wide, full perimeter |
| Material | Type 300 stainless steel |
| Mounting | Wall or ceiling; back notched for 2" × 4" ledger |
| Approx. Shipping Weight | 140 lb |
| Listings/Approvals | Not UL or NFPA listed |
Features
| Specification | Value |
|---|---|
| Manufacturer | Advance Tabco |
| Height | 20" |
| Width | 42.0in |
| Depth | 42.0in |
| Shipping Weight | 140.0lbs |
| Hood Finish | stainless steel |
| Depth (front - back) | 42" |
| Mounting options | ceiling mount |
| Length | 42" |
| Specifications | Condensate Hood, 20.50"H, 42"L, 42"D, stainless steel, inside bottom gutter with a 3/8" drain at rear, back notched for a 2 x 4 for mounting, 8 x 10 opening for exhaust conduit centered in top (conduit by others) NO FAN |
