Description

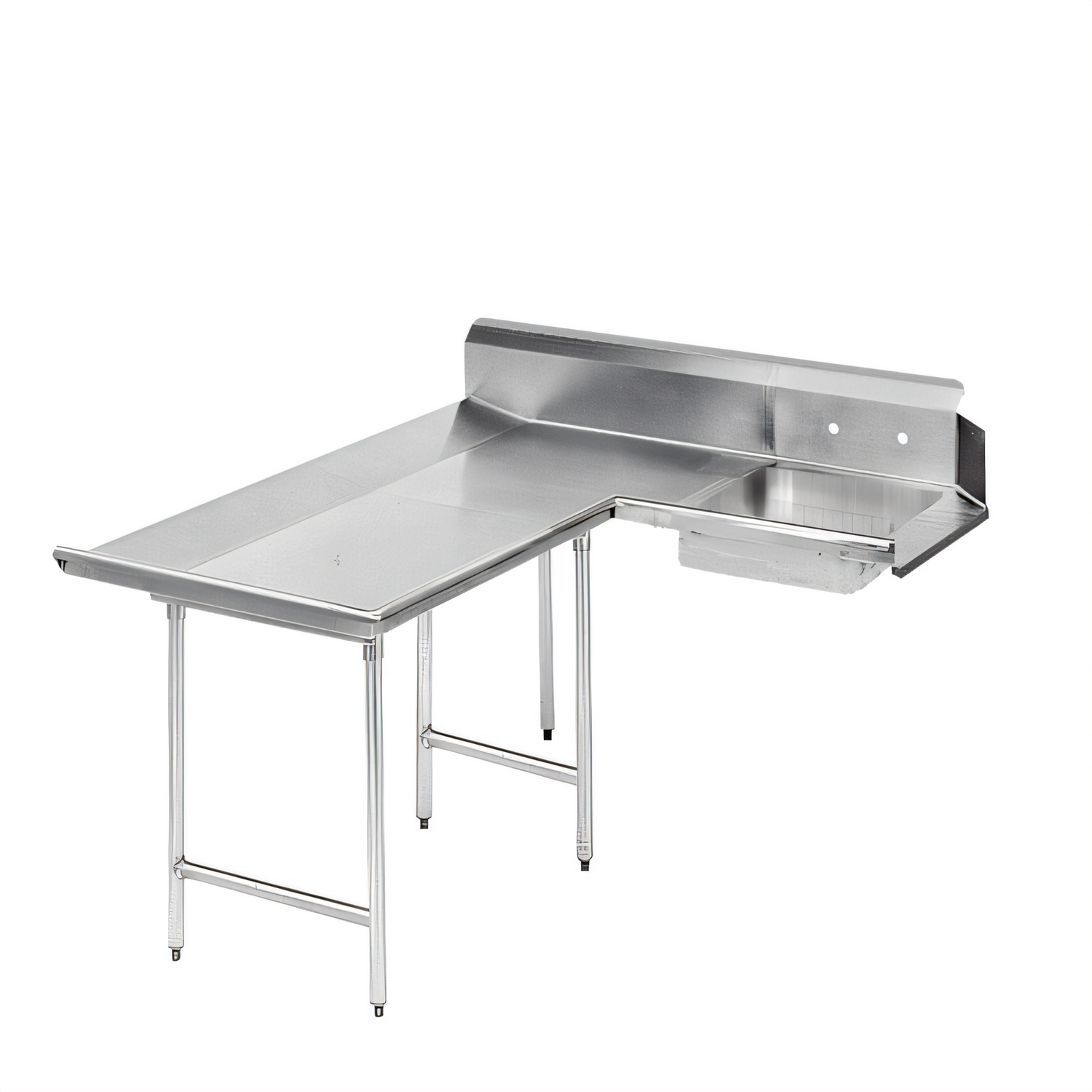

Advance Tabco DTS-D70-108L Compartment Sinks
Product Description
The Advance Tabco DTS-D70-108L is a high-quality, durable stainless steel table designed for busy commercial kitchens. Its large landing area and built-in pre-rinse sink make it ideal for high-volume warewashing tasks. The left-hand "L" configuration seamlessly integrates with the entry side of your dishwasher, improving workflow and containing any mess or splatter behind its 10-½" backsplash. Crafted with rugged 16-gauge 304 stainless steel, this table offers exceptional durability and is NSF listed for commercial use.
Why You'll Love It:
- The L-shaped design with a landing shelf keeps soiled racks off the floor and within easy reach of the pre-rinse station.
- The 10-½" high backsplash with a 2" tile-edge return contains water and simplifies wall installation.
- The 20" × 20" × 5" deep pre-rinse sink speeds up the scraping process, and the 1-½" IPS basket drain is factory-installed.
- The faucet holes are pre-punched on 8" centers, allowing you to easily add your favorite pre-rinse faucet (sold separately).
- The all TIG-welded 16 ga 304 stainless steel top has fully blended seams for a sanitary, satin finish.
- The 1-5/8" Ø 16 ga 304 stainless steel legs with welded crossrails and adjustable stainless bullet feet provide rock-solid stability.
- The nominal 9-ft length (107") provides ample landing space without overwhelming your dishroom.
- It's NSF certified and built in the USA, ensuring years of worry-free service.
Built to Work as Hard as You Do:
- The table's key components, including the top, legs, gussets, crossrails, and feet, are made of durable 304 stainless steel, making it well-suited for harsh, wet environments.
- The TIG welds are blended to seamlessly match the surrounding surfaces, preventing the formation of crevices that could harbor bacteria.
- The tile-edge backsplash is designed to sit flush against the wall tile, allowing for a neat, caulk-free installation.
- Adjustable bullet feet provide a 1-inch range of adjustment, allowing you to level the table on uneven floors.
What's Included:
- A fully assembled dishlanding soil dishtable in an L-shape, with the soil table on the left side.
- A pre-rinse sink with a basket drain.
- Stainless steel legs with welded crossrails and adjustable feet.
Product Specs
| Specification | Value |
|---|---|
| Manufacturer / Model | Advance Tabco DTS-D70-108L |
| Series | Standard Dishlanding Soil |
| Overall Length | 107" (Nominal 9 ft) |
| Orientation | Left side of dishmachine (operator faces machine) |
| Top Material | 16 ga 304 Stainless Steel |
| Legs & Bracing | 1-5/8" Ø 16 ga 304 SS legs with welded crossrails & stainless bullet feet |
| Backsplash | 10-½" H with 2" tile-edge return |
| Sink Bowl | 20" × 20" × 5" deep pre-rinse bowl, 1-½" IPS basket drain included |
| Faucet Holes | Punched on 8" centers (faucet not included) |
| Approx. Shipping Weight | 320 lb |
| Certifications | NSF |
Features
| Specification | Value |
|---|---|
| Manufacturer | Advance Tabco |
| Height | 44.0in |
| Shipping Weight | 285.0lbs |
| Stainless Series | 300 series |
| Width (machine - corner) OA | 61" - 72" |
| Shape | corner |
| Splash Height | 10"H splash |
| Leg Type | stainless steel legs |
| Width (end - corner) OA | 97" - 108" |
| Direction | left to right |
| Stainless Gauge | 16 gauge |
| Specifications | Dishlanding-Soil Dishtable, L-shaped with landing, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 107" long, 16/304 stainless steel |
