Product Overview

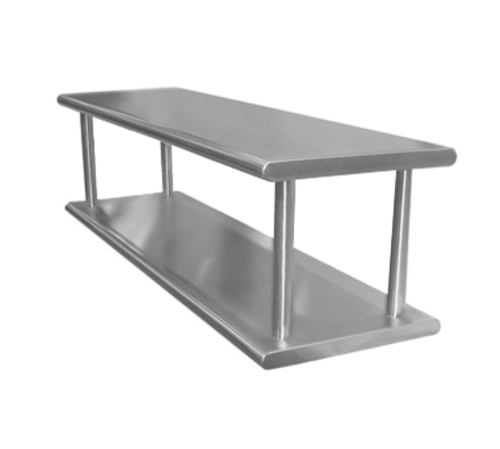

This double tier pass-thru shelf measures 132"W x 24"D. It is built from 18/430 stainless steel and has bull nose edges on the front and rear with square sides.

Key Features

• Double tier design
• 132"W x 24"D dimensions
• Bull nose front and rear with square sides
• 18/430 stainless steel construction
• 1-5/8" stainless steel tubing post
• Galvanized hat channel

Mounting and Hardware

The shelf includes 5" x 7" stainless steel cantilever mounting brackets to secure it to the wall.

Shelf Spacing

The upper shelf work surface is 14" above the lower shelf work surface.

Important Note

The lower shelf work surface will be 1-1/2" higher than the wall it rests on.

Specifications

• Type: Pass-Thru Shelf, double tier
• Width: 132"
• Depth: 24"
• Edges: Bull nose front and rear, square sides
• Material: 18/430 stainless steel
• Post: 1-5/8" stainless steel tubing
• Support: Galvanized hat channel
• Included: 5" x 7" stainless steel cantilever mounting brackets
• Distance between work surfaces: 14"
