Product Overview

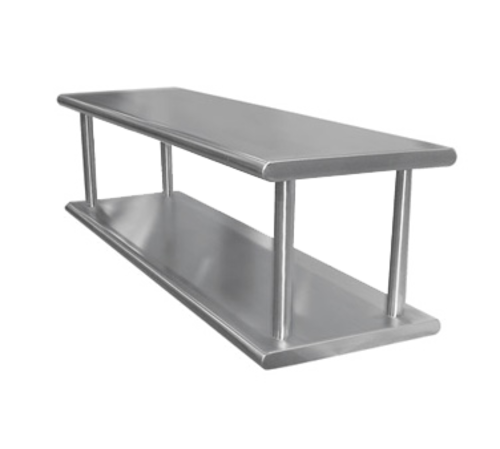

This double tier pass-thru shelf measures 144"W x 24"D and gives you two work surfaces. It is built with 18/430 stainless steel and has bull nose edges on the front and rear with square sides.

Key Features

• Double tier design
• Overall size: 144"W x 24"D
• Bull nose front and rear with square sides
• 18/430 stainless steel construction
• 1-5/8" stainless steel tubing post
• Galvanized hat channel

Mounting & Installation

The shelf includes 5" x 7" stainless steel cantilever mounting brackets to secure it to the wall.

Work Surface Details

• The upper shelf work surface is 14" above the lower shelf work surface.
• The lower shelf work surface will be 1-1/2" higher than the wall it rests on.

Specifications

• Type: Pass-Thru Shelf, double tier
• Width: 144"
• Depth: 24"
• Edge Style: Bull nose front and rear, square sides
• Material: 18/430 stainless steel
• Post: 1-5/8" stainless steel tubing
• Support: Galvanized hat channel
• Mounting Brackets: 5" x 7" stainless steel cantilever brackets, included
• Distance Between Work Surfaces: 14"
