Description

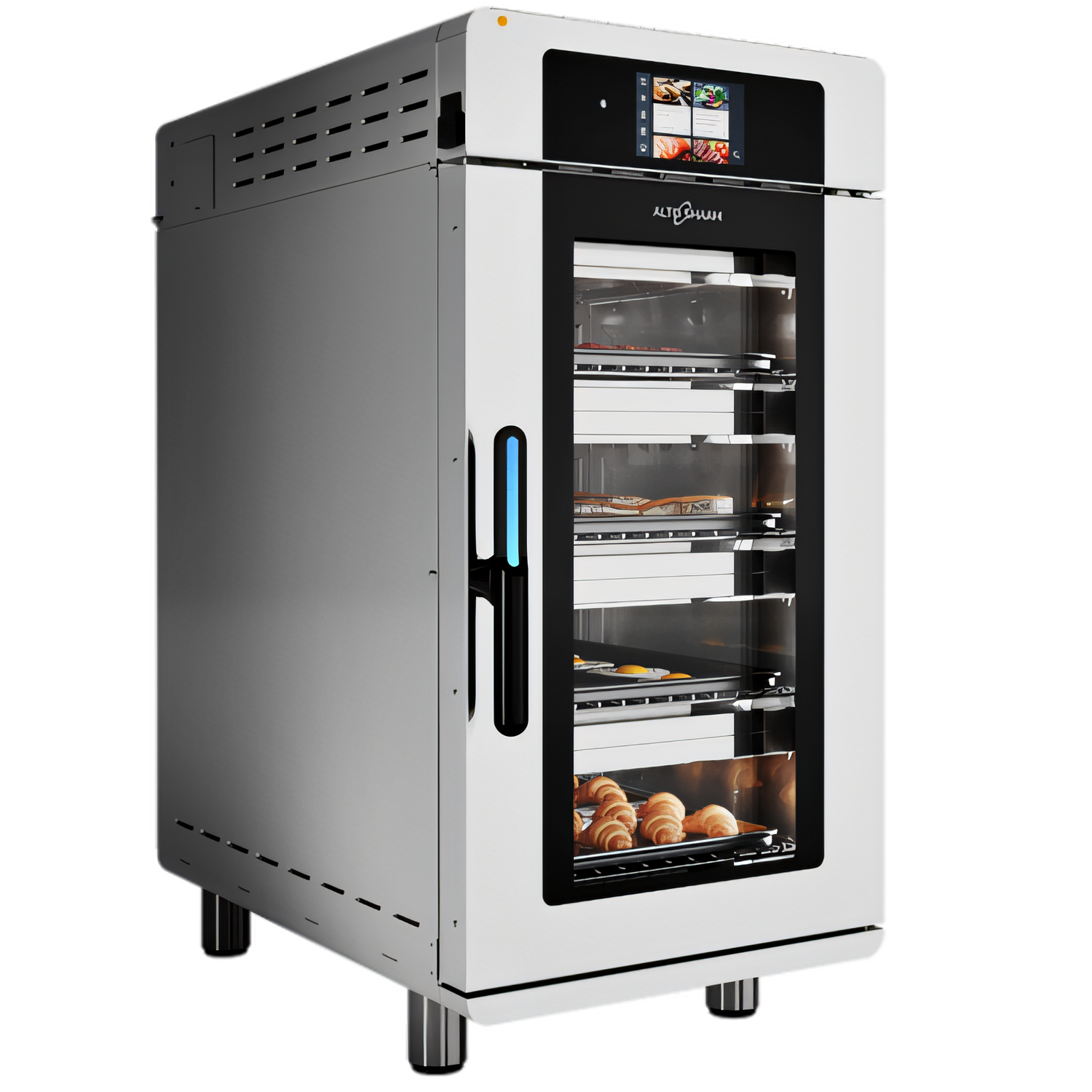

Alto-Shaam VMC-H4H Vector Series Combi Ovens
Product Description
The Vector H Series countertop ventless oven maximizes production, variety, and consistency in a compact footprint. With four independently controlled cooking chambers, you can simultaneously prepare four different menu items at diverse temperatures without flavor transfer. Exclusive Structured Air Technology® surrounds food with high-velocity, focused heat for dramatically faster and more even cooking, while the built-in catalytic converter eliminates the need for a kitchen hood. Manufactured in the USA.
Why You'll Love It:
- The oven has four independently controlled chambers, allowing you to set unique time, temperature, and fan speed for each one.
- It can hold four half-size sheet pans (18" × 13") or four full-size hotel pans (20 3⁄4" × 12 3⁄4").
- The oven operates without the need for a traditional hood or plumbing connection, as it is ventless and waterless.
- The intuitive programmable touchscreen can store hundreds of recipes, and you can upload new ones via USB.
- The Structured Air Technology® delivers faster cook times and eliminates the need to watch or rotate the pans.
- The double-pane glass door and bright LED lighting showcase the product while keeping the exterior cool to the touch.
- The ChefLinc™ (deluxe control) feature provides cloud-based remote oven management and data analytics.
- The oven is made of durable stainless-steel construction and has 4" (102 mm) adjustable legs for easy cleaning underneath.
- The oven is cULus & UL EPH Classified for sanitation and has an IPX4 rated splash protection.
Included With Your Oven:
- One wire rack per oven chamber to hold your food.
- Two jet plates per oven chamber that help circulate the air for optimal cooking.
- A built-in catalytic converter and removable grease filters for easy cleaning.
- A USB port on the front of the oven for transferring recipes and downloading software updates.
Installation Notes:
- Make sure there is at least 2 inches (51 millimeters) of space on the sides and back of the oven, and 20 inches (508 millimeters) of space in front.
- The oven must be placed on a level surface and is not designed to be built into cabinets.
- You can place the oven on a countertop or an optional Alto-Shaam stand; 3-inch caster kits are available.
Product Specs
| Specification | Value |
|---|---|
| Cooking Chambers | 4 independent chambers, 525 °F (274 °C) max. |
| Pan Capacity | 4 half-size sheet pans or 4 full-size hotel pans* |
| Exterior Dimensions (H × W × D) | 43 5⁄8" × 21 1⁄2" × 37 1⁄2" (1108 × 546 × 953 mm) – H4 43 5⁄8" × 21 1⁄2" × 39 1⁄2" (1108 × 546 × 1003 mm) – H4H |
| Electrical (standard) | 208–240 V, 3 PH, 10.6 – 13.9 kW, 40 A, NEMA 15-50P (cord & plug supplied) 380–415 V, 3 PH models available (no cord) |
| Net Weight | 341 lb (155 kg) – H4356 lb (161 kg) – H4H |
| Certifications | cULus, UL EPH Classified, CE, IPX4 |
Features
| Specification | Value |
|---|---|
| Manufacturer | Alto-Shaam |
| Brand Name | Vector Series |
| Certifications | cULus, UL EPH Classified, Made in USA |
| Height | 43.63in |
| Width | 21.5in |
| Depth | 39.5in |
| Shipping Weight | 425.0lbs |
| Full Size Hotel Pan Capacity | (4) 12" x 20" pans |
| Gas or Electric Type | electric |
| Half Size Sheet Pan Capacity | (4) 13" x 18" pans |
| Control Type | programmable controls |
| Specifications | Vector® H Series Multi-Cook Oven, electric, (4) individually controlled cooking chambers, holds (4) half-size sheet pans or (4) full-size hotel pans, programmable touch screen controls with Structured Air Technology®, double pane glass door, interior LED cavity lighting, ventless catalytic converter, includes: (1) wire rack & (2) jet plates per cooking chamber, USB port, stainless steel construction, 4" adjustable legs, cULus, UL EPH Classified, Made in USA |
