Description
Channel Manufacturing WS02 Refrigeration Accessories
Product Description

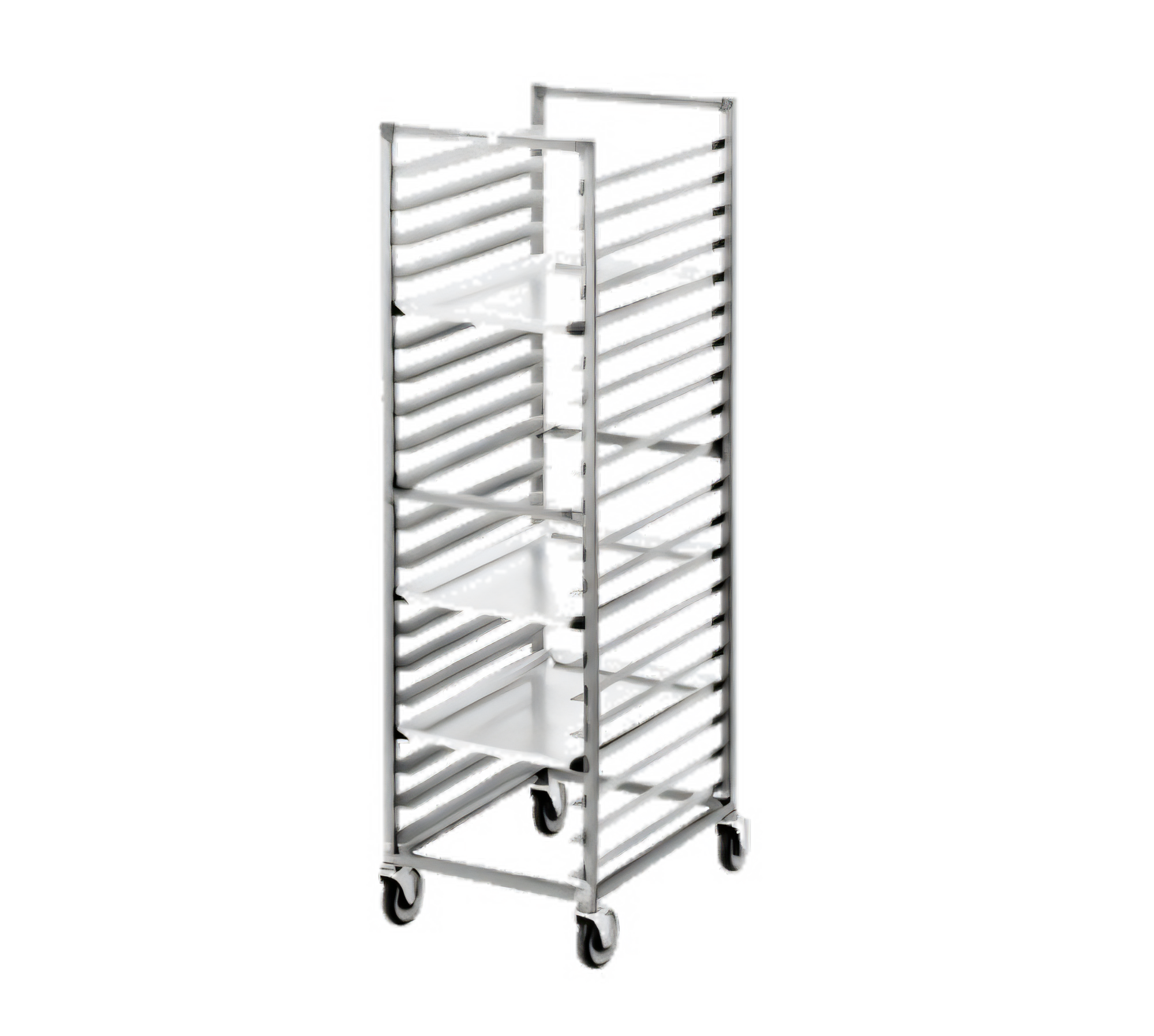

The Channel CPS45U is a durable 27-pan rack designed for use in demanding commercial kitchen environments like walk-in coolers and freezers. Featuring heavy-duty 304 stainless steel construction and welded angle slides, this rack can securely hold full-size and half-size sheet pans with 2-inch spacing. Five-inch swivel plate casters allow for easy repositioning, even when the rack is fully loaded. The CPS45U ships fully assembled on a pallet, and lift-gate delivery service is recommended if a loading dock is unavailable.
Key Features:
- The cart is made of high-quality 18-gauge, 304 series stainless steel, which provides maximum resistance to corrosion.
- The end-load design allows you to easily load and unload (27) 18" × 26" full-size sheet pans or (54) 13" × 18" half pans (two per ledge).
- The 2" angle spacing keeps the product low-profile while maintaining a high-capacity storage solution.
- The tray slides are continuously heli-arc welded with 1" × 1-1/2" dimensions, ensuring no loose rivets over time.
- The (4) 5" full-swivel non-marking plate casters provide smooth and quiet mobility.
- This cart is designed for use in both cooler and freezer applications.
- The cart is NSF listed and proudly made in the USA.
Popular Options (sold separately):
- Caster brakes can be installed on the product after purchase. The part number for this option is /011.
- The product can be equipped with 5-inch by 2-inch heavy-duty casters. The part number for this option is /052.
- You can add corner, perimeter, or vertical bumpers to the product. The part numbers for these options are /022, /024, /PB, and /VB.
- Aluminum or stainless steel pan stops can be added to the product. The part numbers for these options are /009 and /010.
- Card clips and ID tags can be added to the product. The part number for this option is /CC.
Product Specs
| Specification | Value |
|---|---|
| Model | CPS45U |
| Overall Dimensions (W × D × H) | 20.5" × 26" × 64" |
| Slide Spacing | 2" center-to-center |
| Pan Capacity | 27 full-size (18" × 26")54 half-size (13" × 18") |
| Load Orientation | End / Front Load |
| Caster Type | (4) 5" swivel plate, non-marking rubber |
| Construction | 18-gauge 304 stainless steel |
| Unit Weight | 70 lb (item weight only) |
| Approx. Shipping Weight | ≈120 lb (includes 50 lb pallet) |
| Certifications | NSF |
| Country of Origin | USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Channel Manufacturing |
| Certifications | NSF, Made in USA |
| Height | 64.0in |
| Width | 20.5in |
| Depth | 26.0in |
| Shipping Weight | 70.0lbs |
| Loading | end load |
| Centers | 2" |
| 18" x 26" Sheet Pan Capacity | 20 - 30 pan |
| Construction | stainless steel |
| Specifications | Bun Pan Rack, Walk-In, Stainless Series, 20.5"W x 26"D x 64"H, Stainless Steel Construction, End Load, 2" Angle Spacing, (27) 18" x 26" or (54) 13" x 18" pans (2 per shelf), 5" Swivel Plate Casters model # CPS45U, Made in USA, NSF, 70lbs. (ITEM WEIGHT ONLY), weight does not include 50 lbs. for pallet weight |
Documents
CAD Files
Certifications
