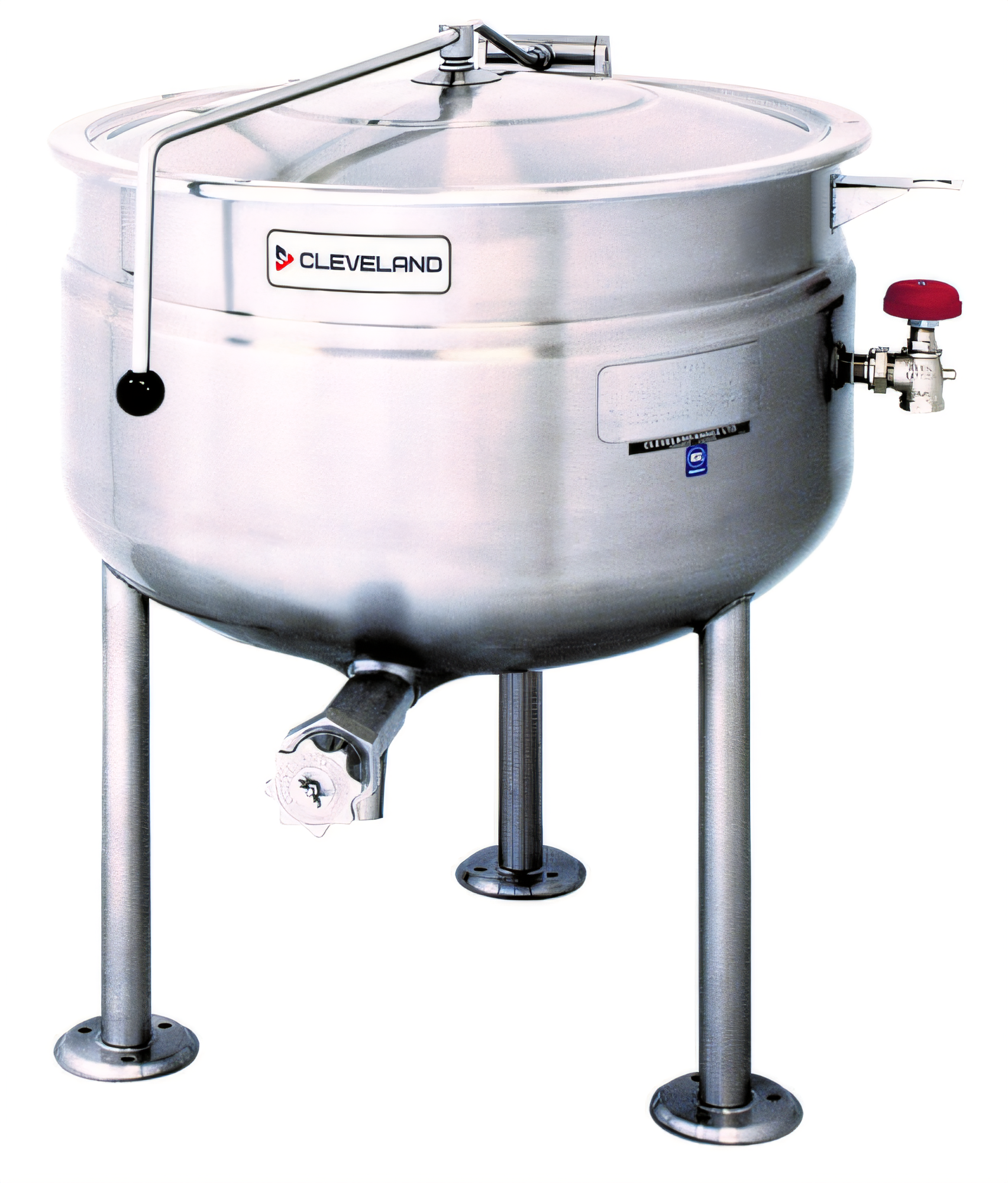

Cleveland Range KDL125F Steam Kettles

Cleveland Range KDL125F - Kettle, direct steam, 125-gallon capacity, full steam jacket design, open tri-leg base, stainless



Regular price $57,227.00
$57,227.00
Sale price
Regular price
Sale Sold out

From $1,087.31/week with



Need more information? Contact us today!

Cleveland Range KDL125F Steam Kettles

Product Description

The Cleveland KDL-125-F is a powerful and reliable commercial kettle designed to streamline your food preparation operations. Featuring a massive 125-gallon (475 L) capacity, this kettle is built with a durable 316 stainless steel liner and a full steam jacket that provides precise, even heating - perfect for high-volume settings like central kitchens, commissaries, schools, and hospitals. With a 35 psi rating, this kettle can handle your toughest cooking tasks efficiently, allowing you to move more product, faster.

Performance & Productivity:

  • This machine can produce up to 2,000 servings (8 oz each) per batch.
  • The full-jacket design surrounds the kettle with steam for fast heating and even cooking.
  • The stainless-steel liner can withstand acidic ingredients like tomato sauce and chili.
  • The low, 37-inch working height and one-handed spring-assisted lid keep operators comfortable and safe.
  • The 2-inch draw-off valve with stainless steel strainer allows for mess-free portioning and transferring of the product.
  • The open 304 stainless steel tri-leg base with adjustable, flanged feet provides a stable, floor-bolted installation and easy cleaning underneath.
  • The factory-mounted steam inlet valve, condensate drain valve, and faucet bracket simplify the hook-up process.
  • This machine is NSF and ASME certified, and the chrome-plated safety valve is set to 35 psi for reliable protection.

What's Included:

  • The steam kettle, model KDL-125-F, comes fully assembled and tested at the factory.
  • A 2-inch draw-off valve and strainer are installed on the kettle.
  • The cover has a spring-assist mechanism for easy opening and closing.
  • The kettle includes steam inlet and condensate drain valves.
  • A 35 psi safety relief valve is installed for your protection.
  • A faucet mounting bracket is provided.
  • You will receive an owner's manual and warranty registration information.

Popular Accessories (add-ons):

  • Hot and cold water filler hose: This 60-inch hose allows you to fill the kettle with either hot or cold water.
  • Steam control kit: This kit includes a steam trap and pressure relief valve to help manage the steam produced by the kettle.
  • Valves: Choose from 3-inch butterfly or draw-off valves to control the flow of liquid from the kettle.
  • Basket inserts and tri-basket supports: These accessories provide additional ways to organize and use the interior of the kettle.
  • Lift-off cover: This removable cover makes it easier to access the contents of the kettle.
  • Measurement markings: The kettle is equipped with gallon and liter markings to help you measure the contents.

Product Specs

Specification Value
Capacity 125 gal / 475 L
Production ≈ 2,000 servings (8 oz)
Steam Supply Direct steam, 5–30 psi (jacket rated 35 psi)
Interior 316 SS, bead-blasted finish
Exterior All stainless steel with reinforced rolled rim
Base & Legs 1 5/8 in. Ø 304 SS tri-legs, flanged, height-adjustable
Draw-Off Valve 2 in. tangent, removable SS strainer
Cover Domed, hinged, spring-assist (one-piece)
Safety Valve Chrome-plated, factory-set 35 psi
Controls Manual steam inlet & condensate drain valves
Certifications NSF • ASME • CSA
Shipping Weight ≈ 410 lb / 186 kg

Features

Specification Value
Manufacturer Cleveland Range
Shipping Weight 410.0lbs
Kettle Jacket full jacket
Base tri-leg
Capacity 80 - 150 gallon
Kettle Liner 316 stainless steel
Specifications Kettle, direct steam, 125-gallon capacity, full steam jacket design, open tri-leg base, stainless steel exterior finish with 316 series stainless steel liner, standard with flanged feet, faucet bracket, steam control valve, 2" tangent draw-off & strainer, spring assist cover, 35 psi rating

Pricing, availability, and product details are subject to change without notice. 24/7 Restaurant Equipment is not responsible for typographical errors or omissions. Freight charges may apply where applicable.
