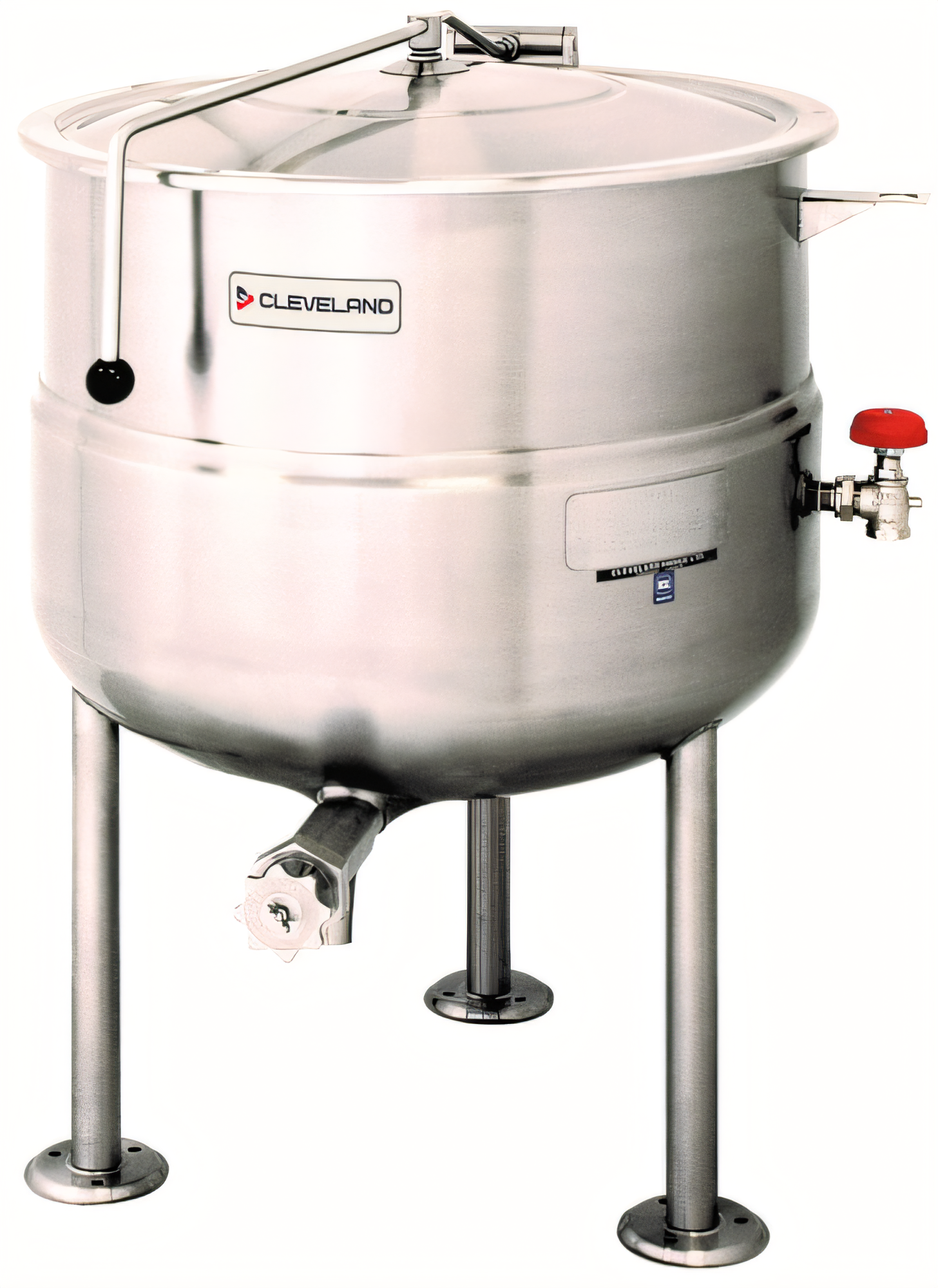

Cleveland Range KDL80 Steam Kettles

Cleveland Range KDL80 - Kettle, direct steam, 80-gallon capacity, 2/3 steam jacket design, open tri-leg base, 316 series



Regular price $18,412.00
$18,412.00
Sale price
Regular price
Sale Sold out

From $349.83/week with



Need more information? Contact us today!

Cleveland Range KDL80 Steam Kettles

Product Description

The Cleveland KDL-80 kettle is the ideal solution for handling your restaurant's high-volume soup, sauce, and stock preparation needs. With a generous 80-gallon (300 L) capacity, this durable stainless steel kettle utilizes direct steam heating to provide consistent, energy-efficient cooking performance, even on the busiest commercial kitchen lines.

Key Features:

  • The kettle has an 80-gallon (300 L) capacity, producing about 1,280 eight-ounce servings per batch.
  • The 2/3 steam-jacketed design allows for rapid heat-up and uniform temperatures.
  • The Type 316 stainless steel interior resists acidic, salty, and tomato-based recipes.
  • The open tri-leg base has 1.63" O.D. 304 SS tubular legs and level-adjustable flanged feet.
  • The spring-assisted domed cover is hinged and operates with one-hand, staying in the position you leave it.
  • The 2" tangent draw-off valve has a removable strainer for safe and controlled product transfer.
  • The factory-installed manual steam control inlet valve allows for precise regulation.
  • The heavy, reinforced rolled rim can withstand daily utensil contact and transport carts.
  • The 50 psi ASME-coded jacket includes a chrome-plated safety valve and condensate drain valve.
  • The unit is NSF-listed and ASME-certified for commercial foodservice applications.

Popular Accessories (Sold Separately):

  • Chrome-plated steam control kit that includes a trap, strainer, and check valve (SCK1)
  • 3-inch butterfly or tangent draw-off valve assemblies
  • Kettle filler with a 60-inch hose that can be hot/cold or cold-only
  • Cooking baskets, tri-basket supports, and measuring strips
  • Automatic water meter and stand
  • Insulated outer jacket to provide additional energy savings

Product Specs

Specification Value
Model KDL-80 (Direct Steam)
Capacity 80 gal / 300 L
Servings (8 oz) Approx. 1,280
Steam Jacket Coverage Two-thirds (2/3) of kettle body
Jacket Pressure Rating 50 psi (3.4 bar)
Required Incoming Steam 5 – 45 psi, direct connection
Interior Material 316 series stainless steel
Exterior / Legs 304 series stainless steel
Base Type Open tri-leg with adjustable flanged feet
Cover Spring-assisted, domed, hinged
Product Draw-Off 2" tangent valve with strainer
Standard Controls Manual steam inlet valve, condensate drain valve
Certifications NSF, ASME
Warranty 1-year parts & labor + 4-year prorated jacket coverage

Features

Specification Value
Manufacturer Cleveland Range
Shipping Weight 290.0lbs
Kettle Jacket partial jacket
Kettle Liner 316 stainless steel
Base tri-leg
Capacity 80 - 150 gallon
Specifications Kettle, direct steam, 80-gallon capacity, 2/3 steam jacket design, open tri-leg base, 316 series stainless steel interior, standard with flanged feet, steam control valve, 2" tangent draw-off, spring assist cover, 50 psi rating
