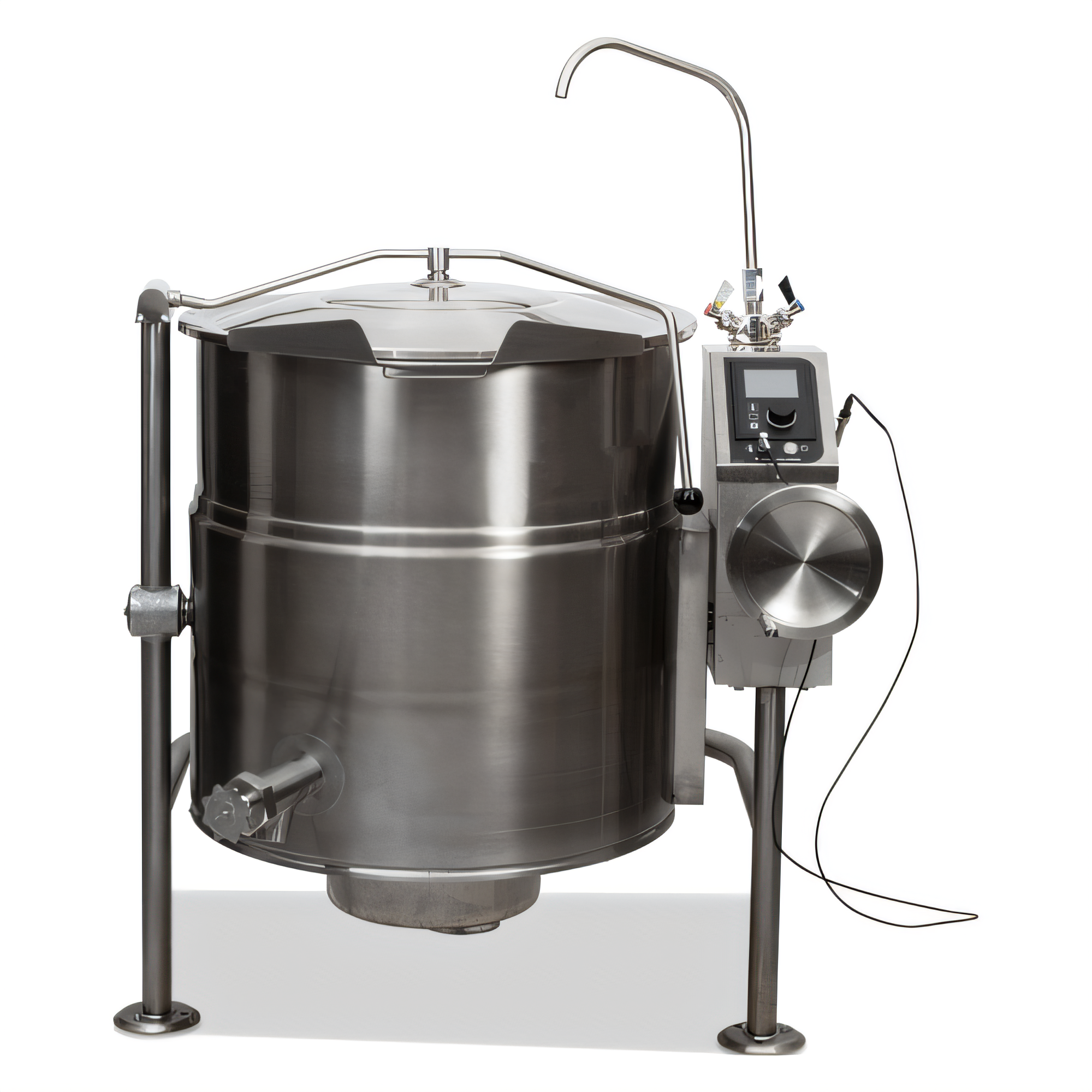

Cleveland Range KEL100T Steam Kettles

Cleveland Range KEL100T - Kettle, electric, tilting, 100-gallon capacity, 2/3 steam jacket design, solid state water level



Regular price $44,381.00
$44,381.00
Sale price
Regular price
Sale Sold out

From $843.24/week with



Need more information? Contact us today!

Cleveland Range KEL100T Steam Kettles

Product Description

This robust kettle from Cleveland Range can produce up to 1,600 eight-ounce servings in a single, easy-to-pour batch. Featuring a sturdy 304/316 stainless-steel construction, solid-state precision, and a smooth tilting action, this kettle allows a single person to handle even the heaviest soups, sauces, chowders, and braises with confidence. Equipped with a self-contained 2/3 steam jacket, the kettle can operate at up to 50 psi and is IPX6 rated, making it a durable and reliable choice for commercial kitchens.

Why you'll love it:

  • Massive capacity: This unit holds up to 100 gallons or 375 liters, which is equivalent to 1,600 servings of 8 ounces each.
  • Self-contained and low-maintenance: The 2/3 steam jacket is permanently filled, so there's no need for a separate boiler, venting, or refilling.
  • Durable construction: The 316 stainless-steel liner resists acidic foods, and the 304 stainless-steel exterior with a #4 finish is easy to clean.
  • Precise temperature control: The splash-proof solid-state controls maintain the set temperature within ±1°C (±1.8°F) range from 145°F to 260°F (63°C to 127°C).
  • Intuitive user interface: LED indicators clearly show the power, heat cycle, and low-water status, keeping operators informed at a glance.
  • Reliable water-level control: The solid-state water-level control eliminates the need for a breakable or leaky sight glass.
  • Smooth and stable tilt: The balanced tilt mechanism, with roller bearings and a self-locking worm & segment gear, ensures smooth and stable operation.
  • Sturdy and secure base: The open tri-leg base, with 1 5/8" diameter flanged and bolt-down feet, provides rock-solid stability.
  • Higher cooking temperatures: The 50 psi jacket rating allows for higher cooking temperatures, resulting in faster throughput.
  • Leak-proof design: The welded-in heating elements maintain a better vacuum seal, preventing leaks.
  • Certified for worldwide use: This unit is UL, CSA, NSF, ASME, and CE listed, providing peace of mind for users worldwide.

Popular options (sold separately):

  • The spring-assisted, domed stainless-steel cover (CHS) provides convenient, easy-to-use access.
  • The 2" or 3" tangent draw-off valve (TD2 / TD3) allows for efficient and controlled dispensing of contents.
  • The easyDial™ programmable control panel offers user-friendly customization and control.
  • The hot and cold water faucet with a swing spout provides flexible water access.
  • Additional options include a core temperature probe, food strainers, basket supports, and more.

Product Specs

Specification Value
Capacity 100 gal / 375 L
Construction 304 SS exterior, 316 SS liner (food zone)
Jacket design Self-contained 2/3 jacket, 50 psi
Controls Solid-state thermostat (1-10 dial), LEDs for heat & low water
Temperature range 145 – 260 °F / 63 – 127 °C
Electrical (standard) 208–240 V, 60 Hz, 3 Φ, 29.4 kW (81.7 A @ 208 V)
Ingress rating IPX6 (high-pressure water-jet safe)
Tilt Manual crank, worm & gear, 100 ° pour angle
Overall dimensions* W 51" × D 48.9" × H 71.3"
Shipping weight 520 lb / 236 kg
Service clearance 12" on right side
Certifications UL, CSA, NSF, ASME, CE

Features

Specification Value
Manufacturer Cleveland Range
Certifications CE, IPX6
Width 56.63in
Depth 49.5in
Shipping Weight 520.0lbs
Base tri-leg
Capacity 80 - 150 gallon
Kettle Liner 316 stainless steel
Kettle Jacket partial jacket
Specifications Kettle, electric, tilting, 100-gallon capacity, 2/3 steam jacket design, solid state water level control, open tri-leg base, 304 stainless steel construction with 316 series stainless steel liner, flanged feet, 50 psi rating, cover & draw-off optional, IPX6, CE
CE
CECE Mark – This product conforms to European Union health, safety, and environmental protection requirements.
IPX6
IPX6IPX6 Certified – This product has been tested and meets the requirements for this certification.
