Description

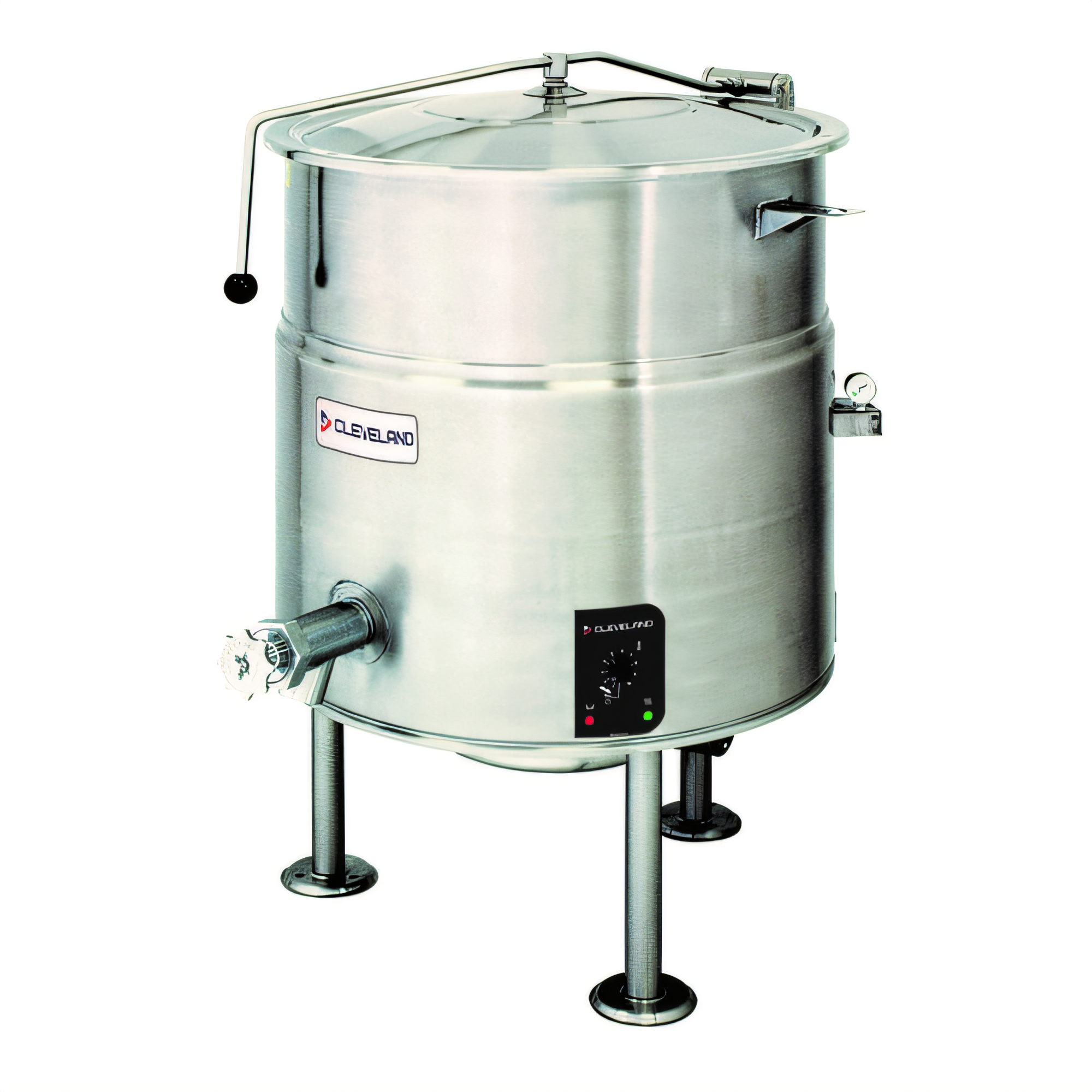

Cleveland Range KEL25 Steam Kettles
Product Description
The Cleveland KEL-25 is a high-performance 25-gallon electric kettle designed for fast, precise cooking in high-volume kitchen environments. Its sturdy, splash-proof construction features a stationary 2/3 jacket and a tri-leg base that can be securely mounted to the floor, ensuring stability even during heavy use. With a maximum pressure of 50 psi, this kettle harnesses the power of steam for rapid heating, while advanced solid-state electronics provide precise temperature control. For details on the product warranty and coverage, please contact the manufacturer.
Key advantages:
- The kettle has a 2/3 steam jacket rated for 50 psi, allowing it to heat up faster to 260 °F (127 °C).
- The steam jacket is permanently sealed, so there is no need for a boiler, venting, or refilling.
- The temperature and water-level controls are solid-state, providing ±1 °C accuracy, with LED status lights.
- The control housing is IPX6 water-resistant, and the element cover has a double gasket.
- The domed cover is spring-assisted and hinged for safer, one-handed operation.
- The 2-inch tangent draw-off valve has a removable strainer, making it ideal for stocks and sauces.
- The generous pouring lip can handle chunky products without spills.
- The exterior is made of 304 stainless steel with a reinforced rolled rim, and the cooking liner is 316 stainless steel.
- The open 1 5⁄8-inch O.D. tri-leg base has flanged, floor-bolting feet for rock-solid stability.
- The rear-mounted pressure gauge and relief valve are tamper-resistant and easy to read.
- A faucet mounting bracket is included for quick kettle filling (faucet optional).
- The kettle is UL, CE, NSF, and ASME certified.
What's included:
- A stainless steel kettle assembly with a 2-inch draw-off valve and a strainer to filter the contents.
- A spring-assisted, hinged cover that makes it easy to open and close the kettle.
- A faucet bracket that allows you to install a hot/cold swing spout (the spout is not included).
- Factory start-up by an Authorized Service Agent, if requested.
Popular accessories (sold separately):
- A hot and cold swing spout faucet kit is available, known as the DPK model.
- A kettle accessory kit includes brushes, a paddle, a whip, and a ladle.
- Cooking baskets and tri-basket supports are offered as accessories.
- An automatic water meter is available as an add-on.
- Flow diverters and drain funnels can be purchased separately.
Product Specs
| Specification | Value |
|---|---|
| Model | KEL-25 |
| Capacity | 25 US gal / 100 L |
| Heating | Electric, self-contained; welded-in elements |
| Steam jacket | 2/3 coverage, permanently filled, 50 psi |
| Temperature range | 145 – 260 °F (63 – 127 °C) |
| Power (standard) | 9.8 kW @ 208 V / 3-ph | 13.1 kW @ 240 V / 3-ph |
| Exterior dimensions* | 38″ W × 38″ D × 54″ H |
| Shipping weight* | ≈ 240 lb (109 kg) |
| Ingress rating | IPX6 splash-proof |
| Construction | 304 SS shell, 316 SS liner, #4 polish |
| Certifications | UL, CE, NSF, ASME |
Features
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Certifications | CE, IPX6 |
| Height | 36.75in |
| Width | 29.88in |
| Depth | 34.0in |
| Shipping Weight | 240.0lbs |
| Kettle Jacket | partial jacket |
| Capacity | 18 - 26 gallon |
| Kettle Liner | 316 stainless steel |
| Base | tri-leg |
| Specifications | Kettle, electric, 25-gallon capacity, 2/3 steam jacket design, open tri-leg base, faucet bracket, strainer, 50 psi rating, solid state water level control, 2" tangent draw-off, spring-assisted cover, 304 stainless steel construction with 316 series stainless steel liner, flanged feet, IPX6, CE |
