Description

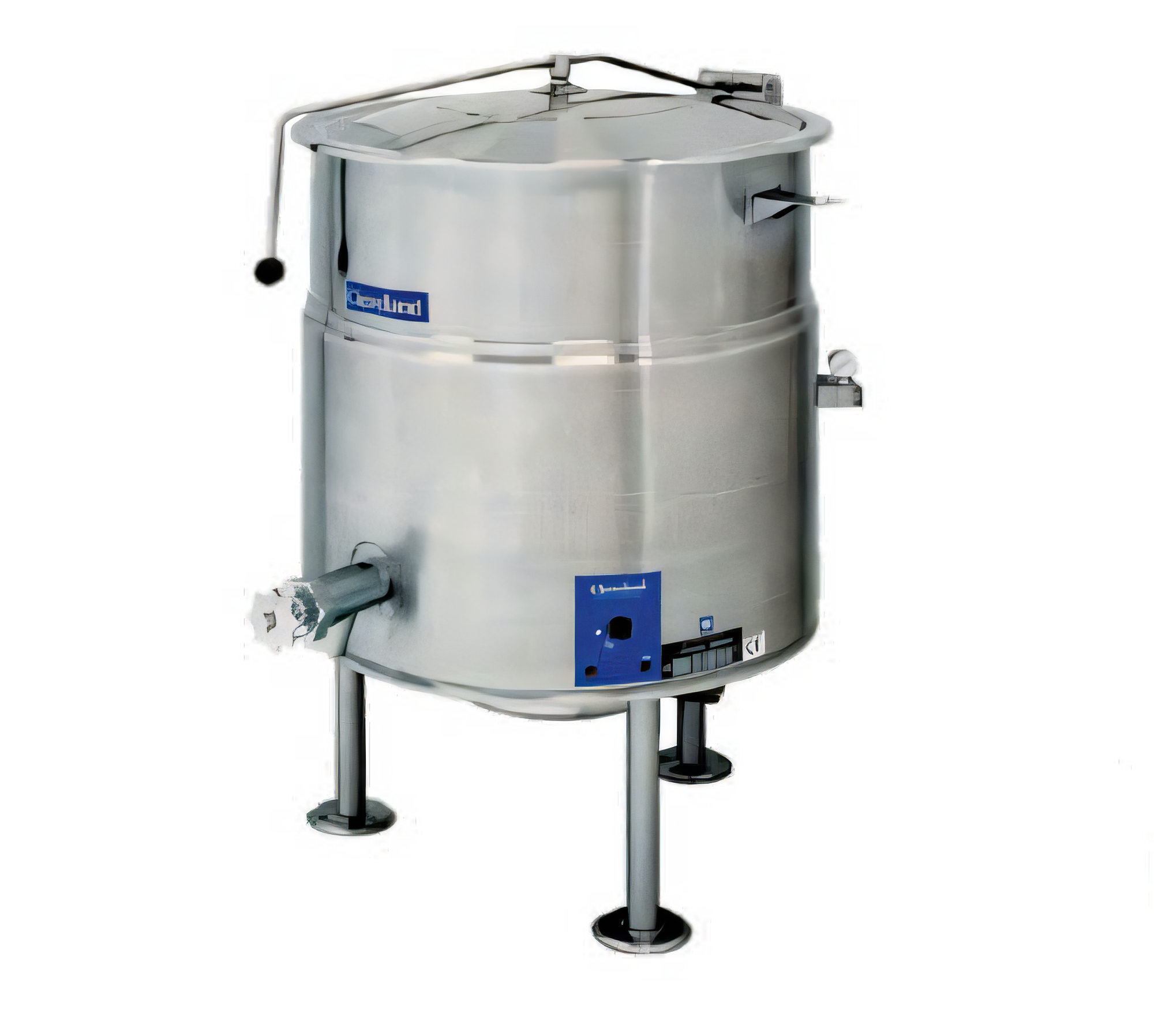

Cleveland Range KEL30 Steam Kettles
Product Description
The Cleveland KEL-30 is a self-contained, 2/3 steam-jacketed appliance designed for high-volume, high-precision production. Featuring a stationary, splash-proof design, this powerful unit delivers unbeatable speed, accuracy, and durability when preparing soups, sauces, stocks, and more. Simply bolt it down, power it up, and start cooking - no external steam source or water feed is required.
Key advantages:
- Large 30-gallon (115 L) batch size - can make up to 480 eight-ounce servings at once.
- Rapid heat-up with the 2⁄3 steam jacket rated for 50 psi and reaching 260 °F (127 °C).
- Precise ±1 °C temperature control with LED indicators for power, heat cycle, and low water.
- Water-resistant IPX6 control housing designed for easy cleaning.
- Welded-in heating elements with no gaskets or leaks, ensuring superior vacuum retention.
- 316 stainless-steel cooking liner that resists acidic foods, and a 304 stainless-steel exterior with a #4 finish for easy cleaning.
- Reinforced rolled rim and spring-assisted domed cover that can withstand daily use.
- 2-inch tangent draw-off valve with a stay-cool handle for effortless product transfer or cleaning.
- Open tri-leg base with height-adjustable, flanged feet for rock-solid stability and easy floor access.
- Rear-mounted gauge and safety relief valve to protect the settings from accidental tampering.
Factory-installed extras:
- Your faucet comes with a mounting bracket that is designed to support an optional hot/cold water kettle filler.
- The unit includes a removable stainless-steel food strainer, which can be taken out for easy cleaning.
Product Specs
| Specification | Value |
|---|---|
| Model | Cleveland KEL-30 |
| Capacity | 30 gal / 115 L |
| Type | Stationary, self-contained electric kettle |
| Steam jacket | 2⁄3 jacket, permanently sealed & treated (no refilling required) |
| Jacket pressure | 50 psi (ASME certified) |
| Temperature range | 145 – 260 °F (63 – 127 °C) |
| Construction | 304 SS exterior, 316 SS liner, welded heating elements |
| Cover | Spring-assisted, hinged, domed 304 SS |
| Draw-off | 2″ tangent valve, sanitary design |
| Controls | Solid-state temp & water-level, LED status lights |
| Power | 208-240 V, 60 Hz, 3-phase standard (other voltages available) |
| IP rating | IPX6 splash-proof |
| Dimensions (W × D × H) | 38″ × 38″ × 55″ *shipping envelope |
| Approx. ship weight | ≈ 289 lb / 131 kg |
| Certifications | UL, CE, NSF, ASME |
| Warranty | 1-year parts & labor; optional extended & prorated jacket coverage |
Features
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Certifications | CE, IPX6 |
| Height | 38.0in |
| Width | 28.75in |
| Depth | 37.0in |
| Shipping Weight | 283.0lbs |
| Kettle Jacket | partial jacket |
| Base | tri-leg |
| Capacity | 30 - 45 gallon |
| Kettle Liner | 316 stainless steel |
| Specifications | Kettle, electric, 30-gallon capacity, 2/3 steam jacket design, open tri-leg base, faucet bracket, strainer, 50 psi rating, solid state water level control, 2" tangent draw-off, spring-assisted cover, 304 stainless steel construction with 316 series stainless steel liner, flanged feet, IPX6, CE |
