Description

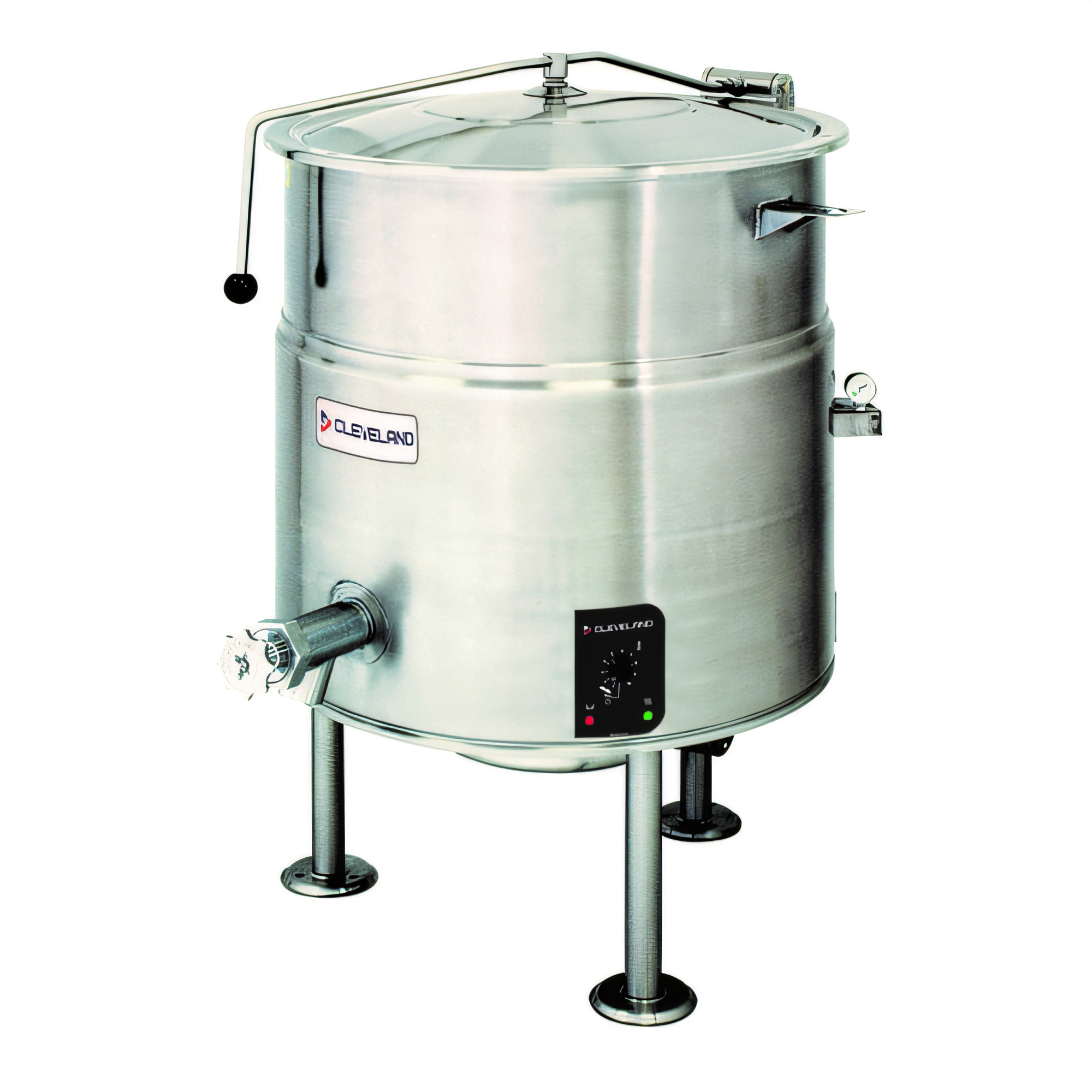

Cleveland Range KEL60 Steam Kettles
Product Description
Self-contained and splash-proof, the Cleveland Range KEL-60 kettle provides precise temperature control for high-volume cooking. The 60-gallon stainless steel kettle maintains ±1 °C accuracy from 145 °F–260 °F (63 °C-127 °C) without an external boiler, producing up to 960 eight-ounce servings in a single batch. Its rugged design and IPX6-rated solid-state control package ensure safety and durability, making it the standard for high-volume cooking.
Why the KEL-60 stands out:
- The 60-gallon (225-liter) kettle has an extra-wide pouring lip, making it ideal for chunky food service.
- The 2/3 steam jacket provides rapid, even heating at up to 50 psi, allowing for higher cooking temperatures.
- The 316 series stainless steel interior resists corrosion from high-acid products, making it easy to clean.
- The IPX6 water-resistant housing with sealed controls is designed for busy, wet kitchen environments.
- The solid-state temperature and water-level controls, with LED status lights, eliminate the need for a breakable sight glass.
- The spring-assisted, hinged domed cover stays in any position, enabling safer, hands-free operation.
- The 2-inch tangent draw-off valve and food strainer facilitate rapid product transfer and particulate removal.
- The factory-installed faucet bracket allows for the easy addition of an optional hot/cold filler to speed up kettle filling.
- The open tri-leg base with level-adjustable, flanged feet provides secure floor bolting and easy under-kettle cleaning.
- The welded-in heating elements maintain their vacuum seal, eliminating the need for leaky gaskets.
- The rear-mounted pressure gauge and relief valve are tamper-resistant yet easy to read.
- The KEL-60 is certified to UL, CSA, NSF, ASME, and CE standards.
What's in the box:
- A stationary kettle with a tri-leg base, called the KEL-60.
- A spring-assisted hinged cover.
- A 2-inch tangent draw-off valve and a food strainer.
- A factory-mounted faucet bracket.
- A pressure gauge and a safety relief valve, both installed.
- Owner's and installation manuals.
Popular add-ons (sold separately):
- Hot/Cold kettle filler with a 60-inch hose (model DKF-K)
- Pan carrier and flow diverter for draw-off service
- Tri-basket supports and cooking baskets
- Automatic water meter and measuring strip
- Kettle accessory kit (includes brushes, paddle, whip, and ladle)
Product Specs
| Specification | Value |
|---|---|
| Model | Cleveland KEL-60 |
| Capacity | 60 gal / 225 L |
| Interior material | 316 stainless steel (Food-grade, acid-resistant) |
| Steam jacket | 2/3 jacket, permanently filled & treated—no venting or refilling required |
| Jacket working pressure | 50 psi (Safety valve included) |
| Temperature range | 145 °F – 260 °F (63 °C – 127 °C) ±1 °C accuracy |
| Heating power | 14.7 kW @ 208–240 V, 3-phase, 60 Hz (other voltages on request) |
| Electrical connection | 3-wire, 3-phase (self-contained) |
| Controls | Solid-state thermostat, LED heat & low-water indicators, ON/OFF rocker |
| Draw-off | 2″ tangent valve with removable strainer basket |
| Cover | Spring-assisted, hinged, domed stainless steel |
| Base | Open tri-leg, 1 5/8″ O.D. with flanged feet (floor-boltable) |
| Ingress protection | IPX6 (high-pressure wash-down safe) |
| Overall dimensions* | W 43″ × D 44″ × H 76″ (cover raised)*See spec sheet for detailed drawing |
| Shipping weight | Approx. 420 lb (190 kg) |
| Warranty | 1-year parts & labor + 4-year prorated jacket warranty (standard) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Certifications | CE, IPX6 |
| Height | 43.0in |
| Width | 34.25in |
| Depth | 44.0in |
| Shipping Weight | 280.0lbs |
| Kettle Jacket | partial jacket |
| Capacity | 50 - 70 gallon |
| Kettle Liner | 316 stainless steel |
| Base | tri-leg |
| Specifications | Kettle, electric, 60-gallon capacity, 2/3 steam jacket design, open tri-leg base, faucet bracket, strainer, 50 psi rating, solid state water level control, 2" tangent draw-off, spring-assisted cover, 316 series stainless steel interior, flanged feet, IPX6, CE |
