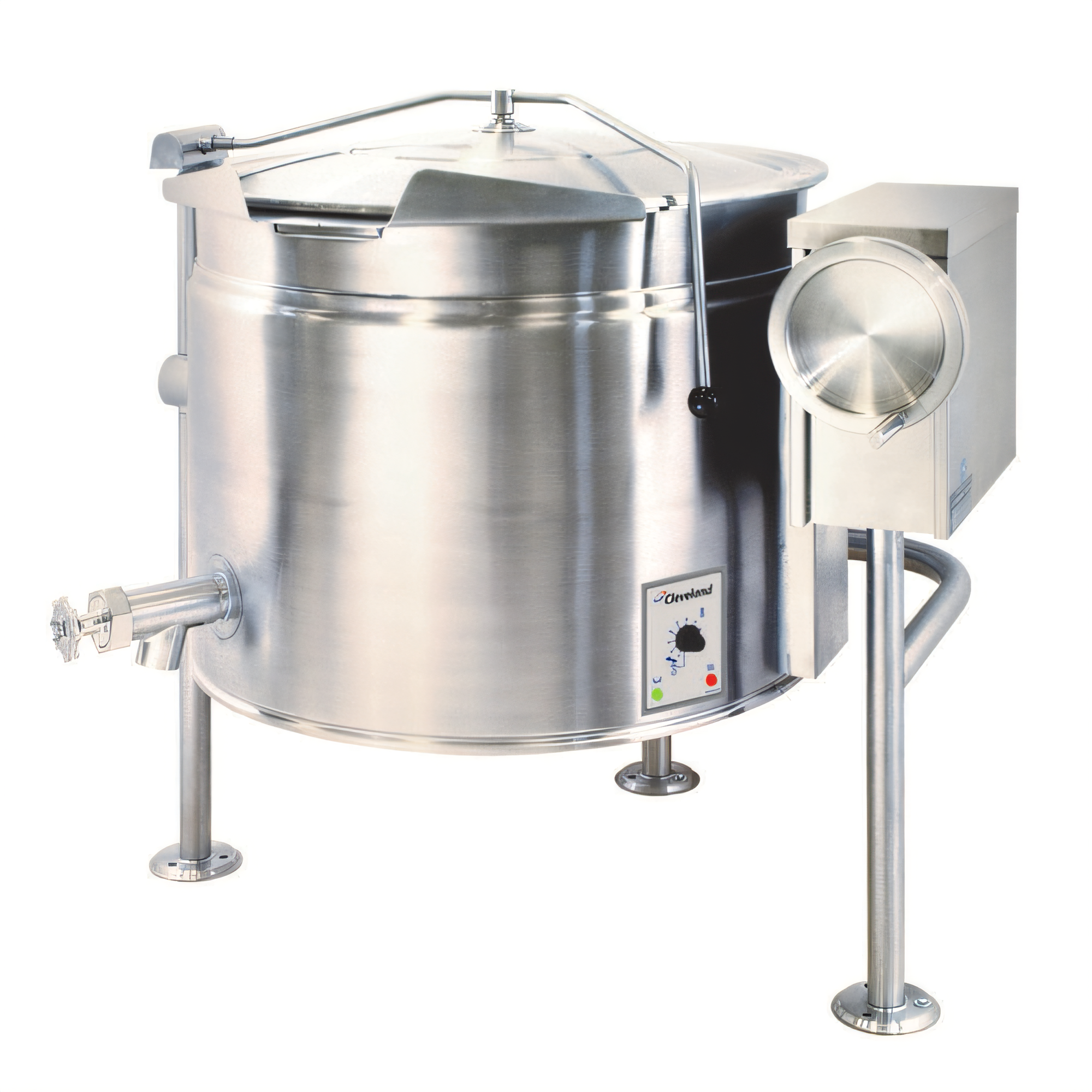

Cleveland Range KEL60TSH Short Series Steam Kettles
Product Description
The Cleveland Range Model KEL-60-TSH is a high-performance 60-gallon kettle designed for commercial kitchens with demanding production needs. Featuring a full steam jacket, this kettle boasts fast heat-up times and precise temperature control within ±1 °C, ensuring consistent, reliable performance even during periods of heavy use. With a 35-inch rim height, this model is built to handle large-volume production with ease, making it a reliable choice for busy commercial operations.
Why you'll love it:
- The massive 60-gallon (225-liter) capacity allows you to make up to 960 eight-ounce servings per batch.
- The self-contained, splash-proof design (IPX6) only requires an electrical hook-up, eliminating the need for an external boiler, venting, or jacket refilling.
- The full 50 psi steam jacket reaches a temperature range of 145-260°F (63-127°C), enabling rapid heat-up and true simmer control.
- The 316 stainless steel cooking surface resists even the most acidic ingredients, while the exterior #4-finish 304 stainless steel is easy to wipe down.
- The solid-state controls with LED heat and low-water indicators provide set-and-forget accuracy within ±1°C.
- The manual tilting system with roller bearings and a self-locking worm/segment gear allows for smooth and controlled pouring.
- The open tri-leg base with flanged, adjustable feet can be bolted securely to the floor, leaving the area underneath easy to wash down.
- The welded-in heating elements hold a vacuum better than replaceable fittings, preventing leaks and lost water.
- The "Splash Proof Series" construction, including a water-resistant panel, double-gasket element cover, and rear-mounted safety gauges, ensures the equipment is well-protected.
- The equipment is approved by trusted organizations such as UL, CSA, NSF, ASME, and CE.
Intuitive operator panel:
- Power switch with indicator light to show when the device is on.
- LED light that illuminates when the heating cycle is active.
- LED warning light that alerts you when the water level is low, without the need for a fragile sight-glass.
- Adjustable temperature dial with a cool-touch knob for easy control.
Factory options & accessories:
- Upgraded electronic control system for easy operation
- Probe to monitor the internal temperature of the food
- Covers that are either spring-assisted or can be easily removed
- Baskets, tri-baskets, and drain strainers for versatile cooking
- 2-inch tangent draw-off valve (available only on 40-gallon models)
- Kits for hot and/or cold water faucets
- Flow diverter, heat-deflector shield, and other useful accessories
Product Specs
| Specification | Value |
|---|---|
| Model | KEL-60-TSH |
| Capacity | 60 gal (225 L) |
| Servings (8 oz) | ≈ 960 per batch |
| Rim height | 35" (889 mm) |
| Steam jacket rating | 50 psi |
| Operating temp. | 145-260 °F (63-127 °C) |
| Interior metal | 316 series stainless steel |
| Power (standard) | 14.7 kW, 208-240 V, 60 Hz, 3-ph (other voltages on request) |
| Ingress rating | IPX6 splash-proof |
| Overall footprint | ≈ 48 ½" W × 33 ½" D (allow 12" right-side service clearance) |
| Shipping weight | Contact us for current crated weight |
| Warranty | 1-year parts & labor (extendable) + 4-year prorated jacket warranty |
Features
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Brand Name | Short Series |
| Certifications | CE, IPX6 |
| Width | 48.5in |
| Depth | 48.0in |
| Kettle Jacket | full jacket |
| Kettle Liner | 316 stainless steel |
| Capacity | 50 - 70 gallon |
| Base | tri-leg |
| Specifications | Short Series™ Steam Jacketed Kettle, electric, manual tilting, 60-gallon capacity, full steam jacket design, 35" rim height, solid state water level control, open tri-leg base, 316 series stainless steel interior, flanged feet, 50 psi rating, IPX6, CE |
