Description

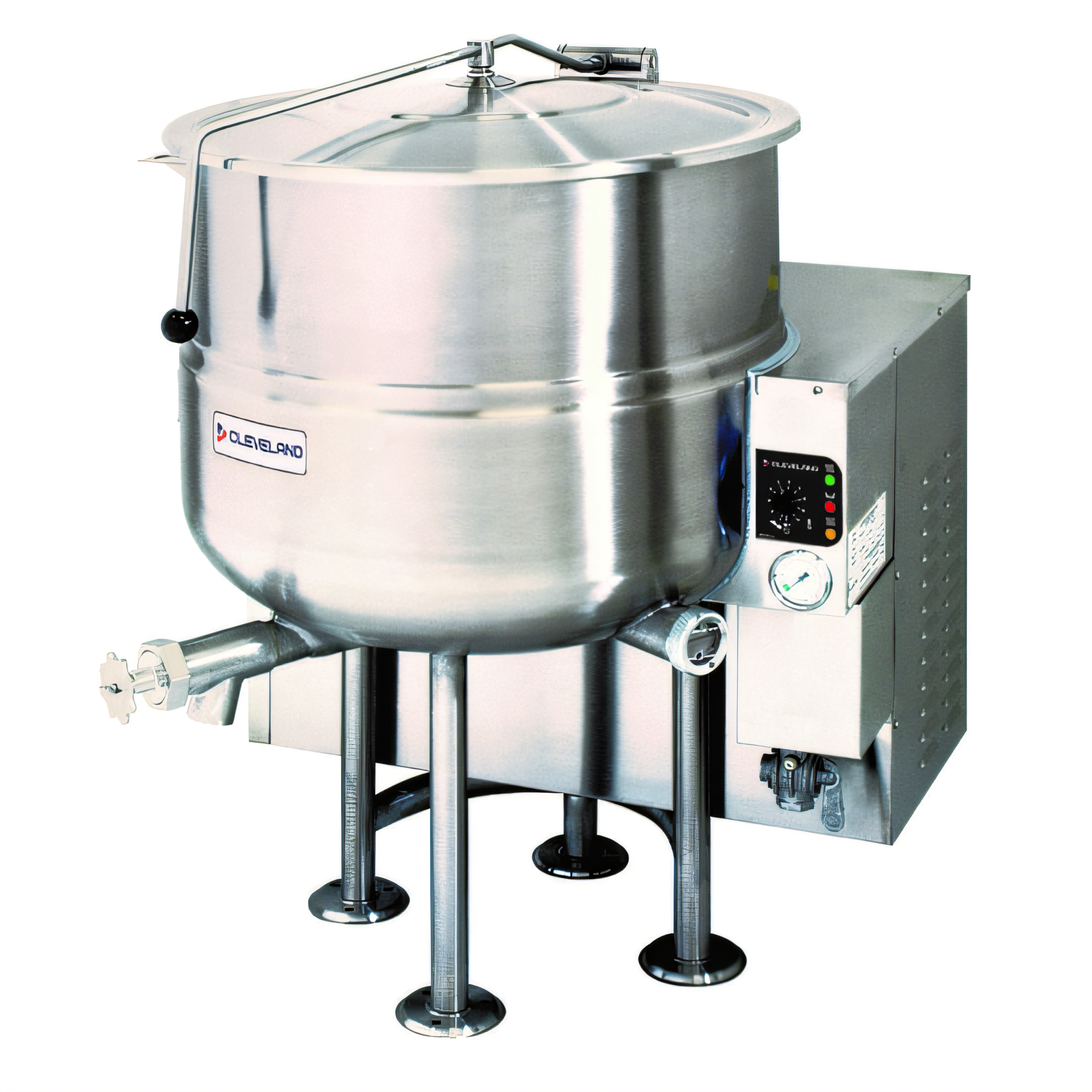

Cleveland Range KGL40 Steam Kettles
Product Description
The Splash-Proof Series 2/3 Jacket offers a durable and reliable performance with a CE certification, ensuring safety and protection. Engineered for high-volume production, the Cleveland KGL-40 model provides rapid heat-up, precise temperature control, and uncompromising durability in a compact floor design. This versatile machine can produce up to 640 eight-ounce servings in a single batch, making it an ideal choice for high-demand environments. For additional details on warranty and coverage, please reach out to our team.
Features:
- This kettle has a generous 40-gallon (150 liter) capacity, making it perfect for preparing soups, sauces, chili, and stock.
- It features a high-efficiency 140,000 BTU Power Burner with a thermal efficiency of 62-65%.
- The self-contained 2/3 steam jacket is permanently filled and requires no boiler or venting.
- The 316 stainless steel interior resists acidic ingredients, extending the kettle's lifespan.
- The 304 stainless steel exterior has a splash-proof control console.
- The solid-state temperature control is accurate to ±1°C and features LED indicators for heat cycle and low water levels.
- The automatic electronic ignition eliminates the need for a standing pilot light.
- The spring-assisted, hinged, and rotatable dome cover allows for effortless one-hand operation.
- The 2-inch tangent draw-off valve with a stainless steel strainer enables clean and fast portioning.
- The flanged, adjustable legs can be bolted to the floor for rock-solid stability.
- The unit comes with a factory-installed faucet mounting bracket for an optional hot/cold fill faucet.
- The kettle meets CE, NSF, ASME, and CSA standards and is supplied for natural gas (with a propane kit available as an option).
Features:
- The faucet comes with a mounting bracket to help you install it.
- The system has a pressure safety valve to prevent any issues with the water pressure.
- For customers in the U.S., the manufacturer will provide a professional start-up service and water quality test to ensure everything is working correctly.
Product Specs
| Specification | Value |
|---|---|
| Model | KGL-40 (Splash-Proof Series) |
| Capacity | 40 gal / 150 L (≈ 640 eight-oz servings) |
| Steam Jacket | 2/3 coverage, 50 PSI operating pressure |
| Gas Input | 140,000 BTU/hr, natural gas • 3/4″ NPT connection |
| Electrical | 115 V, 1-phase, 60 Hz, 10 A (cord & plug included) |
| Interior Material | 316 stainless steel, #4 finish |
| Exterior Material | 304 stainless steel |
| Cover | Spring-assisted, hinged, rotatable, stainless steel |
| Draw-Off Valve | 2″ tangent valve with removable strainer |
| Overall Dimensions | 44″ W × 44″ D × 54″ H (1118 × 1118 × 1372 mm) |
| Shipping Weight | ≈ 454 lb (206 kg) |
| Certifications | CE, NSF, ASME, CSA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Certifications | CE |
| Height | 40.5in |
| Width | 35.13in |
| Depth | 37.0in |
| Shipping Weight | 454.0lbs |
| Capacity | 40 gal |
| Base | quad-leg |
| Kettle Jacket | partial jacket |
| Kettle Liner | 316 stainless steel |
| Specifications | Kettle, gas, stationary, 40-gallon capacity, 2/3 steam jacket, 316 stainless steel interior, self-contained, floor mounted control console supports, electronic ignition, 304 stainless steel finish, faucet mounting bracket, flanged feet, 2" tangent draw-off with strainer, spring-assisted cover, 50 psi rating, 140,000 BTU, CE |
