Description

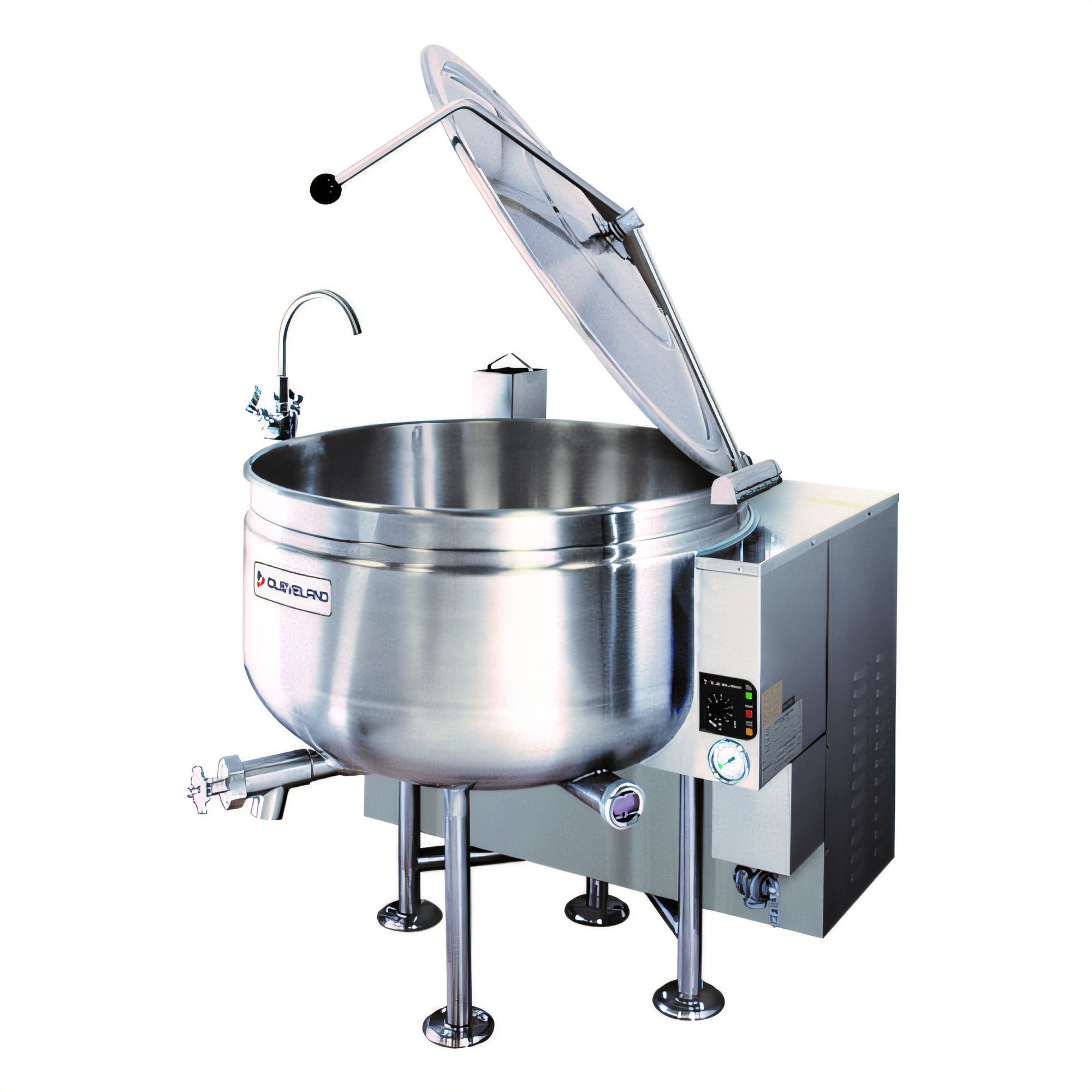

Cleveland Range KGL40SH Short Series Steam Kettles
Product Description
The Cleveland Short Series™ kettle is designed for the demands of commercial kitchens. With a 37.5-inch rim height, it offers a compact footprint without sacrificing high-volume capacity. This high-efficiency kettle heats up quickly and provides precise temperature control, ensuring consistent results. Built with durability in mind, the Cleveland Short Series™ delivers the quality and performance you expect from the industry leader.
Why You'll Love It:
- The high-efficiency (65%) forced-air, double-pass burner rated at 190,000 BTU provides rapid heat-up and recovery.
- The full 50 psi steam jacket is permanently charged with treated distilled water, requiring no boiler maintenance.
- The rugged 316 SS interior and 304 SS exterior/support arms offer maximum corrosion resistance.
- The splash-proof solid-state controls hold the set-point within ±1 °C and include a power ON/OFF switch, adjustable temperature dial, heat-cycle LED, and low-water LED.
- The spring-assisted, domed stainless cover is easy to lift, stays in place, and swings clear for loading and cleaning.
- The 2" tangent draw-off with drain strainer speeds product transfer and wash-down.
- The faucet mounting bracket is pre-installed, allowing you to add a water fill faucet without drilling.
- The quad-leg base with level-adjustable flanged feet enables code-compliant floor bolting.
- It features automatic hot-surface ignition and is available in natural gas standard or propane (LP) optional.
- It is certified to AGA, CSA, CE, NSF, and ASME standards for safety and sanitation.
Popular Factory Options & Accessories:
- 3-inch tangent draw-off valve (TD3) or 3-inch butterfly valve (BV3) for easily dispensing the contents of the kettle
- Deck-mount hot and cold water faucet kit (DPK) for convenient access to water
- Kettle accessory kit that includes paddles, brushes, and cleaning tools to maintain the kettle
- Tri-basket strainer support system (TBS) for filtering the contents of the kettle
- Heat-deflector shield (HS001) to protect the surrounding area from the kettle's heat
- Propane (LP) gas configuration for fuel source
Product Specs
| Specification | Value |
|---|---|
| Capacity | 40 gal / 150 L (≈640 8 oz servings) |
| Model | KGL-40-SH (Short Series™) |
| Rim Height | 37.5 in (953 mm) |
| Overall Dimensions (W × D × H) | 49 in × 49 in × 54 in(1 245 mm × 1 245 mm × 1 372 mm) |
| Steam Jacket Rating | 50 psi (345 kPa) with safety valve |
| BTU Input | 190,000 BTU/hr |
| Burner Efficiency | 65 % |
| Gas Connection | ¾ in NPT | Natural gas 4-14" W.C.LP gas 11-14" W.C. (option) |
| Electrical | 115 V, 60 Hz, 1-ph, 10 A — cord & plug supplied |
| Interior Material | 316 stainless steel, #4 finish |
| Cover | Hinged, spring-assisted, rotatable stainless steel |
| Draw-Off | 2 in tangent valve with removable strainer |
| Shipping Weight | ≈ 552 lb (250 kg) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Brand Name | Short Series |
| Height | 37.0in |
| Width | 41.63in |
| Depth | 42.38in |
| Shipping Weight | 552.0lbs |
| Kettle Jacket | full jacket |
| Kettle Liner | 316 stainless steel |
| Capacity | 40 gal |
| Base | quad-leg |
| Specifications | Short Series™ Steam Jacketed Kettle, gas, 40-gallon capacity, full steam jacket design, 316 stainless steel interior, 37.5" rim height, 304 stainless steel kettle & support arms, solid-state temperature controls, power on/off switch, drain strainer, faucet mounting bracket, spring assisted cover, 2" tangent draw-off, quad-leg with flanged feet, 50 psi rating 190,000 BTU |
