Description

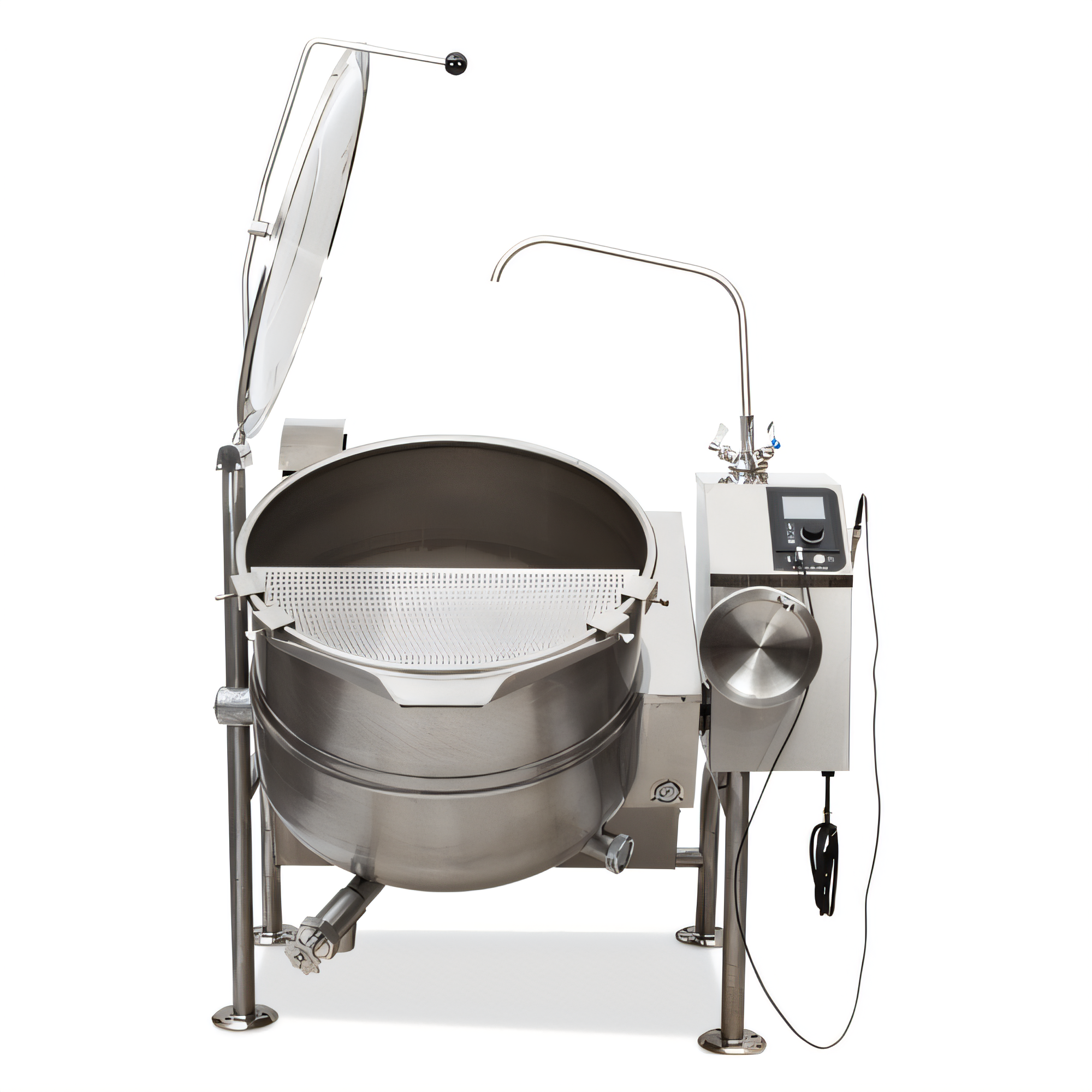

Cleveland Range KGL40T Steam Kettles
Product Description
The Cleveland KGL-40-T is a heavy-duty commercial cooking appliance designed for precision temperature control and efficient performance. Featuring a sealed 2/3 steam jacket and a powerful 140,000 BTU burner, this unit delivers rapid heat-up and excellent recovery, ensuring consistent, scorch-free results when cooking sauces, soups, pasta, and more. Compact in design, the KGL-40-T has a 38-inch rim height, making it a space-saving solution for busy commercial kitchens. Cover, draw-off valves, and accessories are sold separately.
Key Performance Advantages:
- Highly efficient 62-65% thermal power-burner that shortens batch times and reduces energy costs.
- Permanently sealed jacket that requires no boiler, venting, or refilling.
- Precise solid-state temperature control, maintaining set-point within ±1 °C from 145 – 260 °F (63 – 127 °C).
- Automatic electronic spark/hot-surface ignition, eliminating the need for a standing pilot.
- Front-mounted pressure/vacuum gauge and LED indicators for heat cycle and low water.
- Smooth, balanced tilt on roller bearings with self-locking worm and segment gear.
- Durable 316 stainless steel kettle shell and 304 stainless steel floor-mounted console with flanged, adjustable feet for secure bolting.
- 50 psi jacket rating with factory-installed safety valve, suitable for high-temperature applications.
- Heavy rolled rim and oversized pouring lip for clean, controlled transfers.
- Shipped for natural gas (3/4" NPT, 4"-14" W.C.) and field convertible to LP. Includes 115 V cord and plug.
Customise Your Kettle (Optional):
- The kettle has a spring-assisted, hinged stainless steel cover.
- You can choose a 2-inch or 3-inch tangent draw-off valve, or a 3-inch butterfly valve for bulk draining.
- The touchscreen control panel has an easyDial interface with a 99-minute timer and multi-mode cooking options.
- Accessories include food strainers, basket kits, a flow diverter, and a measuring strip.
- You can add a hot/cold faucet kit with a swing spout (DPK).
- The kettle also has a core-temperature probe and an automatic water meter.
Product Specs
| Specification | Value |
|---|---|
| Capacity | 40 gal / 150 L ≈ 640 servings (8 oz) |
| Jacket Design | 2/3 steam jacket, permanently sealed |
| Jacket Pressure | 50 psi (3.4 bar) with safety valve |
| Heat Input | 140,000 BTU/hr |
| Ignition System | Electronic spark / automatic hot-surface |
| Temperature Range | 145 – 260 °F | 63 – 127 °C |
| Temperature Accuracy | ±1 °C |
| Construction | 316 SS kettle; 304 SS console & legs |
| Tilt Mechanism | Roller bearings with self-locking worm gear |
| Gas Connection | 3/4″ NPT – natural gas (standard); LP kit available |
| Electrical | 115 V, 1 ph, 60 Hz, 10 A (cord & plug supplied) |
| Compliance | CE, AGA, CSA, NSF, ASME |
Features
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Certifications | CE |
| Height | 45.58in |
| Width | 39 - 48 inches |
| Depth | 42.25in |
| Shipping Weight | 527.0lbs |
| Capacity | 30 - 45 gallon |
| Kettle Liner | 316 stainless steel |
| Kettle Jacket | partial jacket |
| Specifications | Kettle, gas, tilting, 40-gallon capacity, 2/3 steam jacket design, 316 stainless steel interior, floor mounted control console supports, 304 stainless steel construction, flanged feet, 50 psi rating, electronic spark ignition, cover & draw-off optional, 140,000 BTU, CE |
