Description

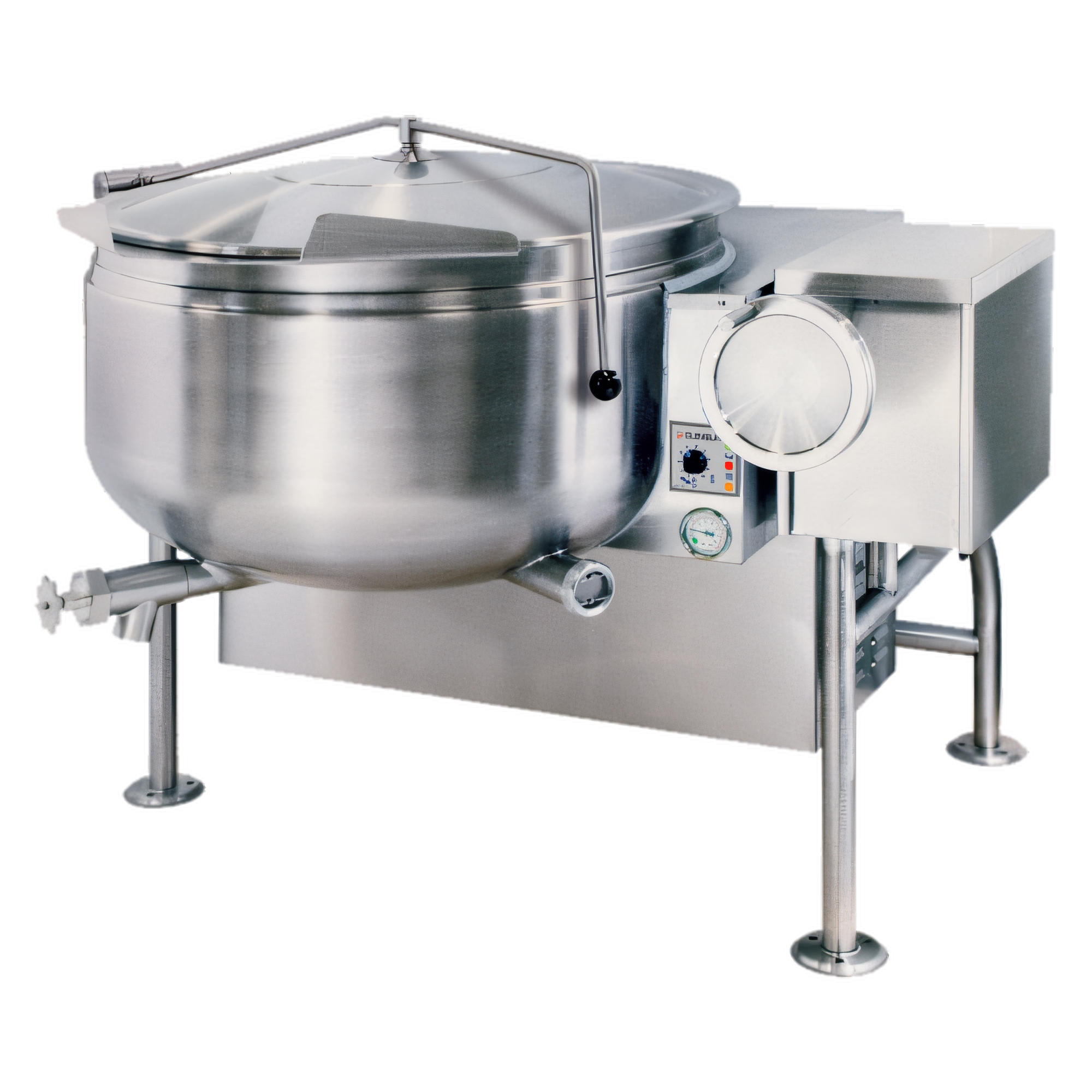

Cleveland Range KGL40TSH Short Series Steam Kettles
Product Description
The Cleveland Range Short Series™ kettle is designed to deliver consistent, high-quality results for your soups, sauces, stocks, and more. With a 38-inch (965 mm) rim height and a 140,000 BTU natural gas burner, this 40-gallon (150 L) kettle heats up quickly and maintains temperature within ±1 °C, ensuring flawless performance shift after shift.
Why Kitchens Choose the Short Series™:
- The full steam jacket design delivers even 360-degree heating, preventing hot spots and scorching.
- The powerful 140,000 BTU burner (62-65% efficient) reduces heat-up and recovery times.
- The solid-state controls with a 1-10 dial maintain temperatures between 145°F and 260°F (63°C and 127°C) within ±1°C.
- The automatic electronic spark ignition starts up the unit instantly, without the need to light a pilot.
- The 316 stainless steel interior and 304 stainless steel exterior resist corrosion and are easy to clean.
- The manual self-locking tilt with roller bearings provides smooth and precise pouring through an extra-wide rolled lip.
- The sealed, permanently filled jacket requires no venting, refilling, or water treatment.
- The compact 38-inch working height keeps operators comfortable without the need for step platforms.
- The flanged, adjustable feet can be bolted to the floor for rock-solid stability.
- The unit is CE, NSF, ASME, and CSA certified for worldwide code compliance.
Popular Options & Accessories (sold separately):
- Advanced control panel with 99-minute timer and diagnostic features
- 2-inch or 3-inch draw-off valve options, including a 3-inch butterfly valve
- Spring-assisted stainless steel cover for easy opening and closing
- Swivel faucet with hot and cold water options
- Accessories like food strainers, flow diverters, pan carriers, and cooking baskets
- Core temperature probe, automatic water meter, and measuring strip for precision cooking
- Kettle Accessory Kit with a paddle, whisk, ladle, and cleaning brushes
- Propane (LP) gas configuration available
Product Specs
| Specification | Value |
|---|---|
| Capacity | 40 gal / 150 L (≈ 640 8 oz servings) |
| Jacket Type & Rating | Full steam jacket, 50 psi ASME |
| Heat Source | Natural gas, 140,000 BTU/hr (LP kit available) |
| Ignition | Electronic spark / automatic hot-surface |
| Temperature Range | 145 – 260 °F (63 – 127 °C), ±1 °C control accuracy |
| Construction | 316 SS kettle liner, 304 SS exterior with #4 finish |
| Rim Height | 38 in (965 mm) |
| Tilt Mechanism | Manual, self-locking worm gear with roller bearings |
| Utilities | Gas 3⁄4″ NPT @ 4–14″ W.C. • 115 V, 1 ph, 6 ft cord & plug |
| Clearances | 3″ rear; 12″ right side for service |
| Shipping Weight | ≈ 500 lb (227 kg) |
| Certifications | CE, NSF, ASME, CSA/AGA |
Features
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Brand Name | Short Series |
| Certifications | CE |
| Height | 41.0in |
| Width | 49 - 62 inches |
| Depth | 47.25in |
| Shipping Weight | 630.0lbs |
| Kettle Jacket | full jacket |
| Kettle Liner | 316 stainless steel |
| Capacity | 30 - 45 gallon |
| Specifications | Short Series™ Steam Jacketed Kettle, gas, tilting, 40-gallon capacity, full steam jacket design, 316 stainless steel interior, 38" rim height, floor mounted control console supports, 304 stainless steel construction, flanged feet, 50 psi rating, electronic spark ignition, 140,000 BTU, CE |
