Cleveland Range SD1050K66 Steam Kettles

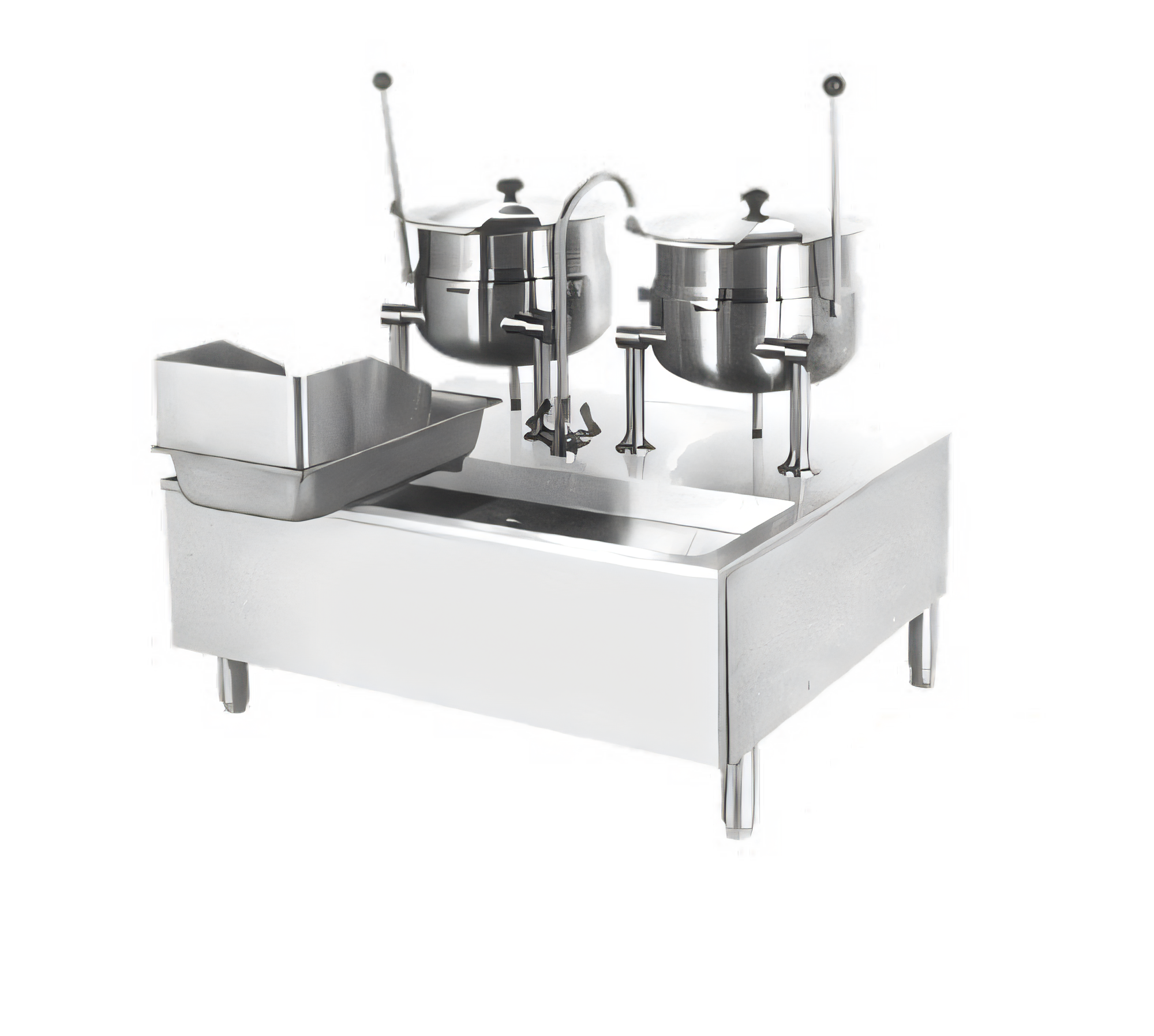

Cleveland Range SD1050K66 - Kettle/Cabinet Assembly, direct-steam, 42" W cabinet base, with two 6-gallon kettles, low cabinet



Regular price $24,692.00
$24,692.00
Sale price
Regular price
Sale Sold out

From $469.15/week with



Need more information? Contact us today!

Cleveland Range SD1050K66 Steam Kettles

Product Description

Twin 6-Gallon 2/3-Jacketed Tilting Kettles | 18 in. Low Stand | 316 SS Liner These twin 6-gallon kettles offer efficient, high-volume cooking in a compact footprint. The Cleveland SD-1050-K66 features a 42-inch stainless steel cabinet, providing fast, even, direct-steam heating and an ergonomic 18-inch working height to keep staff comfortable during busy service.

Why this Cleveland twin-kettle stand rocks ⤵:

  • The stand has a small footprint but high output, with two 6-gallon (23 L) kettles providing a total capacity of 12 gallons.
  • The 316 stainless-steel liners are resistant to acidic foods and chlorides, ensuring a longer service life.
  • Factory-installed steam control kits (needle valve, steam trap, strainer & check valve) simplify the setup process, making it easy to connect to a 5-45 psi steam source.
  • The full-width drain trough with a 1 ½ inch male NPT connection, along with a sliding drain pan and splash shield, help keep the floor dry.
  • The double pantry faucet with a swing spout provides instant access to hot and cold water for filling or rinsing.
  • The balanced manual tilt allows operators to pour with precision and minimal effort.
  • The stand is built and certified to NSF and ASME standards, with a 50 psi jacket rating and a chrome-plated safety valve.
  • The rugged all-stainless exterior, with a #4 finish on the top, front, and sides, is easy to clean.

Product Specs

Specification Value
Manufacturer / Model Cleveland Range SD-1050-K66
Kettle Configuration Two × 6 gal (23 L) 2/3-jacketed, tilting
Total Batch Output* 320 portions @ 4 oz (160 per kettle)
Cabinet Width 42 in. (1050 mm)
Stand / Work Height 18 in. (457 mm)
Jacket Operating Pressure 50 psi (3.4 bar) max
Steam Supply Required 5 – 45 psi direct steam, ½ in. NPT connection
Water Connections ½ in. copper tube or ⅜ in. NPT
Drain Connection 1 ½ in. male NPT (table-top trough)
Shipping Weight 302 lb (137 kg)

Features

Specification Value
Manufacturer Cleveland Range
Height 38.4in
Width 41.34in
Depth 33.5in
Shipping Weight 210.0lbs
Kettles (2) 6 gallon
Kettle Liner stainless steel
Base 42" wide cabinet
Specifications Kettle/Cabinet Assembly, direct-steam, 42" W cabinet base, with two 6-gallon kettles, low cabinet height, stainless steel kettles, top, front & sides, lift-off covers, double pantry faucet, sliding drain pan with splash shield, 316 stainless steel liner, factory installed steam control kits
