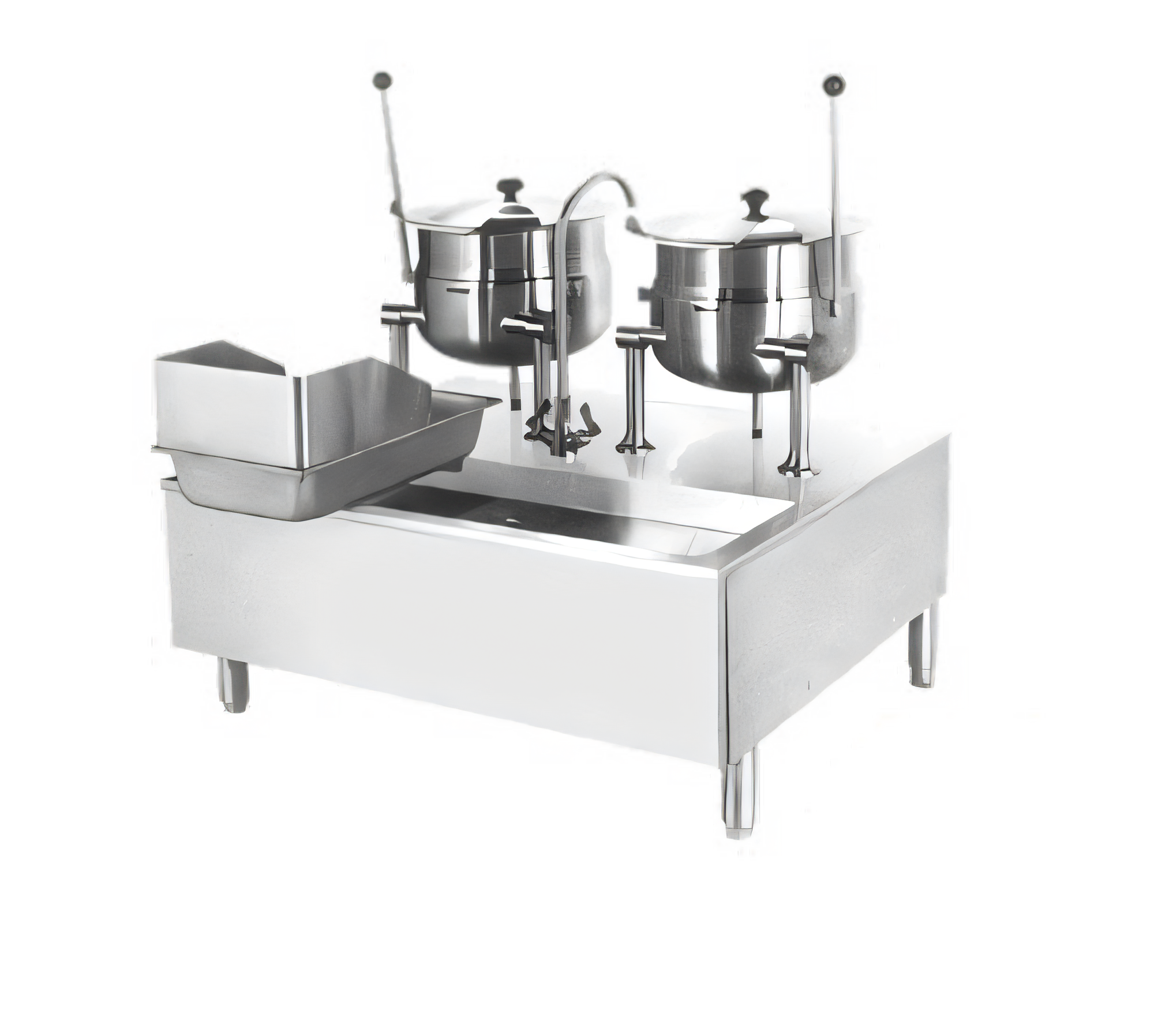

Cleveland Range SD1600K620 Steam Kettles

Cleveland Range SD1600K620 - Kettle/Cabinet Assembly, direct-steam, 63" W cabinet base, with one 6-gallon & one 20 gallon



Regular price $34,819.00
$34,819.00
Sale price
Regular price
Sale Sold out

From $661.56/week with



Need more information? Contact us today!

Cleveland Range SD1600K620 Steam Kettles

Product Description

The Cleveland 63" SD-1600 Series stand features a 6-gallon and a 20-gallon direct-steam kettle, providing unmatched flexibility and efficiency for your busiest kitchen operations. This compact workstation allows you to easily handle delicate sauces and high-volume soups with its manual tilting design and steam-jacketed construction, delivering fast heat-up and effortless cleanup.

Key Features:

  • The kettles can be tilted manually, and they come in two sizes: 6 gallons (23 liters) and 20 gallons (80 liters).
  • The kettle liners are made of 316 stainless steel, which provides superior corrosion and acid resistance.
  • The top, front, and sides are made of 304 stainless steel with a sanitary #4 finish.
  • Factory-installed Steam Control Kits (including a needle valve, trap, strainer, and check valve) allow easy connection to 5–45 psi steam.
  • The low 18-inch cabinet height keeps the pour lip at an ergonomic level.
  • The full-width drain trough has a 1 ½-inch NPT outlet, and it includes a sliding catch pan and splash shield.
  • The double pantry faucet (hot and cold) has a swing spout for filling and rinsing.
  • The jacket has a 50 psi rating and comes with chrome-plated safety valves.
  • Lift-off covers are included to speed up boiling and reduce energy loss.
  • The product is NSF and ASME certified, and it is shipped fully assembled and pressure-tested.

Why Kitchens Love It:

  • Use the 6-gallon kettle for research and development batches, while the 20-gallon unit supplies the main production line.
  • The direct-steam design heats up faster and costs less to operate compared to electric self-contained models.
  • The low stand height makes it easier and safer for operators to pour from the kettle.
  • The front-mounted faucet, controls, and drain allow easy access to all the important features.

Product Specs

Specification Value
Kettle Capacity
6 gal 23 L
20 gal 80 L
Total 98 L (26 gal)

Features

Specification Value
Manufacturer Cleveland Range
Height 60.05in
Width 62.99in
Depth 33.5in
Shipping Weight 290.0lbs
Kettles (1) 6 & (1) 20 gallon
Base 63" wide cabinet
Kettle Liner stainless steel
Specifications Kettle/Cabinet Assembly, direct-steam, 63" W cabinet base, with one 6-gallon & one 20 gallon kettle, low cabinet height, stainless steel kettles, top, front & sides, lift-off covers, double pantry faucet, sliding drain pan with splash shield, 316 stainless steel liner, factory installed steam control kits
