Description

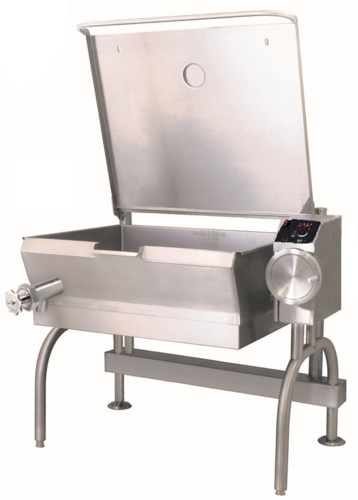

Cleveland Range SEL30T1 PowerPan Braising Pans & Tilt Skillets
Product Description
The Cleveland Range Model SEL-30-T1 is a versatile commercial-grade appliance designed to handle a wide range of cooking tasks, from breakfast prep to dinner service. The PowerPan™ feature allows users to sauté, braise, simmer, griddle, steam, or hold food at the desired temperature, all with the convenience of a smooth manual hand-tilt for easy pouring. Engineered for heavy-duty commercial kitchens, this appliance is built to deliver consistent performance shift after shift. It is intended for commercial food-service installations, so buyers should consult the installation manual and local codes for ventilation, drainage, and electrical requirements prior to purchase.
Key Performance Features:
- The unit has a large 30-gallon (115 L) capacity, allowing for up to 960 4-ounce servings per batch.
- The 5/8-inch bead-blasted stainless cooking surface prevents sticking and resists warping.
- The 12-gauge 304 stainless pan has a clad bottom for even heat distribution.
- The 10-degree "cook-in-tilt" feature allows you to skim fats or sauté while the unit is partially tilted, without shutting off the power.
- The easy-turn manual hand tilt has a permanently lubricated, enclosed gearbox.
- The spring-assisted cover with adjustable vent helps keep heat and moisture where you want them.
- Laser-etched gallon and liter markings inside the pan provide quick and accurate batch measurement.
- The electronic thermostat (100–450 °F) has a splash-proof control panel and an LED "Heat On" indicator.
- The low 35-inch rim height and open leg frame make loading, unloading, and cleaning easier.
- The unit is available in field-selectable voltages of 208–240 V, 1- or 3-phase, with other voltages available as factory options.
- The unit is certified to UL, CE, and NSF standards.
Popular Accessories (sold separately):
- The easyDial™ digital control package includes a core temperature probe to help you easily monitor and adjust the cooking temperature.
- The 2-inch tangent draw-off valve is mounted on the left side, making it convenient to access.
- You can choose between a single or double pantry faucet, both of which come with a bracket for easy installation.
- The hot and cold pre-rinse spray hose allows you to quickly rinse off your dishes or ingredients.
- Vegetable steamer baskets or poaching pans provide versatile cooking options.
- Flanged rear feet or locking casters give you the flexibility to move your appliance as needed.
- The power-tilt retrofit feature includes a manual override, giving you more control over the angle of your cooking surface.
Product Specs
| Specification | Value |
|---|---|
| Capacity | 30 gal | 115 L |
| Cooking Surface | 5/8″ (16 mm) bead-blasted stainless steel clad over mild-steel core |
| Temperature Range | 100 °F – 450 °F (38 °C – 232 °C) |
| Exterior Construction | 304 stainless steel pan & cover, open stainless leg frame |
| Rim Height | 35″ (889 mm) for ergonomic access |
| Overall Width × Depth | 37 7/8″ × 24 1/2″ (963 mm × 623 mm) |
| Tilt Mechanism | Manual hand crank, 10° cook-tilt & full pour position |
| Heating Power (std.) | 12 kW electric |
| Electrical Options | 208 V or 240 V, 60 Hz, 1- or 3-phase (field-selectable); 380, 416, 480 V & 16 kW high-wattage available factory-order |
| Controls | Solid-state thermostat & power switch (standard); optional easyDial digital control with timer, probe port & diagnostics |
| Certifications | UL, CE, NSF |
| Warranty | 1-year parts & labor (factory start-up included) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Brand Name | PowerPan |
| Certifications | NSF, CE, UL |
| Height | 39.0in |
| Width | 37.88in |
| Depth | 41.0in |
| Shipping Weight | 565.0lbs |
| Tilt | manual tilt |
| Capacity | 30 - 39 gal |
| Base | open frame |
| Specifications | PowerPan™ Tilting Skillet, electric, 30-gallon capacity, bead blasted cooking surface, 10° tilt cooking feature, with easy manual hand tilt, spring-assisted cover with vent, gallon & liter markings, stainless steel construction with open leg frame, UL, CE, NSF |
