Description

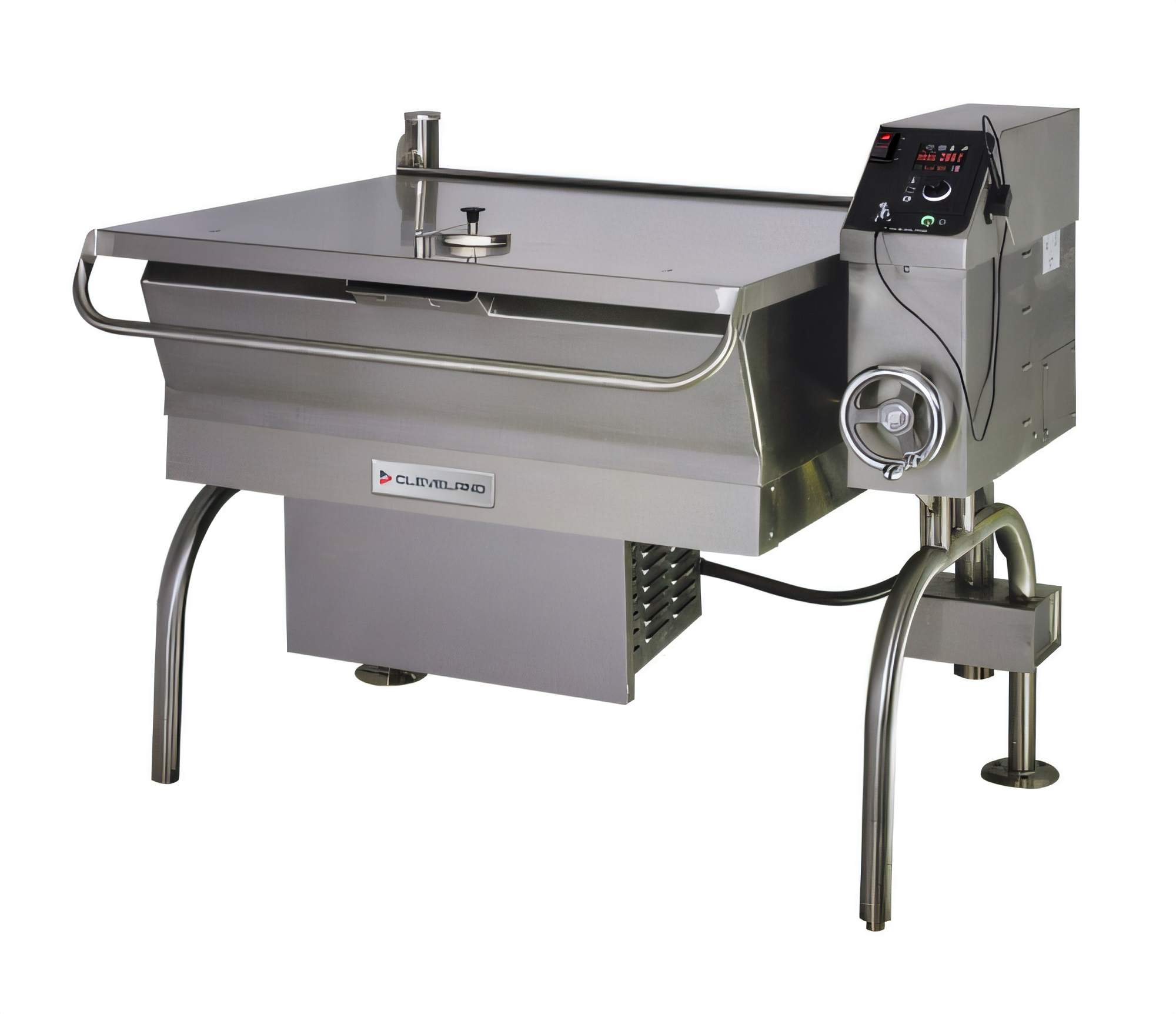

Cleveland Range SGL40T1NATHTPQS Quick Ship Braising Pans & Tilt Skillets
Product Description
Model SGL-40-T1 | Natural Gas | 200,000 BTU
Cleveland's Quick Ship PowerPan™ is a 40-gallon (150 L) gas tilting skillet designed for fast production. With its massive capacity and effortless manual tilting, this skillet offers ultra-even heat distribution for reliable cooking. Chefs have trusted the rugged dependability of this model since 1922.
Why You'll Love It:
- Quick Ship program – stocked in the USA for accelerated delivery to keep projects on schedule.
- Powerful Dual Power Burner delivers 160,000 BTU for standard cooking or an intense 200,000 BTU for rapid recovery.
- Bead-blasted stainless-clad 5⁄8 inch surface prevents sticking and resists warping, perfect for searing, braising, sautéing, or holding food.
- Low 35-inch rim height allows safe, ergonomic access—even with large 40-gallon capacity.
- 10-degree cook-in-tilt feature lets you tilt the pan slightly to baste or drain without shutting off the heat.
- Spring-assisted stainless steel cover with built-in vent keeps operators safe and hands-free.
- Embossed gallon and liter markings for fast, accurate batch sizing without the need for measuring tools.
- Splash-proof manual hand tilt uses an enclosed, permanently lubricated gear box for smooth, precise pouring.
- Electronic spark ignition and solid-state thermostat (140 – 425 °F) guarantee quick starts and tight temperature control.
- Open stainless steel leg frame with adjustable feet (rear flanged, front bullet) simplifies floor cleaning and installation.
Built for Busy Kitchens:
- The pan is 5/16 inch (8 mm) thick, with a cladded bottom made of 16 mm mild steel and 1.6 mm stainless steel. This ensures even heat distribution across the entire cooking surface.
- The unit comes with a 120 V cord and plug, so no on-site transformer or hard-wiring is required for installation.
- It is CE and NSF listed, meaning it meets global safety and sanitation standards.
- A wide range of Cleveland accessories are compatible with this unit, including a 2-inch tangent draw-off valve, power-tilt upgrade, easyDial digital controls, casters, steamer baskets, and more (sold separately).
Product Specs
| Specification | Value |
|---|---|
| Capacity | 40 gal / 150 L (≈1,280 four-oz. servings) |
| Gas Input | Dual settings – 160,000 BTU or 200,000 BTU/hr (natural gas) |
| Gas Connection | 3⁄4 in. NPT, 5 in. W.C. min. supply pressure |
| Electrical | 120 V, 60 Hz, 1-phase, 1.4 A (cord & plug furnished) |
| Thermostat Range | 140 °F – 425 °F (60 °C – 218 °C) |
| Tilt Mechanism | Manual hand wheel, enclosed & permanently lubricated |
| Pan Construction | 12-ga 304 stainless; 5⁄8 in. clad bottom, bead-blasted finish |
| Rim Height | 35 in. (889 mm) |
| Approvals | NSF, CE, AGA/CSA, California AHJ compliant |
| Warranty | 1-year parts & labor (extendable) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Brand Name | Quick Ship |
| Certifications | NSF, CE |
| Height | 39.0in |
| Width | 49.88in |
| Depth | 41.0in |
| Shipping Weight | 610.0lbs |
| Capacity | 40 - 49 gal |
| Base | modular open |
| Tilt | manual tilt |
| Specifications | (Quickship) PowerPan™ Tilting Skillet, natural gas, 40-gallon capacity, bead blasted cooking surface, 10° tilt cooking feature, with easy manual hand tilt, spring-assisted cover with vent, gallon & liter markings, stainless steel construction with open leg frame, 200,000 BTU, 120v/60/1-ph, cord with plug, CE, NSF |
