Description

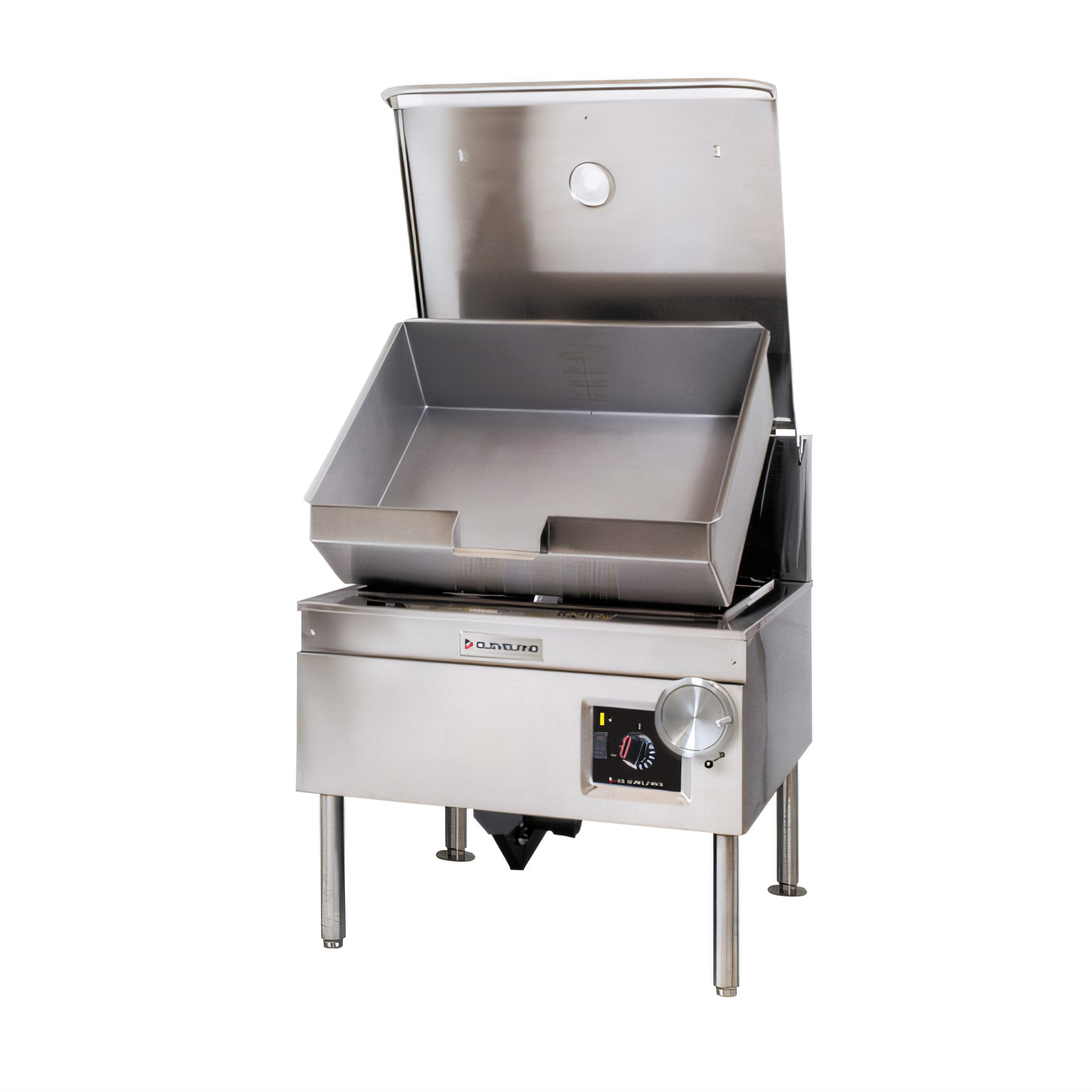

Cleveland Range SGL40TNATHTPQS Quick Ship Braising Pans & Tilt Skillets
Product Description
The Cleveland DuraPan™ 40-Gallon Tilting Skillet is engineered for high-volume kitchens that demand versatility. This space-saving unit offers braising, sautéing, searing, steaming, and thawing capabilities, all in a single, easy-to-install device that ships quickly. The Hydraulic Hand Tilt and Modular Open Base provide enhanced functionality. Options are available, but may affect lead-time.
Why You'll Love It:
- Massive 40-gallon (150 L) capacity, which can produce up to 1,280 four-ounce servings per batch.
- Hydraulic hand tilt with a quick-lowering feature for precise and effortless pouring.
- 5/8" stainless-steel clad cooking surface that resists warping and distributes heat evenly.
- Electronic thermostat (100 °F – 425 °F) and electronic spark ignition for push-button starts.
- Preheats in just 11 minutes and reaches a rolling boil at full capacity in about 60 minutes.
- Spring-assisted cover with an adjustable vent and a full-width handle.
- Two status lights (green for power, amber for temperature cycling) to keep operators informed at a glance.
- IPX6 water-resistant design, along with an all-stainless cabinet, pan, and adjustable feet for easy wash-down.
- Meets or exceeds CE, NSF, and ANSI certification standards.
- Quick-Ship inventory, ready to leave the warehouse without the usual lead time.
Included with Every Unit:
- The cover is made of stainless steel and has a spring-assisted mechanism for easy opening and closing. The vent on the cover can be adjusted.
- The pan inside the unit has clear markings for gallon and liter measurements.
- The pouring lip on the pan is designed to prevent splashing.
- The unit has four stainless steel feet in the front that can be adjusted to level the unit. The rear feet are flanged, allowing the unit to be bolted down if needed.
Popular Factory Options & Accessories:
- Sliding drain drawer with splash screen (SLD)
- Power tilt with hand-tilt override (PT1)
- Single or double pantry faucet / skillet filler with 60" hose
- 2" tangent draw-off valve (left side)
- Food strainers, poaching pans, vegetable steamers, and pan carriers
Product Specs
| Specification | Value |
|---|---|
| Capacity | 40 gal | 150 L |
| Heat Input | 130,000 BTU/hr (Natural Gas) |
| Temperature Range | 100 °F – 425 °F (38 °C – 218 °C) |
| Ignition System | Electronic Spark Ignition (ESS) |
| Electrical | 120 V / 60 Hz / 1-ph · 1.8 A · 6 ft cord & plug included |
| Gas Connection | 3/4" NPT, 5" W.C. minimum supply pressure (Natural Gas) |
| Exterior Dimensions (WxDxH) | 48" × 44" × 44 ⅞" (1,220 × 1,118 × 1,140 mm) |
| Shipping Weight | Approx. 624 lb (283 kg) |
| Water Rating | IPX6 (high-pressure hose approved) |
| Standard Warranty | 1-year parts & labor, with Factory Authorized Start-Up available |
Features
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Brand Name | Quick Ship |
| Certifications | NSF, CE, IPX6 |
| Height | 42.0in |
| Width | 48.0in |
| Depth | 40.0in |
| Shipping Weight | 528.0lbs |
| Capacity | 40 - 49 gal |
| Tilt | manual tilt |
| Base | modular open |
| Specifications | (Quickship) DuraPan™ Tilting Skillet, natural gas, 40-gallon capacity, modular open base, standard with hydraulic hand tilt with quick lowering feature, stainless steel construction, includes spring-assisted cover, gallon markings and electronic spark ignition, stainless steel level adjustable feet, 130,000 BTU, CE, NSF, IPX6, 120v/60/1-ph, cord with plug |
