Description

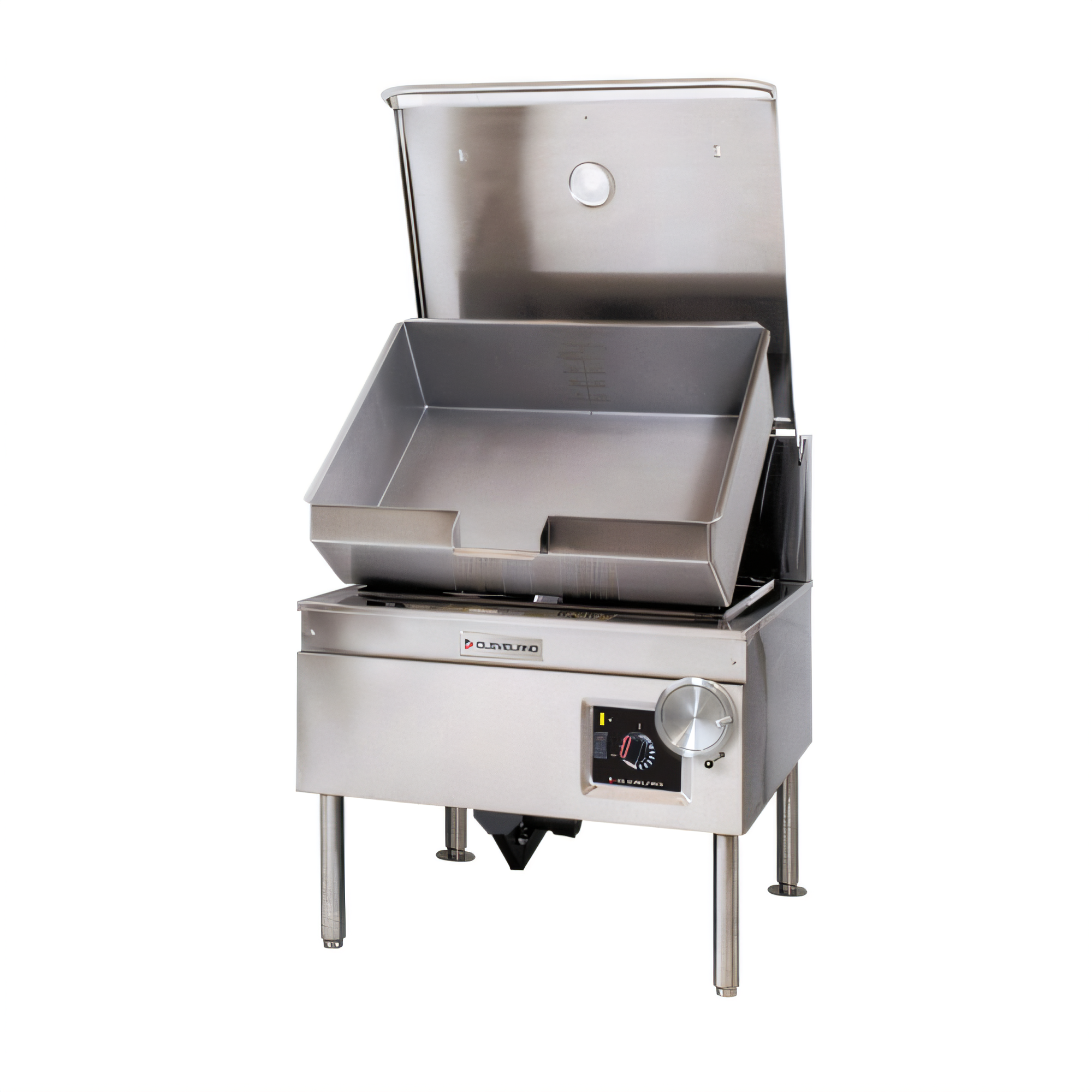

Cleveland Range SGL40TR DuraPan Braising Pans & Tilt Skillets
Product Description
The DuraPan™ SGL-40-TR is a versatile and heavy-duty piece of equipment designed for braising, bulk production, and precise tilt control. This single stainless steel vessel offers 150 liters (40 gallons) of capacity, replacing multiple pieces of equipment. Backed by Cleveland Range's reputation for Timeless Quality and Trusted for Life®, the DuraPan™ SGL-40-TR provides fast and precise tilt control, allowing you to easily sauté, steam, pan-fry, or simmer with efficiency and convenience.
Key performance benefits:
- The hydraulic hand tilt (HTS) feature allows for smooth, controlled pouring with a quick-lowering option.
- Powerful 130,000 BTU high-efficiency burners provide even heat distribution.
- Electronic spark ignition (ESS) eliminates the need for a standing pilot, saving gas.
- The adjustable electronic thermostat ranges from 100 °F to 425 °F (38 °C to 218 °C), with a high-limit safety at 475 °F.
- Rapid heat-up: preheats in 11 minutes and takes a full 40-gallon batch from cold to boil in 60 minutes.
- The spring-assisted stainless steel cover has an adjustable vent and a full-width handle.
- The 5/8" (15.9 mm) stainless steel clad cooking surface is warp-resistant.
- The coved-corner pan has stamped gallon and litre markings for quick, accurate yields.
- The anti-splash pouring lip keeps operators and floors safer.
- Two pilot lights (green for power, amber for heat cycle) provide at-a-glance status.
- IPX6 water-jet protection ensures confident wash-down cleaning.
- The full stainless steel construction features four level-adjustable, flanged rear feet for bolting.
- All controls are front-serviceable to minimize downtime.
- Includes a 6 ft. cord and plug for the 115 V control circuit.
- Certified CE and NSF for worldwide compliance.
Features:
- Adjustable power tilt function with manual tilt override option (PT1)
- Sliding drain drawer with splash screen to prevent water spills (SLD)
- Available with single or double pantry faucets and skillet fillers, each with a 60-inch hose (SPS14, DPS14, SKF-S, DKF-S)
- 2-inch tangent draw-off valve located on the left side
- Includes food strainers, poaching pans, vegetable steamers, and pan carriers
- Export voltage kit for 220/240 V, 50 Hz power supply
- Extended labor warranty and preventative-maintenance programs
Product Specs
| Specification | Value |
|---|---|
| Capacity | 40 gal / 150 L | 1,280 x 4 oz servings |
| Tilt mechanism | Manual hydraulic hand tilt with quick-lowering |
| Heat source | Natural or LP gas, 130,000 BTU/hr |
| Thermostat range | 100 °F – 425 °F (38 °C – 218 °C) |
| Ignition | Electronic spark ignition (ESS) |
| Electrical (controls) | 115 V, 1-ph, 60 Hz, 1.8 A (220-240 V 50 Hz option available) |
| Gas connection | 3/4" NPT, 5" W.C. Nat / 11" W.C. LP minimum supply pressure |
| Overall dimensions (WxDxH) | 48" × 44" × 44 7/8" (1,220 mm × 1,118 mm × 1,140 mm) |
| Pan depth | 12 1/8" (308 mm) |
| Shipping weight | Approx. 624 lb (283 kg) |
| Water rating | IPX6 – withstands powerful water jets |
| Certifications | CE, NSF, AGA/CSA, IPX6 |
| Warranty | 1-year parts & labour (18 months from shipment, whichever comes first) Optional extended & K-12 warranties available. |
Features
| Specification | Value |
|---|---|
| Manufacturer | Cleveland Range |
| Brand Name | DuraPan |
| Certifications | NSF, CE, IPX6 |
| Height | 42.0in |
| Width | 48.0in |
| Depth | 40.0in |
| Shipping Weight | 624.0lbs |
| Capacity | 40 - 49 gal |
| Tilt | manual tilt |
| Base | modular open |
| Specifications | DuraPan™ Tilting Skillet, gas, 40-gallon capacity, modular open base, standard with hydraulic hand tilt with quick lowering feature, stainless steel construction, includes spring-assisted cover, gallon markings and electronic spark ignition, stainless steel level adjustable feet, 130,000 BTU, CE, NSF, IPX6 |
Documents
CAD Files
Certifications
Purchase Notice
Pricing, availability, and product details are subject to change without notice. 24/7 Restaurant Equipment is not responsible for typographical errors or omissions. Freight charges may apply where applicable.
