Description

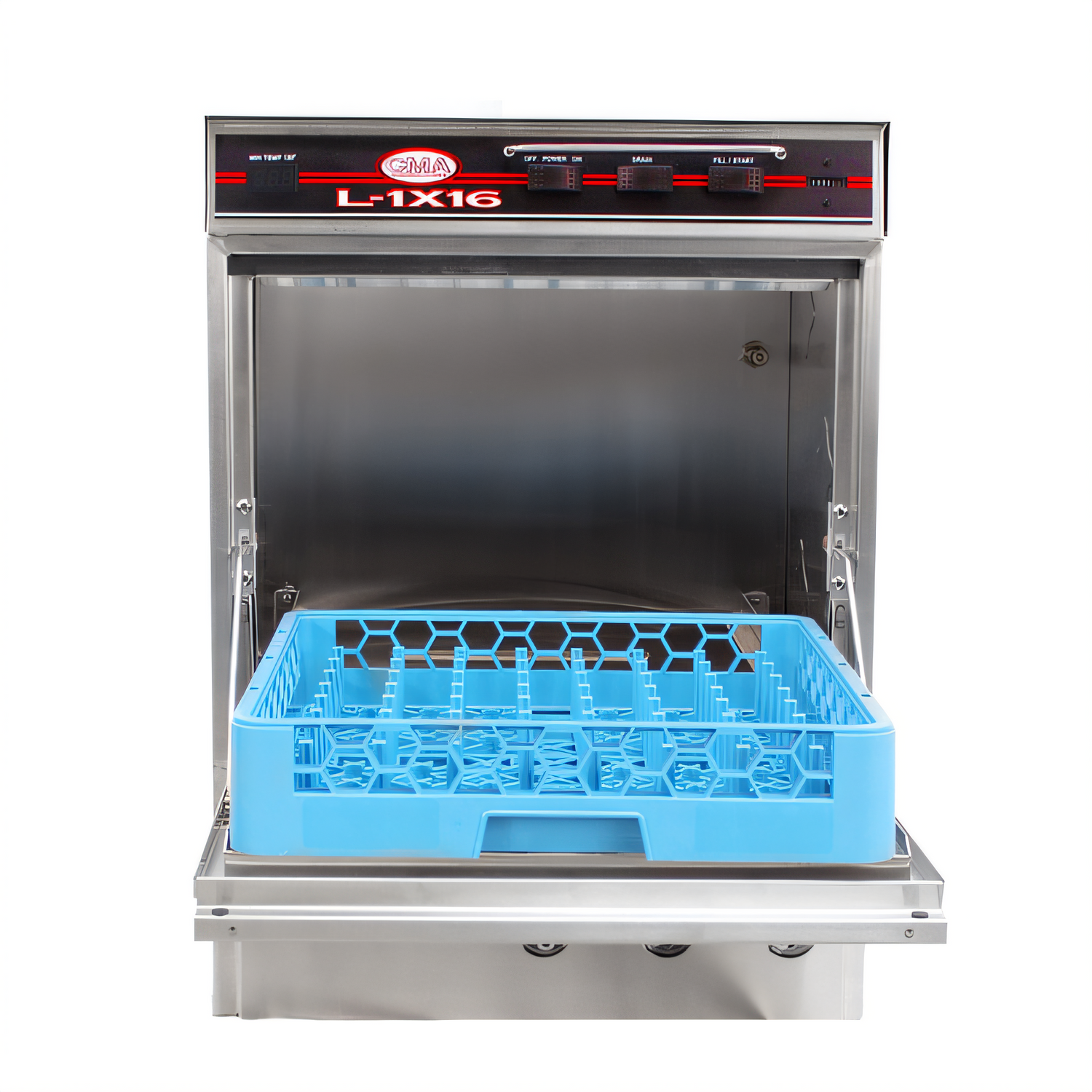

CMA Dishmachines L-1X16 W/HEATER Energy Mizer Undercounter Dishwashers
Product Description
Designed for busy bars, cafés, and satellite kitchens with limited space but high volume, the Energy Mizer™ L-1X16 delivers sparkling results while slashing utility costs. A powerful 1 HP wash pump, smart chemical dosing, and water-saving cycles help keep operating costs in check, so you can focus on providing excellent service rather than worrying about the dishwasher. The Energy Mizer™ L-1X16 is NSF, UL, and cUL listed, and can handle up to 30 racks per hour using low-temperature chemical sanitizing.
Why You'll Love It:
- This commercial dishwasher is NSF-rated, capable of handling 30 racks or 120 covers per hour, ensuring reliable and consistent output.
- It uses only 1.7 gallons of water per cycle, significantly reducing both water and chemical expenses.
- The 16-inch door clearance can accommodate sheet pans, pitchers, and oversized plates with ease.
- The built-in sustainer heater maintains the incoming water temperature, ensuring consistent sanitation.
- The upper and lower stainless steel wash arms, with reinforced end caps, provide full-coverage cleaning.
- The integrated features, including chemical pumps, deliming system, primer switches, and instant-start, eliminate the need for additional add-ons.
- The pumped drain and exclusive pump-purge cycle prevent soil and chemical carry-over to the rinse, improving efficiency.
- The "Work-in-a-Drawer" design allows for fast, front-side service as all electrical components slide out.
- The all-stainless construction, including the tank, cabinet, pump impeller, and drawer, ensures a long, corrosion-free life.
- The door safety switch protects staff by stopping the cycle if the door is opened.
- The dishwasher ships with one open rack and one peg rack, ready to use right out of the box.
Popular Options (Sold Separately):
- Universal storage pedestal - Provides storage space for two extra racks underneath the machine.
- Stainless steel legs - Available in 4-inch or 6-inch sizes to adjust the working height as needed.
- 48-inch undercounter dishtable with pre-rinse - Adds a convenient prep space and pre-rinse function.
- Low-chemical alarm kit - Alerts you when chemical levels are low.
Product Specs
| Specification | Value |
|---|---|
| Capacity | 30 racks/hr (120 covers) |
| Cycle Breakdown | Wash 58 s • Rinse 32 s • Purge 30 s • Total 120 s |
| Water Usage | 1.7 gal per rack • 51 gal per hour |
| Required Water Temp | 120 °F minimum (140 °F recommended) |
| Wash Tank Capacity | 1.7 gal |
| Wash Pump | 1 HP • 35 GPM |
| Dish Clearance | 16 in. |
| Rack Size | 20 in. × 20 in. |
| Unit Dimensions (W × D × H) | 24 in. × 23.5 in. × 34.25 in. |
| Electrical | 115 V • 16 A • Single phase |
| Water Inlet | ½ in. NPT |
| Drain | 1 in. pumped (uphill stand-pipe capable) |
| Shipping Weight | 175 lb |
| Certifications | NSF • UL • cUL |
Features
| Specification | Value |
|---|---|
| Manufacturer | CMA Dishmachines |
| Brand Name | Energy Mizer |
| Certifications | NSF, UL |
| Height | 34.25in |
| Width | 24.0in |
| Depth | 23.5in |
| Shipping Weight | 175.0lbs |
| Temperature | low temp chemical |
| Rack Capacity | approximately (30) racks/hour |
| Construction | stainless steel |
| Cabinet base | fully enclosed |
| Rack Size | 20" x 20" |
| Specifications | Dishwasher, undercounter, 24"W x 23-1/2"D x 34-1/4"H, with sustainer heater, low temperature chemical sanitizing, (30) racks/hour, 16"H dish clearance, built-in chemical pumps & deliming system, built-in primer switches & instant start, upper & lower stainless steel wash arms with reinforced end caps, pumped drain, pump purging system, built-in strainer for water inlet, door safety switch, electrical components housed in stainless steel drawer, stainless steel construction, includes (1) open & (1) peg rack, 1 HP wash pump, NSF, UL, cUL |
