Description

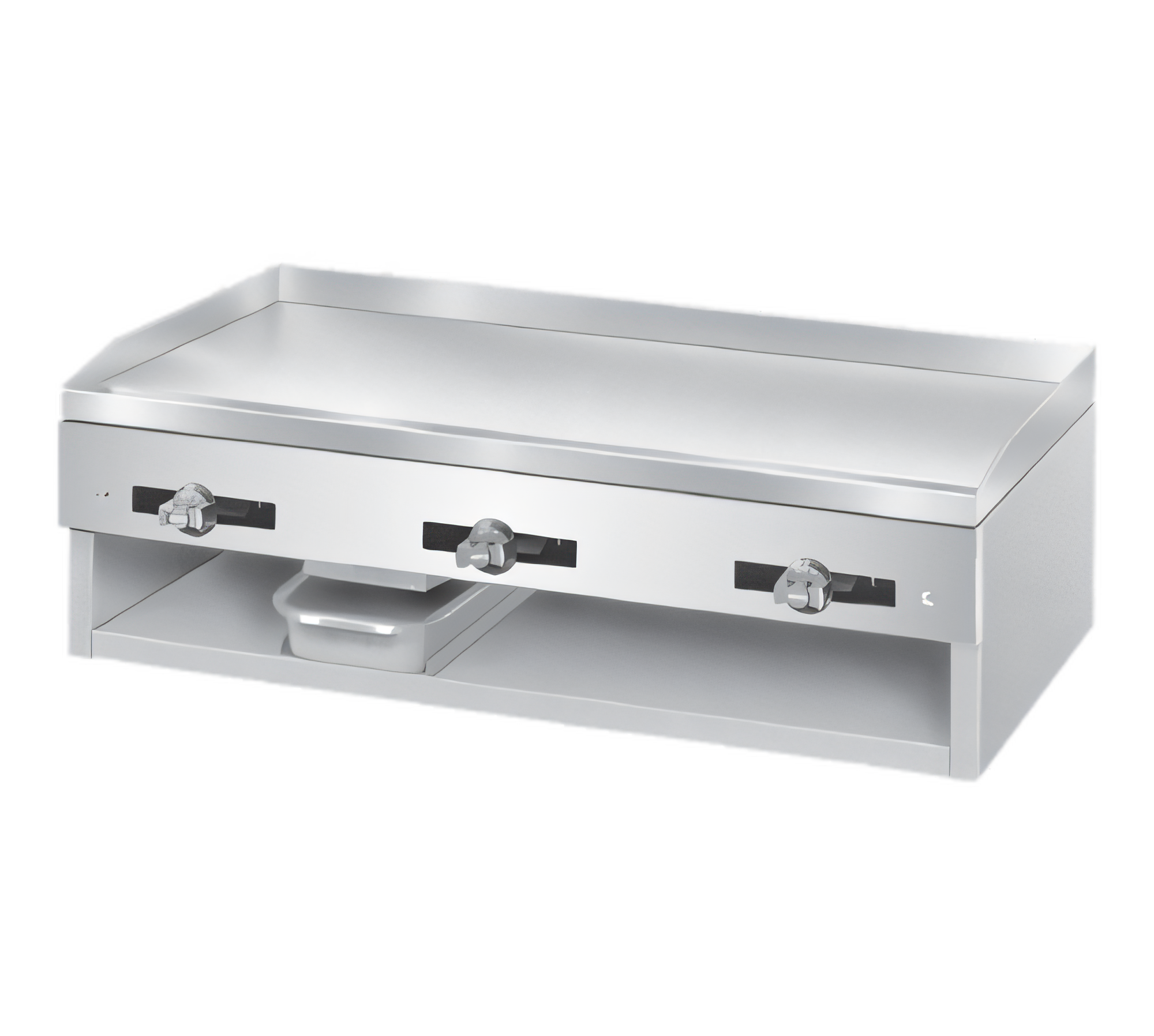

Comstock-Castle 1040 Gas Griddles
Product Description
The Comstock-Castle Model 1040 is a powerful and compact griddle that delivers exceptional performance. With a 48,000 BTU output and a shallow 20-inch depth, it packs a punch in a small footprint, making it perfect for diners, concessions, and other high-volume operations. Featuring even heat distribution and quick recovery, this griddle ensures consistent cooking results. Additionally, the Model 1040 is NSF and ETL Sanitation Listed, providing peace of mind in terms of food safety and easy clean-up.
Why You'll Love It:
- The generous 40" W x 16" D cooking area allows you to prepare piles of pancakes, burgers, or fajitas without overcrowding the surface.
- The 1/2" thick, highly-polished steel construction minimizes food sticking and maintains a constant sear. Optional 3/4" or 1" plates are also available.
- Four independent heat zones, each with a cast-iron "H" burner that delivers 12,000 BTU, provide a total of 48,000 BTU for effective cooking.
- The wide front trough and seamless, full-width drawer keep the surfaces clear and make cleaning simple, thanks to the cold-zone grease management system.
- The 20"-deep welded frame, stainless steel front and sides, and aluminized steel back panel are built to resist corrosion, ensuring the unit lasts in the toughest kitchens.
- The low-profile 10" overall height allows for easy placement on counters or equipment stands, providing a comfortable working height.
- Ready for service with standing pilots, brass manual gas valves, and a factory-set regulator (3/4" NPT) for quick installation and daily start-up.
- Certified as safe and sanitary, with NSF and ETL Sanitation listings.
- Proudly made in the USA by Comstock-Castle, a company that has been crafting commercial cooking equipment since 1838.
Popular Accessories & Options:
- 4-inch or 6-inch legs or stands that can be added to the countertop
- Plates that are either 3/4-inch or 1-inch extra thick
- Thermostatic controls to precisely manage the temperature
- Chrome-plated cooking surface for a sleek, durable finish
- Scrapers, spatulas, and cleaning kits to maintain the equipment
- Safety pilot upgrade, gas hoses, and knob protectors for added safety
Product Specs
| Specification | Value |
|---|---|
| Cooking surface | 40" W × 16" D (1,020 × 406 mm) |
| Plate thickness | ½" (standard) – optional ¾" or 1" |
| Total BTU | 48,000 BTU/hr (4 × 12,000 BTU) |
| Controls | 4 manual valves with standing pilots |
| Overall dimensions | 40" W × 20" D × 10" H |
| Gas connection | ¾" NPT (rear) |
| Manifold pressure | 4" WC Natural | 10" WC Propane |
| Shipping weight | Approx. 170 lb (77 kg) |
| Certifications | NSF, ETL Sanitation |
| Warranty | 1-year parts & labor (see details below) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Comstock-Castle |
| Certifications | NSF |
| Height | 12.0in |
| Width | 40.0in |
| Depth | 20.0in |
| Shipping Weight | 195.0lbs |
| Cooking Surface Depth (front - back) | 15" - 19" |
| Exterior Finish | stainless steel front & sides |
| Cooking Surface Width (side - side) | 37" - 42" |
| Controls | manual controls |
| Plate Thickness | 1/2" |
| Griddle Plate Finish | smooth steel |
| Specifications | Griddle, 20" deep frame, countertop, gas, (1) 40" wide x 16" deep x 1/2" thick griddle plate, (4) manual controls, removable grease drawer, stainless steel front & sides, ¾" rear gas connection, 48,000 BTU, NSF |
