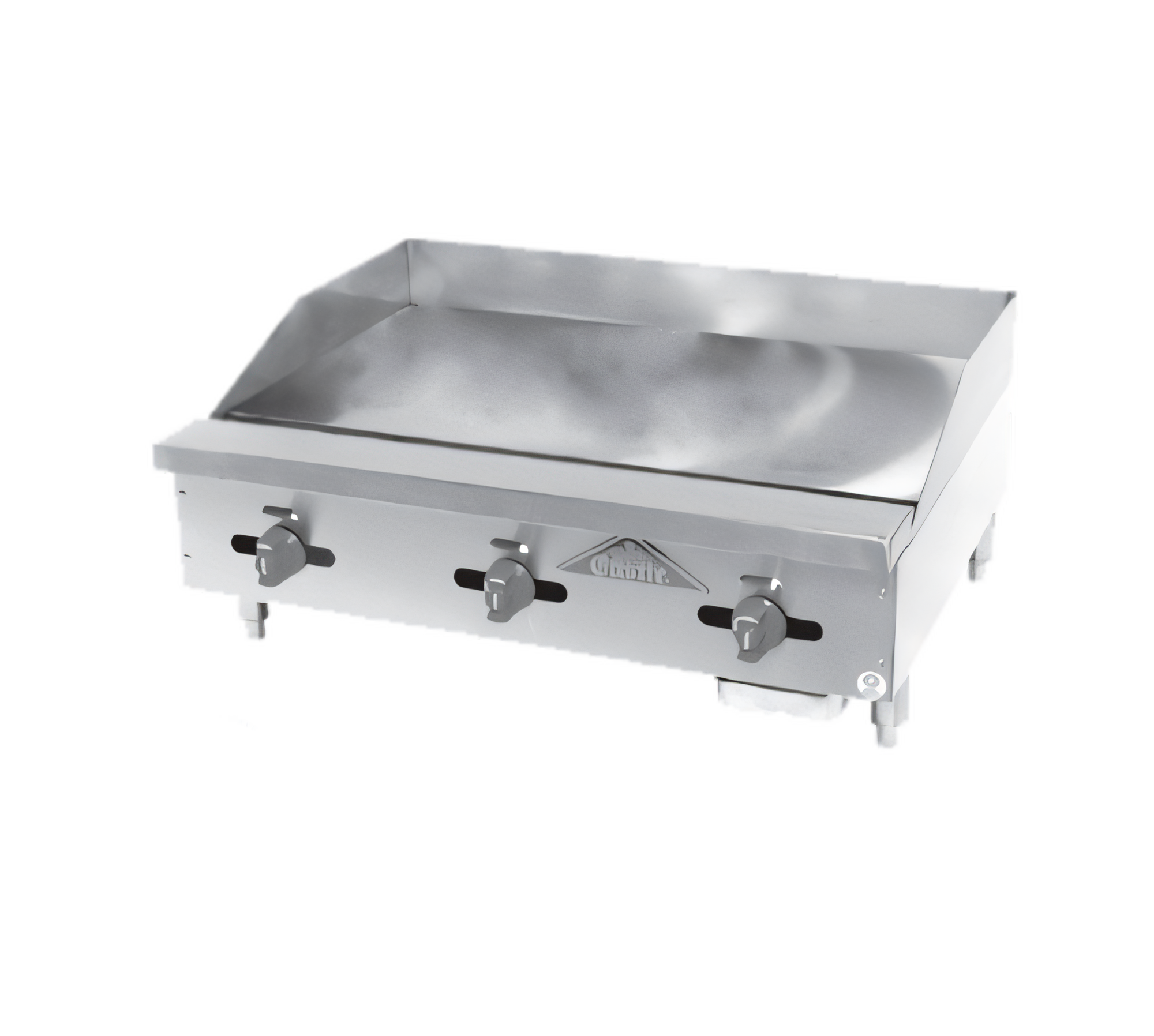

Comstock-Castle 3860TG Diner Series Gas Griddles

Product Description

The Diner Series 38 thermostatic griddle boasts a 30-inch cooking depth and an impressive 150,000 BTU output, making it an ideal choice for high-volume commercial kitchens such as busy breakfast bars, burger joints, and late-night diners. Featuring the renowned Comstock-Castle durability, this space-saving countertop model offers exceptional cooking capacity in a compact design. Please note that the overall height, including the splash guard, is 4 inches taller than the cooking depth. For details on warranty and coverage, kindly contact us.

Key Features:

  • Large cooking surface: 60 inches wide by 30 inches deep, with a 3/4-inch thick polished steel plate for fast heat recovery and even heat distribution.
  • Five high-powered burners: Each 30,000 BTU burner is independently controlled, allowing precise temperature regulation from 150 to 450 degrees Fahrenheit in different zones.
  • Splash guard and grease trough: The 4-inch stainless steel splash guard at the back and ends contains grease and keeps the work area clean, while the 3.5-inch wide front grease trough channels runoff to a large, removable drawer.
  • Durable commercial-grade construction: The all-stainless steel exterior and heavy-duty welded angle-iron frame are built to withstand heavy commercial use.
  • Flexible gas connection: The 3/4-inch rear gas connection includes a manual shut-off valve and can be field-converted from natural gas to liquid propane.

Ideal Applications:

  • Restaurants and diners that operate around the clock and serve large volumes of customers, especially during breakfast hours.
  • Food truck commissaries and ghost kitchens that need to produce a high output of food in a limited space.
  • Catering businesses that need to prepare a variety of dishes like pancakes, smash burgers, and fajitas at the same time.

Product Specs

Specification Value
Cooking surface 60″ W × 30″ D (≈ 1,800 in²)
Overall dimensions 60″ W × 38″ D × 15″ H*
Plate thickness ¾″ (19 mm) polished steel
Total heat output 150,000 BTU/hr
Controls (5) snap-action thermostats, 150 – 450 °F
Gas inlet ¾″ NPT, rear
Grease management 3½″ trough & oversized drawer
Construction Stainless steel front, sides & splash; welded frame
Certification NSF
Warranty 1-year parts & labor (see below)
Approx. shipping weight ≈ 875 lb / 398 kg

Features

Specification Value
Manufacturer Comstock-Castle
Brand Name Diner Series
Certifications NSF
Height 15.75in
Width 60.0in
Depth 38.0in
Shipping Weight 875.0lbs
Cooking Surface Width (side - side) 55" - 60"
Exterior Finish all stainless steel exterior
Controls thermostat / solid state controls
Plate Thickness 3/4"
Griddle Plate Finish smooth steel
Cooking Surface Depth (front - back) 30" - 36"
Specifications Diner Series Griddle, countertop, gas, 60" wide x 38" deep frame, 60" wide x 30" deep x 3/4" thick polished steel griddle plate, (5) thermostat controls, 4" splash guard on back & ends, 3-1/2" wide front grease trough, large removable grease drawer, stainless steel exterior, 3/4” gas connection, 150,000 BTU, NSF
NSF
NSFNSF Certified – This product meets NSF International food safety and sanitation standards for commercial foodservice equipment.
