Description

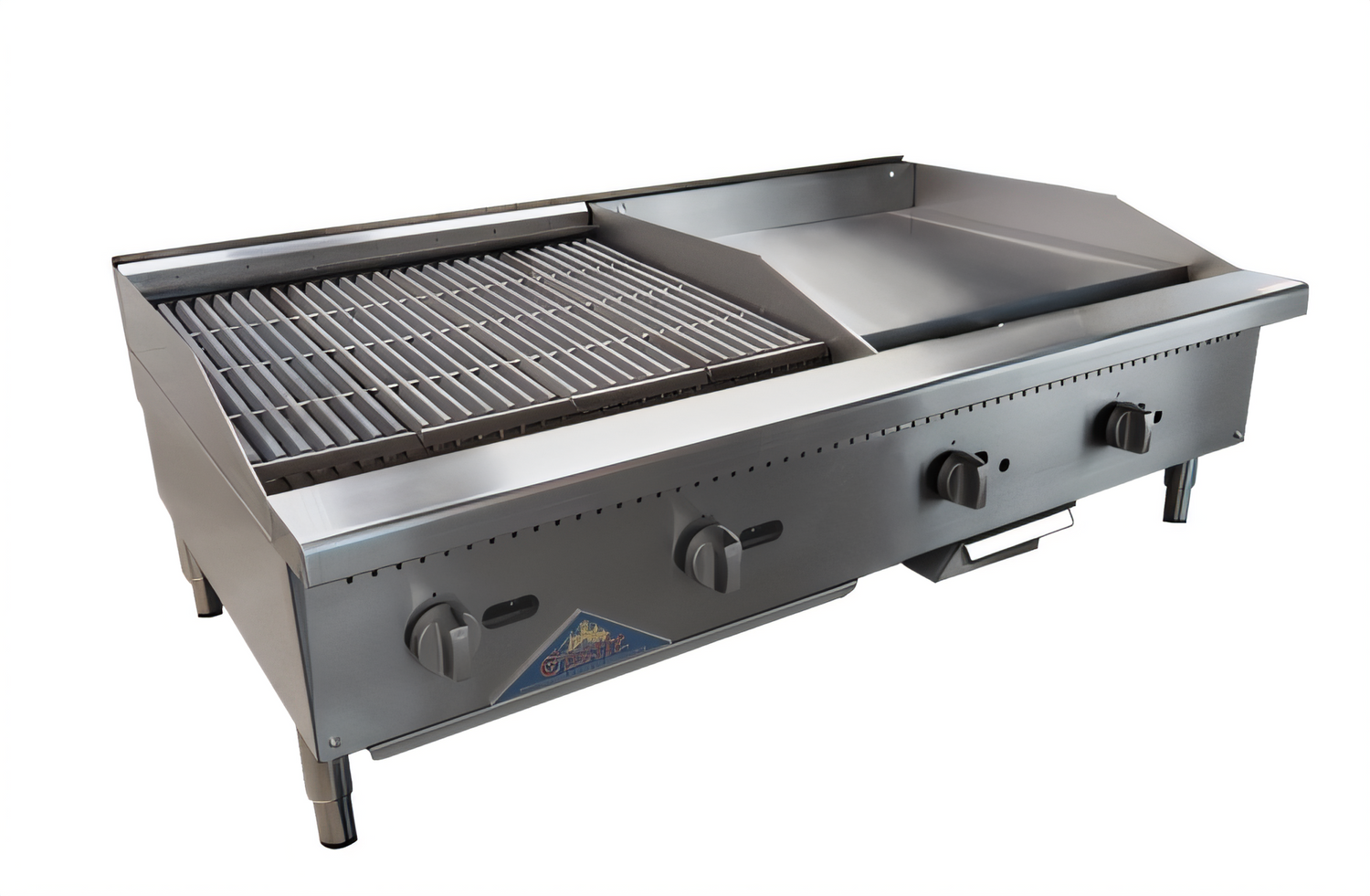

Comstock-Castle CS24RB-24G Gas Charbroilers
Product Description
Streamlined for efficiency, the Comstock-Castle CS24RB-24G combines a full-size 24" polished steel griddle and a 24" cast-iron char-broiler in a single 48" countertop unit. With a total output of 130,000 BTU, this versatile appliance can handle breakfast rushes, lunch lines, and dinner service, offering the menu flexibility your kitchen demands without sacrificing valuable workspace.
Key Features & Benefits:
- The dual-zone cooking setup allows you to sear steaks on the 24-inch griddle while frying eggs on the 24-inch broiler at the same time.
- The powerful "U" burners deliver a total of 130,000 BTUs, with two 30,000 BTU burners under the griddle and two 35,000 BTU burners under the broiler, providing heavy-duty heat for your cooking needs.
- The 3/4-inch polished steel plate heats evenly and cleans up quickly, providing a high-quality cooking surface.
- The adjustable cast-iron grates on the broiler can be set flat or sloped, allowing you to achieve perfect grill marks and effective fat drainage.
- The all-stainless-steel exterior, splash guards, and extra-large grease drawers on both sections make this unit corrosion-resistant and easy to maintain.
- The reliable controls, including brass gas valves, standing pilots, and a factory-set pressure regulator, ensure quick and easy start-ups.
- The 3/4-inch NPT rear gas manifold and adjustable stainless steel legs make this unit simple to install on any surface.
- This appliance is certified safe for use throughout the USA and Canada, meeting cCSAus and CSA Sanitation standards.
Installation & Operation Notes:
- The unit is shipped for the specific gas type you selected. However, a conversion kit is included if you need to change the gas type later.
- Make sure to provide adequate ventilation and clearances around the unit, as required by local codes.
- The installer is responsible for making the final gas pressure adjustment and calibrating the thermostat.
- To maintain the unit's performance, remember to regularly empty the grease drawers and season the griddle plate.
Product Specs
| Specification | Value |
|---|---|
| Model | CS24RB-24G |
| Overall Width | 48″ / 1220 mm |
| Overall Depth | 30.2″ / 767 mm |
| Overall Height | 15.75″ / 400 mm (with legs) |
| Cooking Surfaces | Griddle: 24″ W × 20.25″ D × ¾″ thickBroiler: 24″ W × 20.25″ D |
| Griddle Output | 60,000 BTU (2 × 30,000 BTU burners) |
| Char-Broiler Output | 70,000 BTU (2 × 35,000 BTU burners) |
| Total BTU | 130,000 BTU/hr |
| Gas Connection | ¾″ NPT rear manifold, factory regulator included |
| Shipping Weight | 425 lb / 193 kg (approx.) |
| Certifications | cCSAus, CSA Sanitation |
Features
| Specification | Value |
|---|---|
| Manufacturer | Comstock-Castle |
| Certifications | cETLus, ETL-Sanitation, CSA, cCSAus |
| Height | 15.75in |
| Width | 48.0in |
| Depth | 30.2in |
| Broiler area | 24"W x 21"D broiler area |
| Griddle Area | 24"W x 21"D griddle area |
| Griddle Plate Finish | steel |
| Plate Thickness | 3/4" |
| Griddle Controls | manual controls |
| Exterior Finish | stainless steel front & sides |
| Specifications | Griddle / Char-Broiler, countertop, gas, 48" wide x 30.5" deep frame, (1) 24" wide x 20.5" deep x 3/4" thick griddle plate, (1) 24" wide x 20" deep broiler area, cast iron char grates with sloped & flat cooking options, 130,000 total BTU, (1) 3/4" gas connection, cCSAus, CSA Sanitation |
