Description

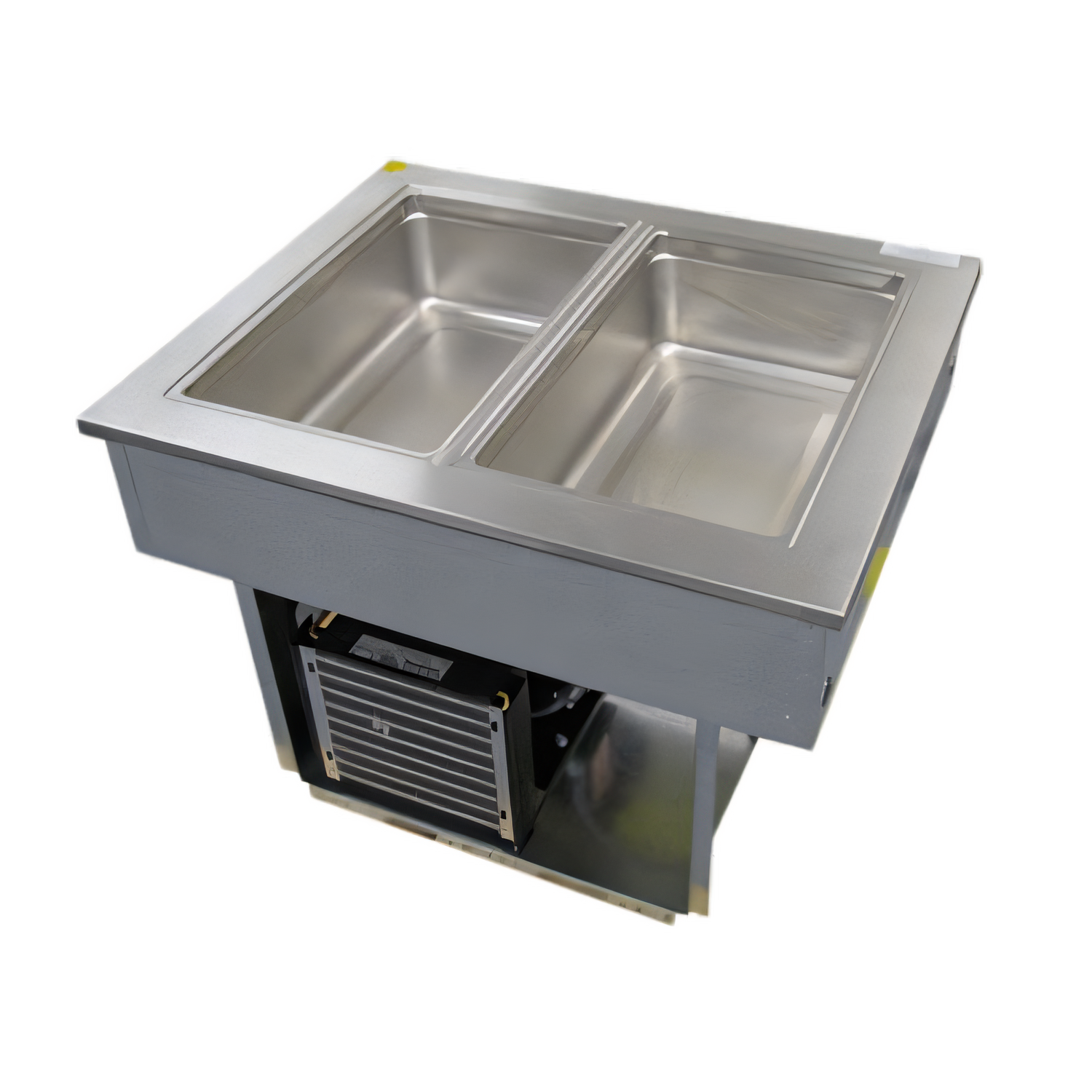

Delfield 8186-EFP LiquiTec Steam Tables & Food Wells
Product Description
Delfield's self-contained, flush-mount refrigerated prep unit with R290 refrigerant offers efficient, full-surface cooling to keep 12" x 20" pans at a safe, NSF-7 temperature range of 33-41°F, even in hot kitchens up to 86°F. The LiquiTec® eutectic fluid technology allows for a compact design that maximizes holding capacity in a smaller footprint. Available in 1- to 5-pan models to accommodate your specific needs.
Why you'll love it:
- The unit has six individual wells, each insulated, that can accommodate 12" x 20" pans - perfect for salads, toppings, or grab-and-go items.
- The LiquiTec® eutectic fluid surrounds all 5 well surfaces, providing 100% cold contact and eliminating hot spots.
- The energy-efficient GreenGenius™ R290 refrigerant and high-density, zero-ODP/GWP polyurethane foam help keep energy costs low.
- The one-piece stainless steel top and inner liner are corrosion-resistant and easy to wipe clean.
- The pre-installed press-fit gasket allows for a simple "drop-in" installation, without the need for messy sealants.
- The self-contained refrigeration system, including a 1/3 HP compressor, electronic temperature control, and expansion valve, is factory-mounted.
- The standard 1/2" stainless steel drains with a copper manifold facilitate quick end-of-shift clean-up.
- The 8-ft power cord with a NEMA 5-15P plug makes it easy to connect to 115 V power and start chilling.
- The unit is certified cULus, UL, and NSF, ensuring immediate code compliance.
What's included:
- A stainless steel louver that can be installed in the field to provide ventilation.
- A pre-installed press-fit perimeter gasket.
- An 8-foot power cord with a NEMA 5-15P plug.
- An installation and operation manual.
Popular factory options:
- Sneeze guards that can have either a single or double layer of protection (FlexiShield™)
- Kit to relocate the refrigeration compressor to a remote location
- Valve to shut off the drain
- Electrical system designed for 220 volts and 50 hertz, for export markets (special-order item)
Product Specs
| Specification | Value |
|---|---|
| Pan capacity | 6 × 12" × 20" pans (GN 1/1) |
| Pan depth | 4" or 6" (flush with counter) |
| Required counter cut-out | 85.00" W × 25.00" D (216 cm × 64 cm) |
| Well depth | 6.25" (16 cm) |
| Refrigerant | R290 Hydrocarbon |
| Compressor | 1/3 HP, self-contained |
| Electrical | 115 V / 60 Hz / 1-Ph, 4.8 A, NEMA 5-15P |
| BTU load | 1,169 BTU/h |
| System capacity | 2,162 BTU/h |
| Shipping weight | 306 lb (139 kg) |
| Certifications | cULus, UL, NSF-7 |
| Warranty | 1-year parts & labor |
Features
| Specification | Value |
|---|---|
| Manufacturer | Delfield |
| Brand Name | LiquiTec |
| Certifications | NSF, UL |
| Height | 24.24in |
| Width | 86.0in |
| Depth | 26.0in |
| Shipping Weight | 306.0lbs |
| Finish | stainless steel top & inner liner, galvanized outer liner |
| Pan Qty | 6-pan |
| Pan Size | full-size (12" x 20") |
| Style | self-contained refrigeration |
| Layout | deep |
| Width (side - side) | 85 - 90 inches |
| Insulation | insulated |
| Specifications | LiquiTec® Drop-In Cool Food Unit, 6-pan size, 4" or 6" deep pans flush with counter top, insulated pan, stainless steel inner liner & top, galvanized outer liner, self-contained Eutectic fluid refrigerated system, R290 Hydrocarbon refrigerant, 1/3 hp, (85" x 25" cutout required), cUL, UL, NSF |
