Description

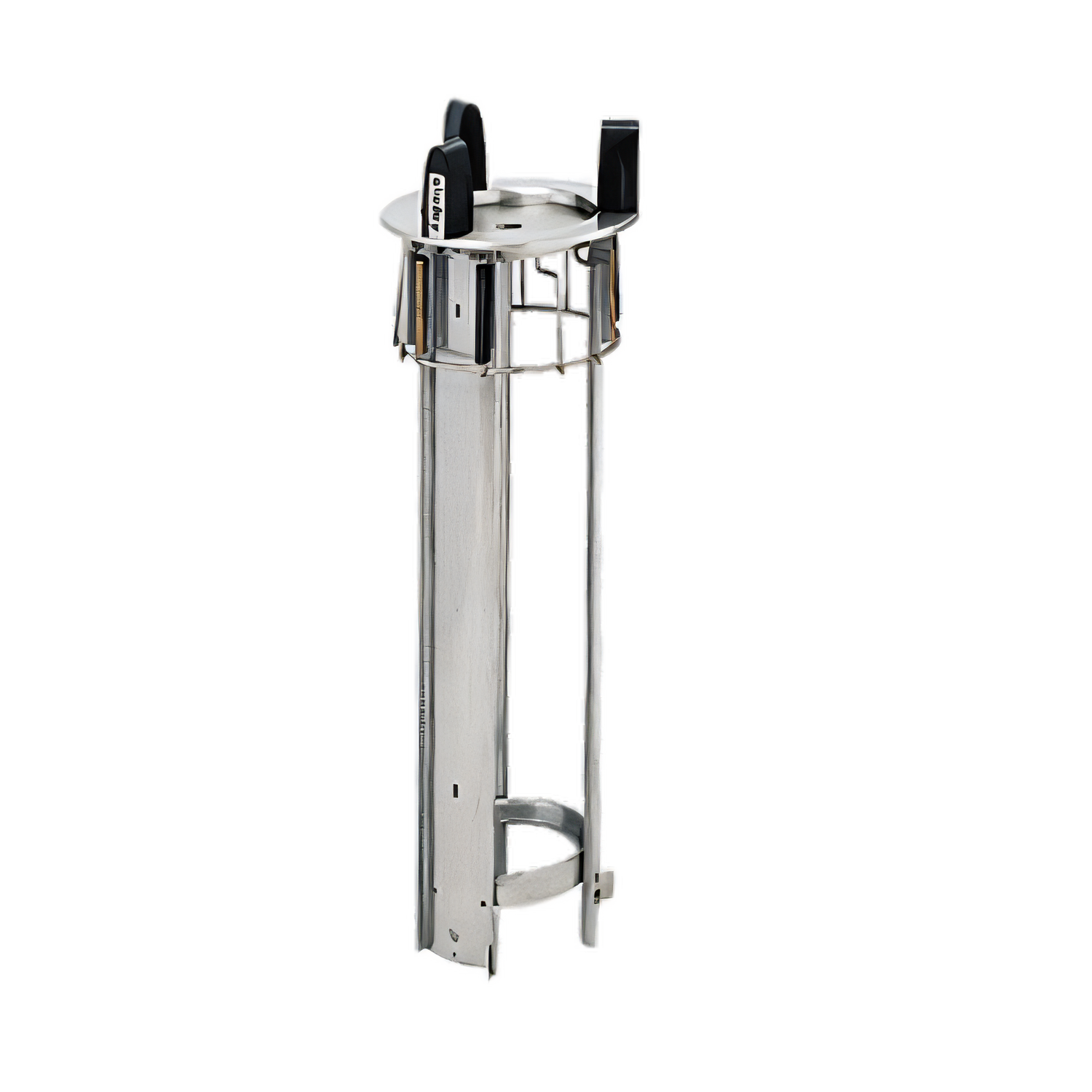

Delfield DIS-1013-ET Dish & Tray Dispensers
Product Description
The Delfield DIS-1013-ET is a self-leveling plate warmer designed for high-volume food service operations like cafeterias, buffets, and tray-make lines. The drop-in unit fits a 12-7/8" counter cut-out and uses a single dispensing tube to maintain a gentle, even 120-140°F heat across a 9.12"–10.12" plate stack.
Key benefits:
- Even temperature distribution with a 700 W heater, fan motor, and filtered air intake for uniform plate heating.
- Adjustable self-elevating carrier: easily add or remove stainless-steel springs in minutes to match the plate weight.
- Durable all-stainless steel construction, including an integrally welded flange, side channels, tube, and outer jacket, for maximum durability and food-safe sanitation.
- Simple front-access ON/OFF rocker and concealed thermostat for fast setup and precise temperature control.
- High-impact plastic guide posts protect plate edges and maintain smooth vertical travel.
- Plug-and-play design with a 4 ft (1.2 m) cord and NEMA 5-15P plug, so no hard-wiring is required.
Product Specs
| Specification | Value |
|---|---|
| Model | DIS-1013-ET |
| Dish diameter range | 9.12" – 10.12" (23 – 26 cm) |
| Plate capacity | Approx. 72 plates | 24" max stack height |
| Flange diameter | 13.50" (34 cm) |
| Counter cut-out | 12.87" (12-7/8") / 33 cm round |
| Required counter depth | 28.00" (71 cm) |
| Temperature range | 120 °F – 140 °F (49 °C – 60 °C) adjustable |
| Heating element | 700 W convection module with fan |
| Electrical | 120 V / 60 Hz / 1-ph • 5.5 A • NEMA 5-15P |
| Construction | Stainless steel tube, flange, channels & outer jacket |
| Certifications | cULus, NSF |
| Ship weight | 29 lb (13 kg) |
| Warranty | 1-year parts / 90-day labor |
Features
| Specification | Value |
|---|---|
| Manufacturer | Delfield |
| Certifications | NSF, UL |
| Height | 28.0in |
| Shipping Weight | 27.0lbs |
| Plate Style | round |
| Base Style | unshielded (open) |
| Plate Diameter | 10" - 12" |
| Type | heated |
| Specifications | Dispenser, Even Temp Heated Dish, drop-in type, single self-elevating dish dispensing tube, maximum dish size approximately 10.12" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 12-7/8", flange diameter 13-1/2", 7.0 kW, cUL, UL, NSF |
