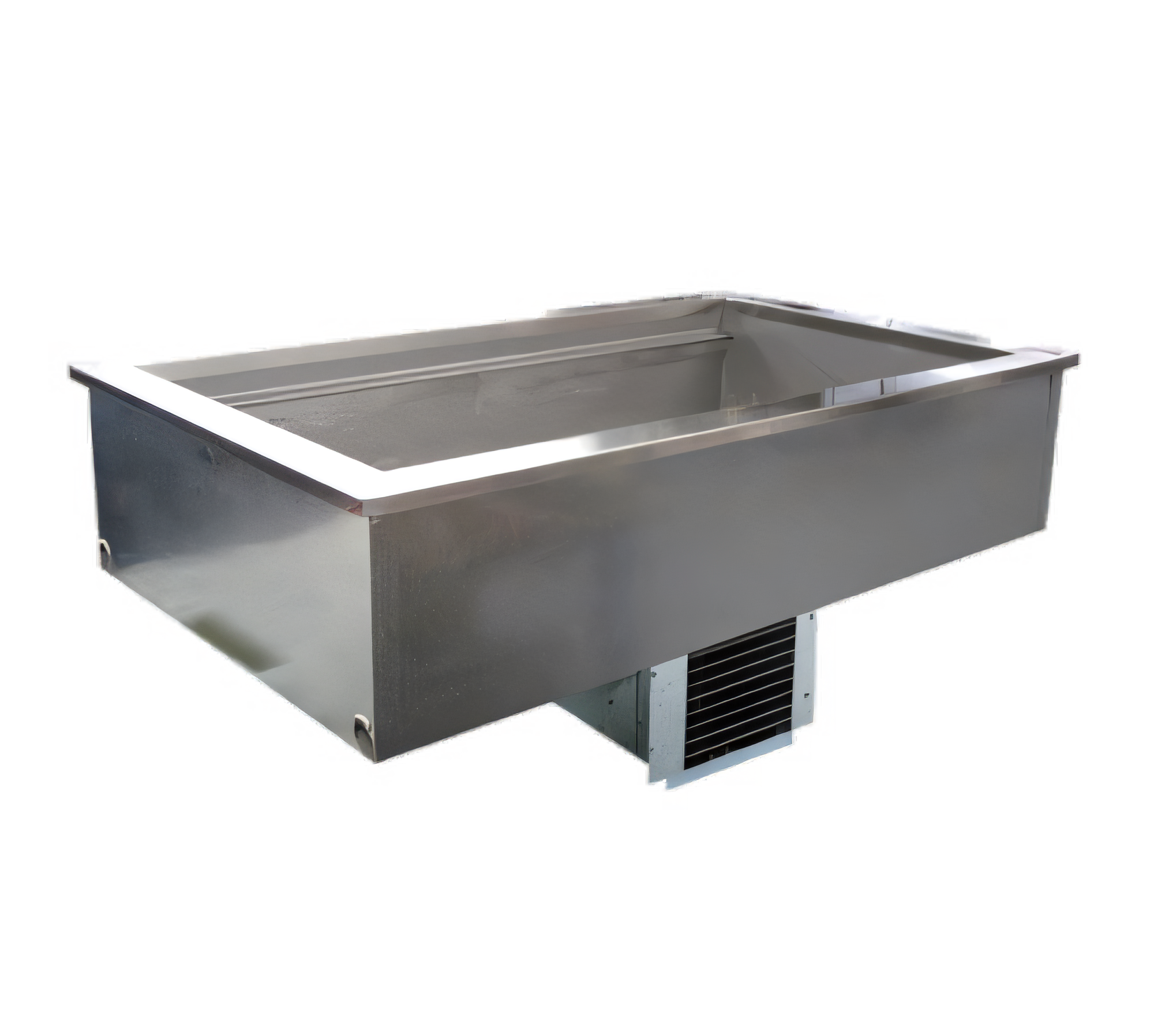

Delfield N8169BP Steam Tables & Food Wells
Product Description
5-Pan | R290 GreenGenius™ Refrigeration | NSF-7
Delfield's N8169BP mechanically cooled cold pan keeps salads, toppings, and grab-and-go favorites safely chilled and perfectly displayed. Built for quick "drop-in" installation, this 69-inch unit delivers reliable 33 – 41 °F holding temperatures—even in 86 °F kitchens—while its eco-friendly R290 refrigeration system lowers energy use and environmental impact. For additional options like sneeze guards, custom pan configurations, or remote refrigeration, contact our team for factory-approved accessories. For details on warranty and coverage, please get in touch.
Key Features:
- This unit can hold up to five (5) 12" x 20" pans, and the necessary adapter bars are included.
- The unit has an 8-inch deep, fully insulated well with a built-in V-stamped pan rest, eliminating the need for thumb screws or clips.
- The top is made of 20-gauge stainless steel, and the interior liner is made of 22-gauge stainless steel.
- It has high-density, CFC-free polyurethane foam insulation that is non-ODP (Ozone Depletion Potential) and non-GWP (Global Warming Potential).
- The self-contained 2/7 hp GreenGenius™ refrigeration system uses the natural R290 hydrocarbon refrigerant.
- The electronic temperature control ensures consistent NSF-7 (National Sanitation Foundation) product safety.
- It has a 1-inch diameter PVC drain for easy and fast cleanup.
- The non-marring press-fit gasket speeds up installation and provides a tight seal against the counter.
- The exterior body is made of galvanized steel, and the compressor frame is 16-gauge galvanized.
- It comes with an 8-foot cord and a NEMA 5-15P plug, allowing you to simply plug it in and start using it.
- A stainless steel louver is supplied for field installation.
Installation Notes:
- Make a 68-inch by 25-inch opening in the counter and install the provided gasket so that it is flush with the countertop.
- Install the included stainless steel louver to allow proper airflow for the condenser.
- Connect a 1-inch drain line that meets local code requirements.
- The unit comes with an 8-foot power cord; plug it into a dedicated 15-amp, 115-volt electrical outlet.
Product Specs
| Specification | Value |
|---|---|
| Model | N8169BP |
| Overall Size (W × D) | 69" × 26" (175 cm × 66 cm) |
| Required Counter Cutout | 68" × 25" (173 cm × 64 cm) |
| Pan Capacity | Five 12" × 20" pans (4" or 6" deep – pans not included) |
| Well Depth | 8" (20 cm) |
| Refrigerant / HP | R290 / 2 / 7 hp |
| Voltage / Phase | 115 V / 60 Hz / 1-phase |
| Amps | 3.1 A |
| BTU Load | 1,092 BTU/hr |
| Plug Type | NEMA 5-15P |
| Shipping Weight | 243 lb (109 kg) |
| Certifications | cULus, NSF 7, Hydrocarbon-Ready |
Features
| Specification | Value |
|---|---|
| Manufacturer | Delfield |
| Certifications | NSF, UL |
| Height | 21.87in |
| Width | 69.0in |
| Depth | 26.0in |
| Shipping Weight | 243.0lbs |
| Pan Qty | 5-pan |
| Style | self-contained refrigeration |
| Finish | galvanized steel outer liner |
| Insulation | insulated |
| Layout | deep |
| Width (side - side) | 67 - 72 inches |
| Pan Size | full-size (12" x 20") |
| Specifications | Drop-In Mechanically Cooled Pan, 69" W x 26" D, 5-pan size, 8" deep, 1" dia. drain, insulated pan, stainless steel inner liner & top, galvanized steel outer liner, includes adapter bars, self-contained refrigeration, R290 Hydrocarbon refrigerant, 2/7 hp, (68" x 25" cutout required), cUL, UL, NSF |
