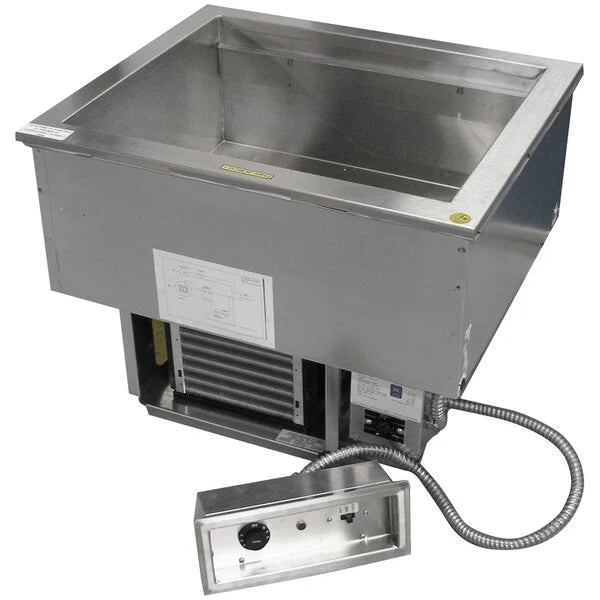

Delfield N8669P Steam Tables & Food Wells
Product Description
The Delfield N8669P offers versatile temperature control, allowing you to serve hot and cold dishes conveniently. This self-contained unit features a refrigerated cold pan and an immersion heater, enabling you to switch between NSF-4 hot and NSF-7 cold operation with the flip of a switch. Maximize your kitchen's efficiency without sacrificing valuable counter space.
Features:
- The unit has a three-way Hot / Cold / Off switch on the remote control panel, allowing for dual-mode operation.
- It can hold five full-size 12" × 20" pans, with the necessary adaptor bars included.
- The single stainless steel tank is 8" deep, with a 1" drain and screen for quick and easy clean-up.
- The pan support is adjustable, allowing for flush-mount positioning for hot service or 2" recessed for cold.
- The refrigeration system is energy-efficient, using a GreenGenius™ R290 refrigerant and a 1/4 HP hermetic compressor.
- The electronic cold-side thermostat and high-limit safety on the immersion heater provide precise temperature control.
- The rugged construction features a one-piece stainless steel top and liner, with a galvanized exterior housing.
- The unit comes pre-installed with a push-in flange gasket and stainless louver, allowing for a true "drop-in and go" installation.
- The unit is cULus, UL, and NSF-listed for both hot and cold operation.
Features:
- The device comes with a remote control panel that has a three-way selector and an adjustable hot thermostat, allowing you to easily control the settings.
- It includes 5 stainless steel adaptor bars that can accommodate full-size pans.
- The device has a factory-installed perimeter gasket for enhanced insulation.
- It features a stainless steel louver for the condenser air intake, ensuring efficient airflow.
Product Specs
| Specification | Value |
|---|---|
| Model | N8669P |
| Overall length | 69 in (175.3 cm) |
| Counter cutout required | 68 in × 25 in (173 cm × 64 cm) |
| Pan capacity | 5 × 12 in × 20 in full-size pans, up to 6 in deep |
| Well depth | 8 in (20.3 cm) |
| Refrigerant | R290, 3.5 oz charge |
| Compressor | 1/4 HP, self-contained |
| Electrical | 120-240 V / 60 Hz / 1-ph, 42 A (field-wired) |
| BTU load (design) | 1,137 BTU/hr |
| Shipping weight | 266 lb (121 kg) |
| Certifications | cULus, UL, NSF, R290 |
Features
| Specification | Value |
|---|---|
| Manufacturer | Delfield |
| Certifications | NSF, UL |
| Height | 25.75in |
| Width | 69.0in |
| Depth | 26.0in |
| Shipping Weight | 266.0lbs |
| Controls | single controls |
| Pan Qty | 5-pan |
| Type | hot/cold |
| Cooling Style | mechanically cooled |
| Finish | stainless steel top & well, galvanized exterior |
| Specifications | Drop-In Hot/Cold Food Well, 69", 5-pan size for 12" x 20" pans, 8" deep single tank with drain, remote control panel with single temperature control & three-way toggle switch, stainless steel top & well, galvanized steel exterior housing, self-contained refrigeration, R290 refrigerant, 1/4 HP, (68" x 25" cutout required), cUL, UL, NSF |
