Description

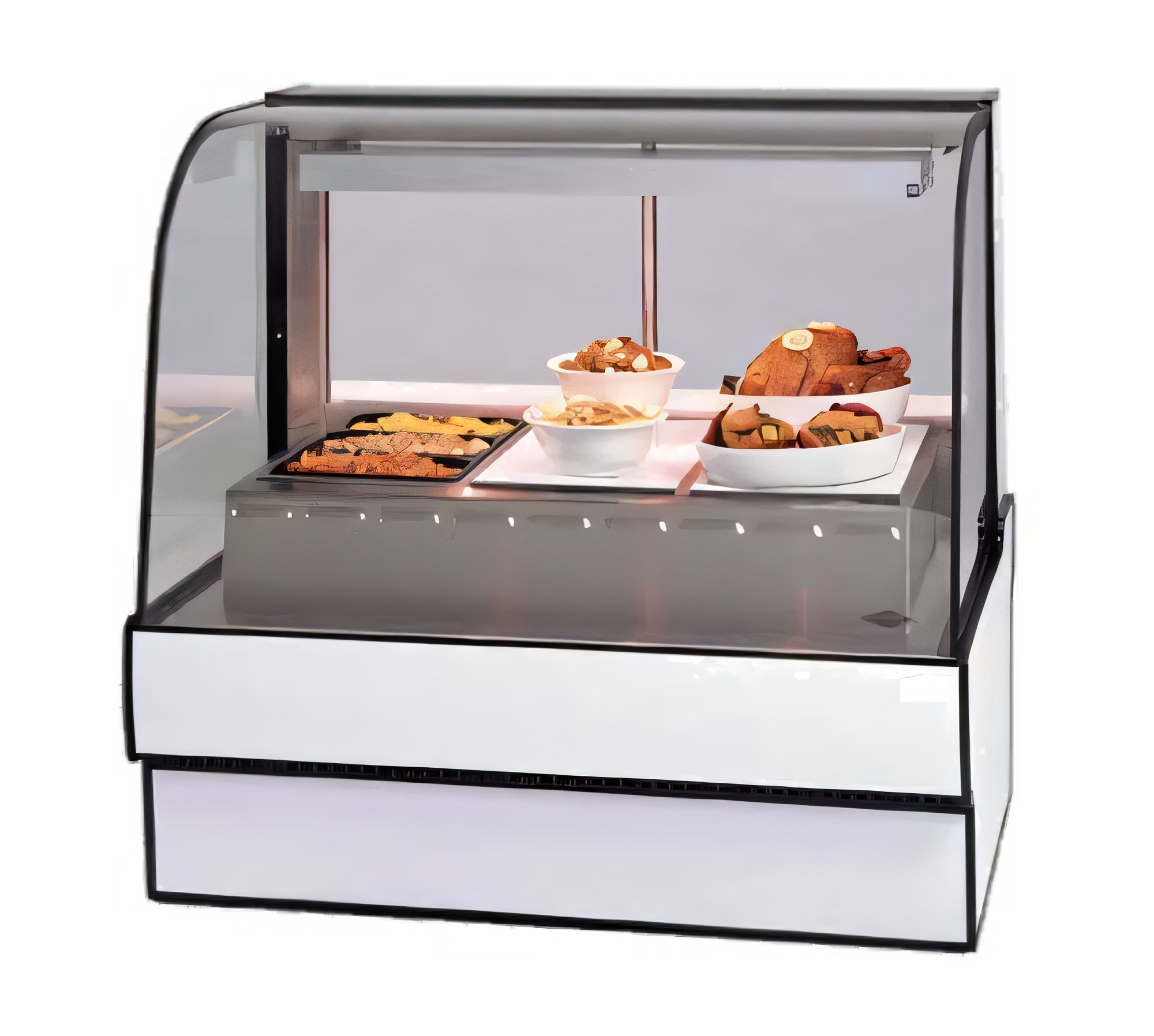

Federal Industries CG7748HD Curved Glass Series Hot Food Displays
Product Description
Five-well wet or dry heated merchandiser from Federal Industries. Showcase your signature entrées, sides, and comfort-food favorites at perfect serving temperature while drawing shoppers in with sleek, contemporary styling. The Federal Industries CG7748HD combines a curved, tilt-front Thermopane glass façade with powerful wet/dry holding technology, giving grocers, cafeterias, and delis a dependable hot case that's as eye-catching as it is easy to maintain. Designed to operate in ambient conditions up to 75 °F (24 °C) and 55 % relative humidity.
Performance & Presentation Highlights:
- The unit has five independently controlled stainless-steel wells, each capable of holding a full-size pan and featuring its own Calrod® heating element for precise temperature control.
- It can be operated wet or dry, without requiring a plumbing drain connection, providing flexible installation and menu options.
- The full-length overhead infrared heater and LED top lighting keep the food hot and appetizing throughout the day.
- The curved Thermopane tilt-front glass features a forced-air defogger to prevent condensation and tilts out for easy cleaning.
- The tempered glass sliding rear doors have adjustable moisture vents to maintain ideal humidity while allowing easy access for the operator.
- The removable rear wrapping board simplifies packaging and plating tasks.
- The durable stainless-steel deck and tempered glass ends ensure long-lasting, food-safe performance.
- The steel base is available with a choice of laminate and coordinated black trim, designed for seamless continuous line-ups.
- Adjustable leg levelers allow for a perfect fit on uneven floors.
- The unit is UL Safety and UL EPH Classified, ensuring compliance with sanitation standards.
Popular Options (sold separately):
- Choose from special base laminate or mirrored interior finishes to customize the appearance.
- Add a package shelf or a lighted package shelf for extra storage and visibility.
- Secure your cabinet with front glass and rear door locks.
- Incorporate scale or cutting-board platforms for convenient food preparation.
- Enhance merchandising with reflective ends or rear doors.
- Use a joining kit to create a continuous line-up of cabinets.
Product Specs
| Specification | Value |
|---|---|
| Overall Dimensions (W × D × H) | 77.13" × 35.31" × 48" (1959 × 897 × 1219 mm) |
| Number of Wells / Pan Capacity | 5 wells | 5 full-size steam table pans |
| Heat Type | Wet or dry with individual thermostats + top infrared heater |
| Electrical | 120/208-240 V, 60 Hz, 1-phase, 32.3 A, 3-wire plus ground |
| Lighting | LED top light |
| Shipping Weight | 800 lb (363 kg) |
| Agency Listings | UL Safety, UL EPH Classified (ANSI/NSF 4) |
| Warranty | 1-year parts & labor | 5-year compressor parts |
Features
| Specification | Value |
|---|---|
| Manufacturer | Federal Industries |
| Brand Name | Curved Glass Series |
| Certifications | UL, UL EPH Classified |
| Height | 48.0in |
| Width | 77.13in |
| Depth | 35.31in |
| Shipping Weight | 789.0lbs |
| Width (side - side) | 73" - 78" |
| Exterior Finish | specify exterior |
| Service Type | full service |
| Interior Finish | stainless steel interior |
| Intermediate Shelves | deck only |
| Front | curved glass |
| Specifications | Curved Glass Heated Deli Case, 77.13"W x 35.31"D x 48”H, wet or dry heat, (5) wells, independently controlled stainless steel heating wells each with a Calrod® heating element, Infrared top heater, curved Thermopane tilt-front glass, forced air front-glass defogger, LED top light, glass sliding rear doors with moisture vents, stainless steel deck, tempered glass ends, removable wrapping board, designed for continuous lineups, choice of laminate, black trim, No drain required, UL, UL EPH CLASSIFIED |
