Garland GN17FR34 Arctic Fire Undercounter & Worktop Refrigeration

Product Description

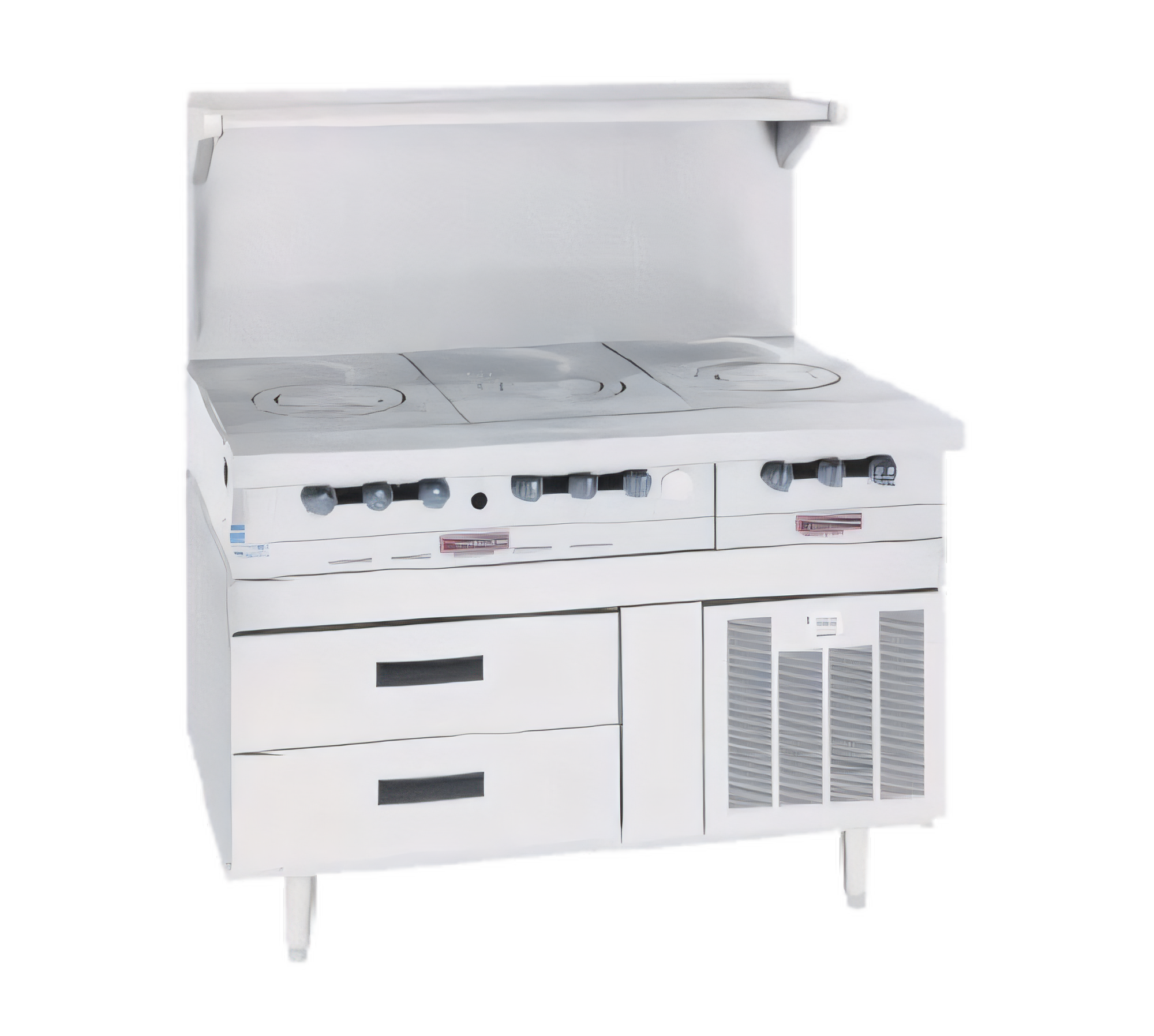

The Garland Master Series Compatible GN17FR34 model is a deep-freeze storage unit designed to be placed directly beneath any Garland Heavy-Duty Master Series modular top. This allows you to keep your frozen mise en place conveniently within reach, without sacrificing any valuable counter space in your kitchen. For more details on the warranty and coverage, please contact us.

Why you'll love it:

  • Remote refrigeration: The unit can be connected to a field-supplied condensing unit, providing whisper-quiet, heat-free operation on the cookline.
  • 2 self-closing drawers: The drawers have flush, center-mounted pulls, keeping your product protected and easily accessible.
  • Pan flexibility: Each drawer can hold (1) full-size 12 × 20 × 4" hotel pan (GN 1/1), allowing for a total of two pans per base.
  • Durable construction: The unit has a rugged all-stainless exterior and ABS interior sides, making it resistant to daily abuse.
  • Adjustable legs: The 6" adjustable stainless legs allow you to level the unit and match the Master Series toe-kick height.
  • Efficient sealing: The unit features field-replaceable Santoprene® magnetic gaskets, ensuring a tight, frost-free seal.
  • Convenient drainage: The factory-installed HFC-404A evaporator coil includes electric condensate removal, eliminating the need for a drain line.
  • Certified quality: The unit is cULus and NSF listed, with CE versions available.

Perfect for:

  • Keeping frozen proteins right under cooking equipment like griddles, ranges, or charbroilers.
  • Speeding up service in busy restaurants, hotels, and institutions with high customer volumes.
  • Kitchens already using remote refrigeration that need extra freezing capacity without increasing their floor space.

Product Specs

Specification Value
Exterior dimensions (W × D × H) 34" × 34" × 27" (864 × 864 × 686 mm)
Sections / drawers 1 section / 2 drawers
Pan capacity 2 × 12" × 20" × 4" hotel pans (GN 1/1)
Refrigeration system Remote (evaporator & controls factory-installed; condenser by others)
Refrigerant R-404A
Electrical 115 V / 60 Hz / 1-phase, 0.73 A, hard-wired
Material Stainless steel exterior front & sides; stainless interior top/rear/bottom; ABS interior sides
Legs 6" (152 mm) stainless, adjustable
Agency approvals cULus, NSF (CE model available)

Features

Specification Value
Manufacturer Garland
Brand Name Arctic Fire
Height 27.0in
Width 31" - 36" wide
Depth 32.75in
Shipping Weight 247.0lbs
Exterior Finish all stainless steel exterior
Drawer Qty 2 drawers
Refrigeration remote (refrigeration not included)
Specifications Arctic Fire Freezer Base, remote refrigeration, 34" W, one-section, (2) self-closing drawers with center pull handles, stainless steel exterior, 6" stainless steel legs (available only if order with Master Series modular cook tops) 115v/60/1-ph, .73 amps (Garland)
